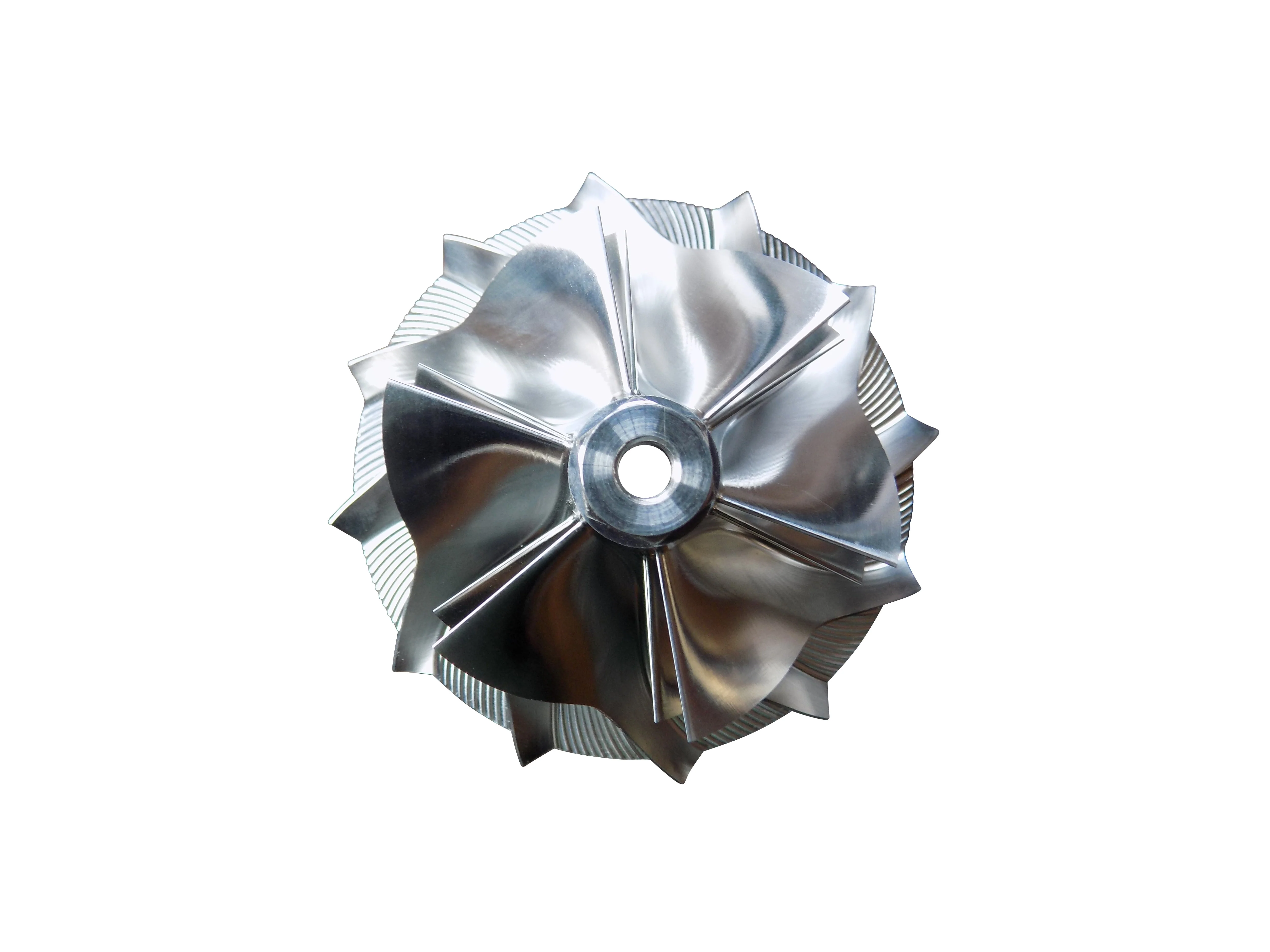

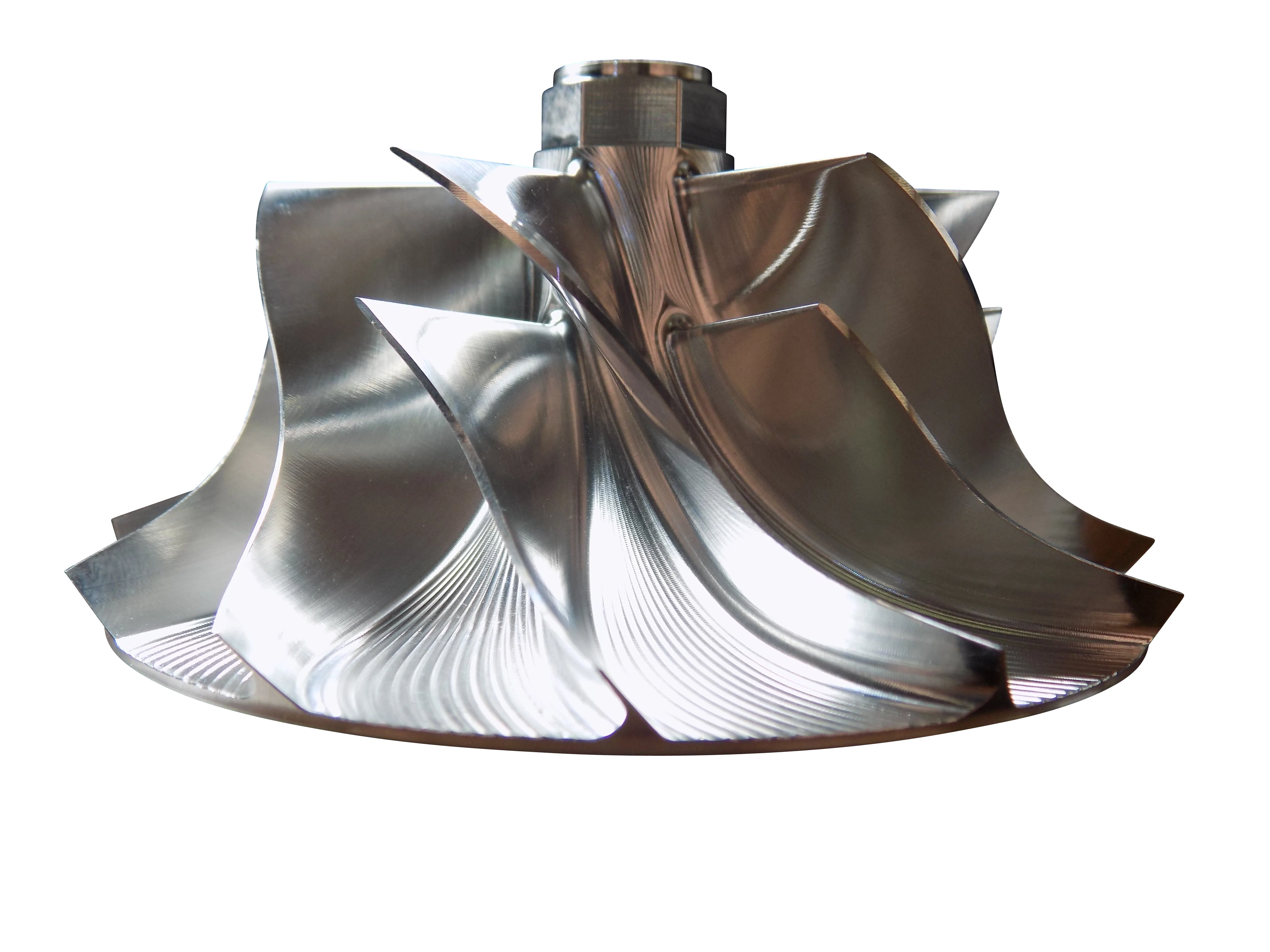

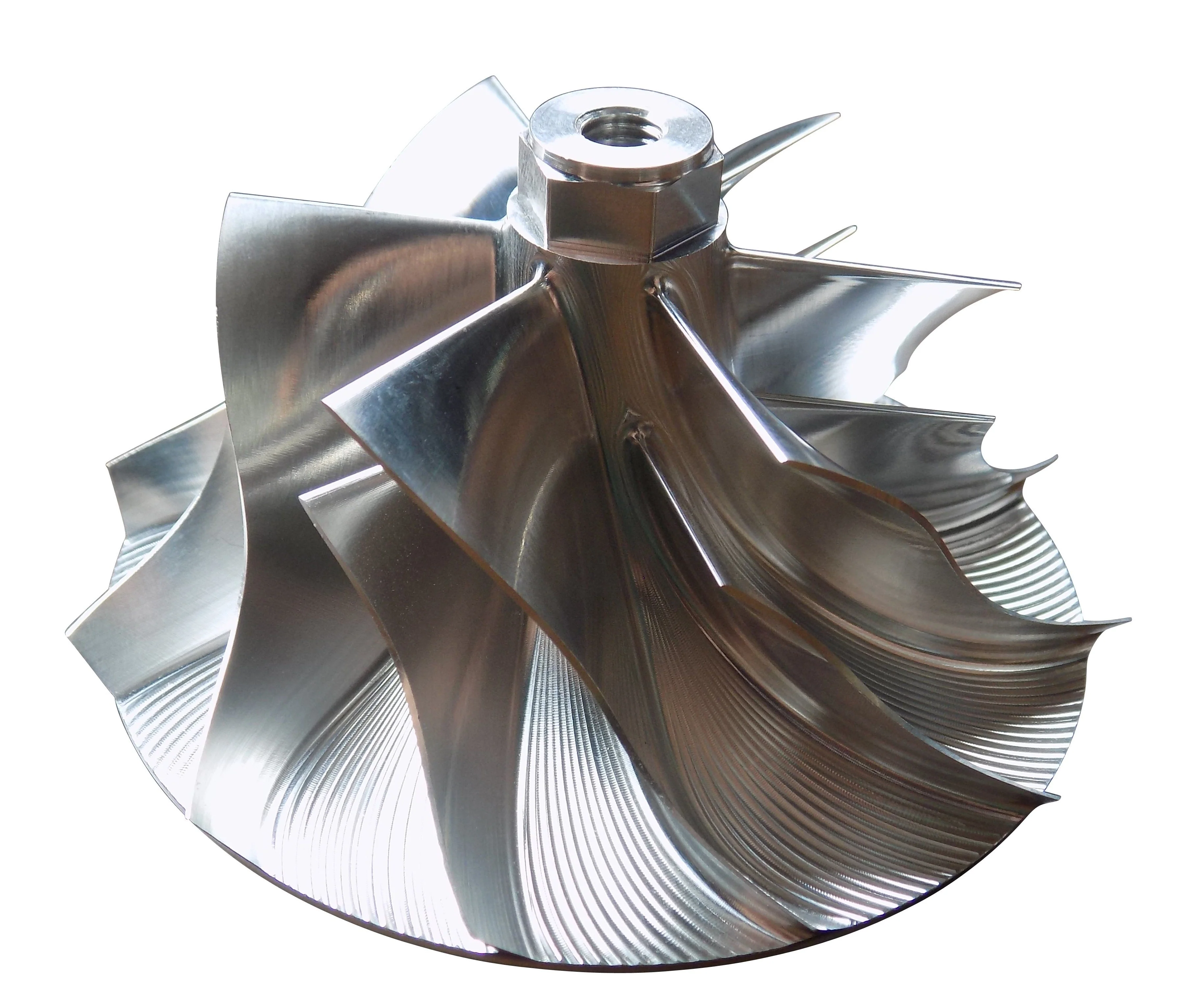

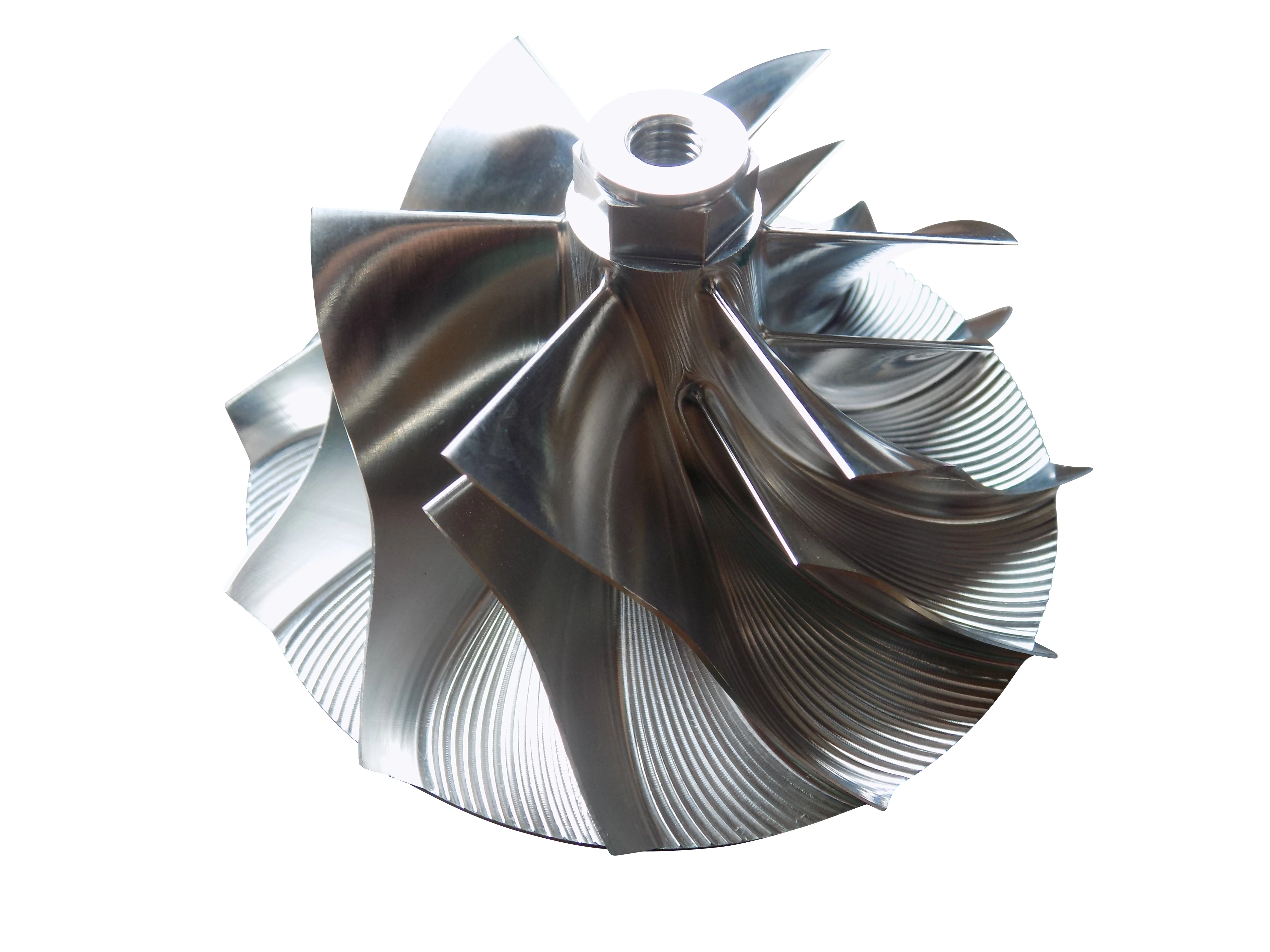

Extended Tip Billet Compressor Wheel for 2006 & 2007 Classic Chevy GMC Duramax 6.6l LBZ

Billet Compressor Specs
Inducer: 60.98 mm
Exducer Base: 88.25 mm
Extended Tip: 94 mm
Primary Tip Height: 42 mm
Secondary Tip Height: 30 mm
Weight: 142 Grams
Nose Width: 14 mm Hex
Blades: 6/6

Extended Tip
Pre-balanced
Reinforced Blade Base
Slim Nose Increases Blade Size
Larger Blades for Increased Flow
Increased Throttle Response

This 6/6 compressor wheel was selected for best all-around performance. The 6/6 design will produce more turbo whistle when compared to the stock design. When building a turbo there’s never a perfect choice for the compressor wheel. If the turbo must have extremely fast spooling characteristics we would recommend a 11/0 blade configuration. On the other hand if the turbo must have optimum performance at high engine/turbo rpms we would recommend fewer blades such as a 4/4 blade configuration. This is because at higher rpms more primary blades tend to get in the way rather than pulling in more air. Thus why a 6/6 design provides the best combination of both designs.

Note: The threads on the compressor wheel are left hand. Turn left to tighten and right to loosen. Torque specification: 10 Ft-Lbs with blue thread locker.

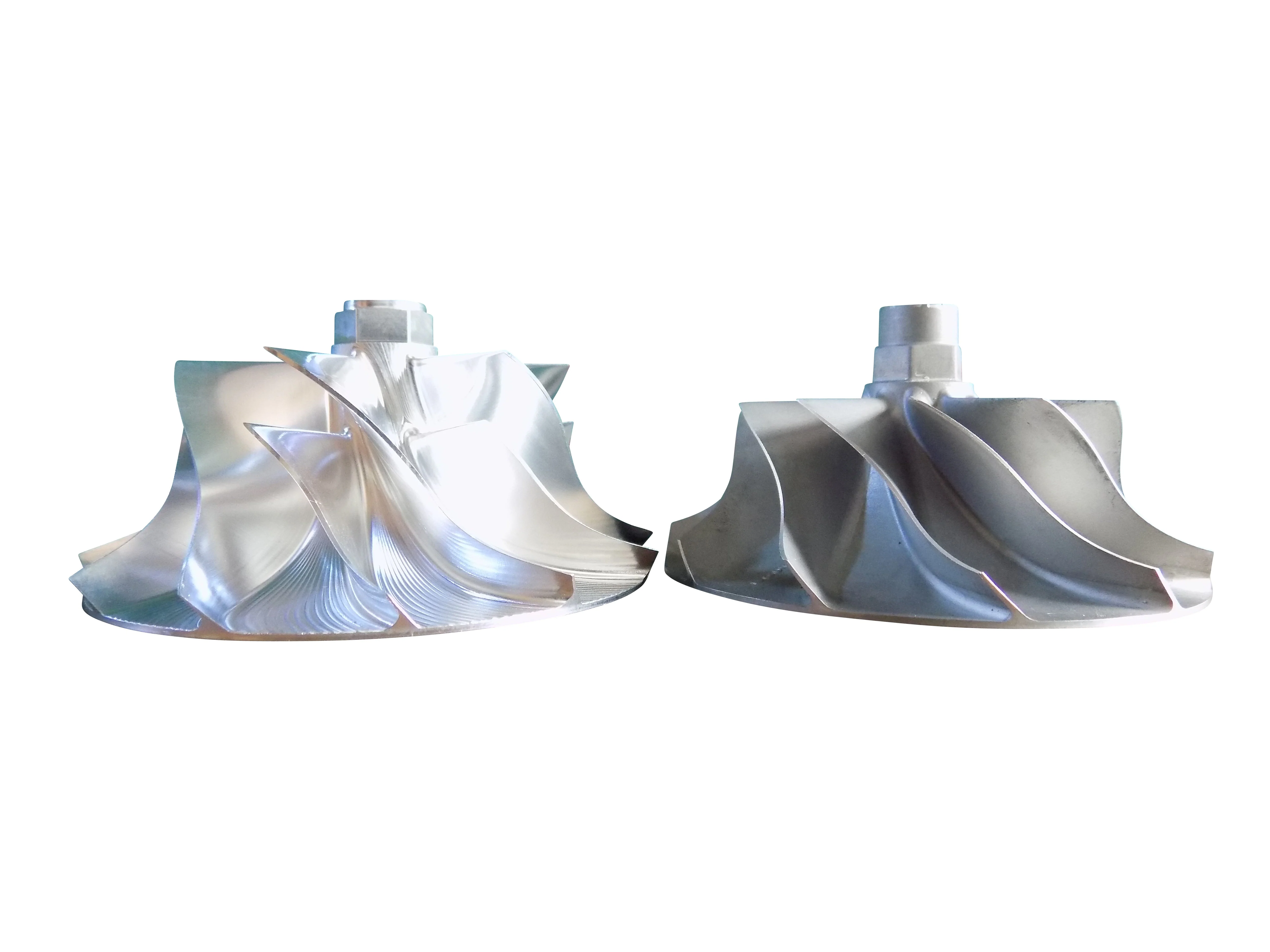

OEM Compressor Specs
Inducer: 60.9 mm
Exducer: 88.0 mm
Primary Tip Height: 36 mm
Secondary Tip Height: N/A
Weight: 162 Grams
Nose Width: 16 mm Hex
Blades: 11/0

Fits: 2006 Chevy & GMC 2500 & 3500 applications with the 6.6l LBZ Duramax diesel engine and 2007 Classic Models. Please be sure your OEM compressor wheel inducer measures 60.9 mm.
