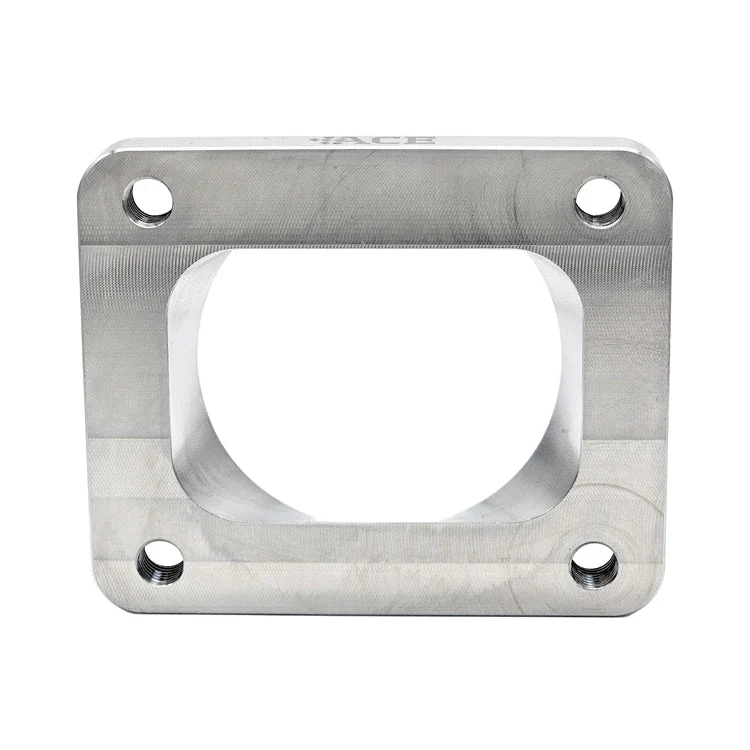

Transition Turbo Flange - Undivided T4 to Single 2-1/2" NPS (2.875" OD) - 304 Stainless
304 STAINLESS BILLET TRANSITION TURBO FLANGE - UNDIVIDED T4 TO SINGLE 2-1/2" NPS (2.875" ID)
The Ace Race Parts brand of Transition Turbo FlangesĀ is designed and precision CNC machined to offer the smoothest possible transitionĀ from a T4 open housing to 2-1/2" nominal pipe size, or 2.875" outside diameter tube size material. Each flange is precision machined from solid 304 Stainless billetĀ andĀ is designed toĀ eliminate warping and deformation during the welding process by ensuring that the base flange thickness measures 0.500" thick.Ā Eliminate costly and time-consuming fabrication work by using our precision machined transition flanges!
FEATURES
-
Undivided T4 to Single 2.875" Diameter Transition
- Precision CNC Machined from Solid 304 Stainless Steel
- Extremely Smooth Transition, Compact Design
- Eliminate Unnecessary Fabrication Work
- Will Not Warp or Deform!
- M10 x 1.5 Threaded Bolt Holes
- 3.250" x 2.750" Bolt Pattern
This Undivided T4 Turbo Inlet Flange has a 3.250" x 2.750" bolt pattern and is compatible with the following applications: Generic T4 Undivided Turbine Inlets. Please be sure to verify the bolt pattern of your existing application before purchasing this Undivided T4 Turbine Inlet Flange.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Transition Turbo Flange - Undivided T4 to Single 2-1/2" NPS (2.875" OD) - 304 Stainless
Transition Turbo Flange - Undivided T4 to Single 2-1/2" NPS (2.875" OD) - 304 Stainless
304 STAINLESS BILLET TRANSITION TURBO FLANGE - UNDIVIDED T4 TO SINGLE 2-1/2" NPS (2.875" ID)
The Ace Race Parts brand of Transition Turbo FlangesĀ is designed and precision CNC machined to offer the smoothest possible transitionĀ from a T4 open housing to 2-1/2" nominal pipe size, or 2.875" outside diameter tube size material. Each flange is precision machined from solid 304 Stainless billetĀ andĀ is designed toĀ eliminate warping and deformation during the welding process by ensuring that the base flange thickness measures 0.500" thick.Ā Eliminate costly and time-consuming fabrication work by using our precision machined transition flanges!
FEATURES
-
Undivided T4 to Single 2.875" Diameter Transition
- Precision CNC Machined from Solid 304 Stainless Steel
- Extremely Smooth Transition, Compact Design
- Eliminate Unnecessary Fabrication Work
- Will Not Warp or Deform!
- M10 x 1.5 Threaded Bolt Holes
- 3.250" x 2.750" Bolt Pattern
This Undivided T4 Turbo Inlet Flange has a 3.250" x 2.750" bolt pattern and is compatible with the following applications: Generic T4 Undivided Turbine Inlets. Please be sure to verify the bolt pattern of your existing application before purchasing this Undivided T4 Turbine Inlet Flange.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
304 STAINLESS BILLET TRANSITION TURBO FLANGE - UNDIVIDED T4 TO SINGLE 2-1/2" NPS (2.875" ID)
The Ace Race Parts brand of Transition Turbo FlangesĀ is designed and precision CNC machined to offer the smoothest possible transitionĀ from a T4 open housing to 2-1/2" nominal pipe size, or 2.875" outside diameter tube size material. Each flange is precision machined from solid 304 Stainless billetĀ andĀ is designed toĀ eliminate warping and deformation during the welding process by ensuring that the base flange thickness measures 0.500" thick.Ā Eliminate costly and time-consuming fabrication work by using our precision machined transition flanges!
FEATURES
-
Undivided T4 to Single 2.875" Diameter Transition
- Precision CNC Machined from Solid 304 Stainless Steel
- Extremely Smooth Transition, Compact Design
- Eliminate Unnecessary Fabrication Work
- Will Not Warp or Deform!
- M10 x 1.5 Threaded Bolt Holes
- 3.250" x 2.750" Bolt Pattern
This Undivided T4 Turbo Inlet Flange has a 3.250" x 2.750" bolt pattern and is compatible with the following applications: Generic T4 Undivided Turbine Inlets. Please be sure to verify the bolt pattern of your existing application before purchasing this Undivided T4 Turbine Inlet Flange.
