Engine Coolant Filter Kit for 2011-2016 6.7l Ford Powerstroke
Keep the cooling system clean of debris with our 6.7l coolant filtration kit!

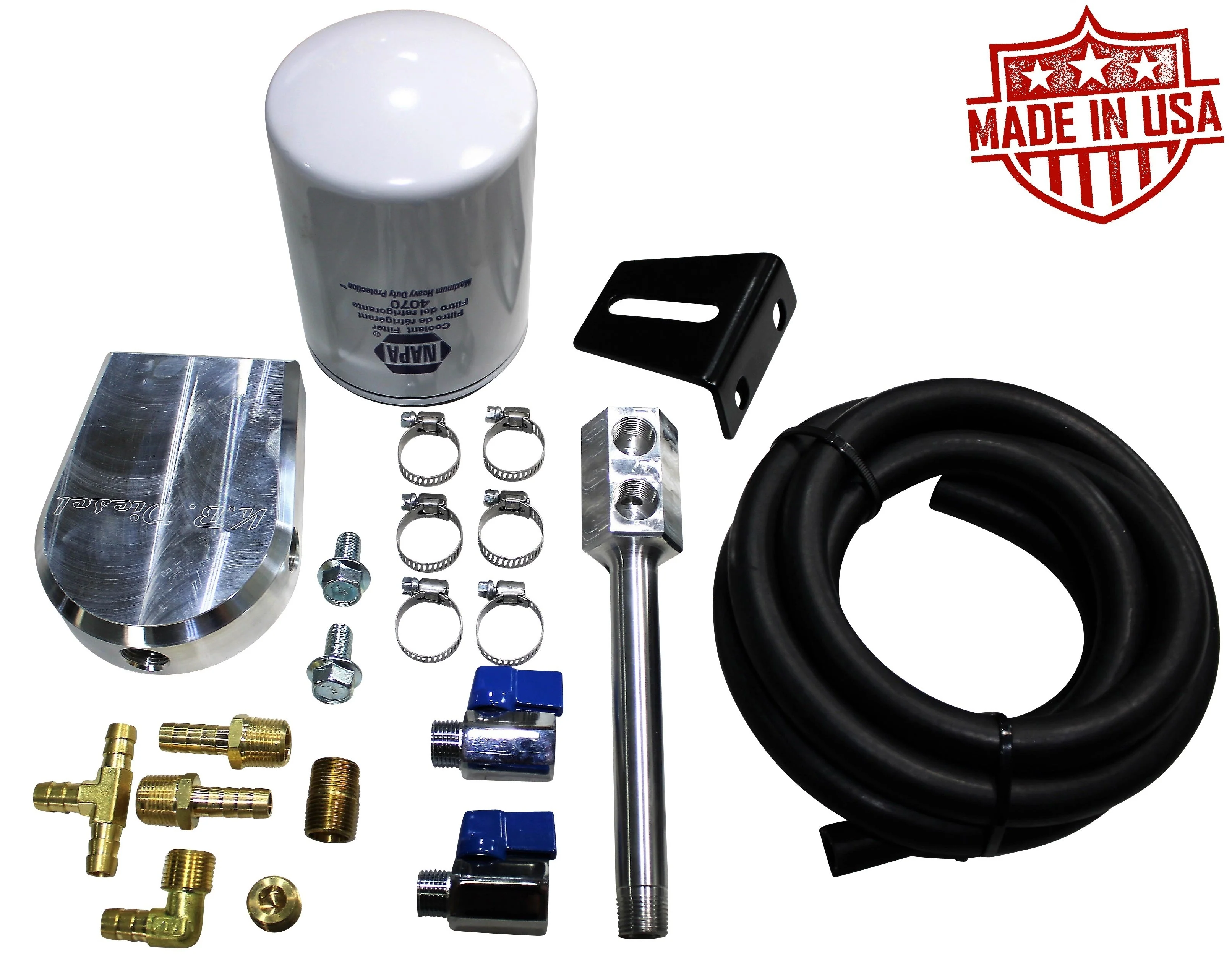

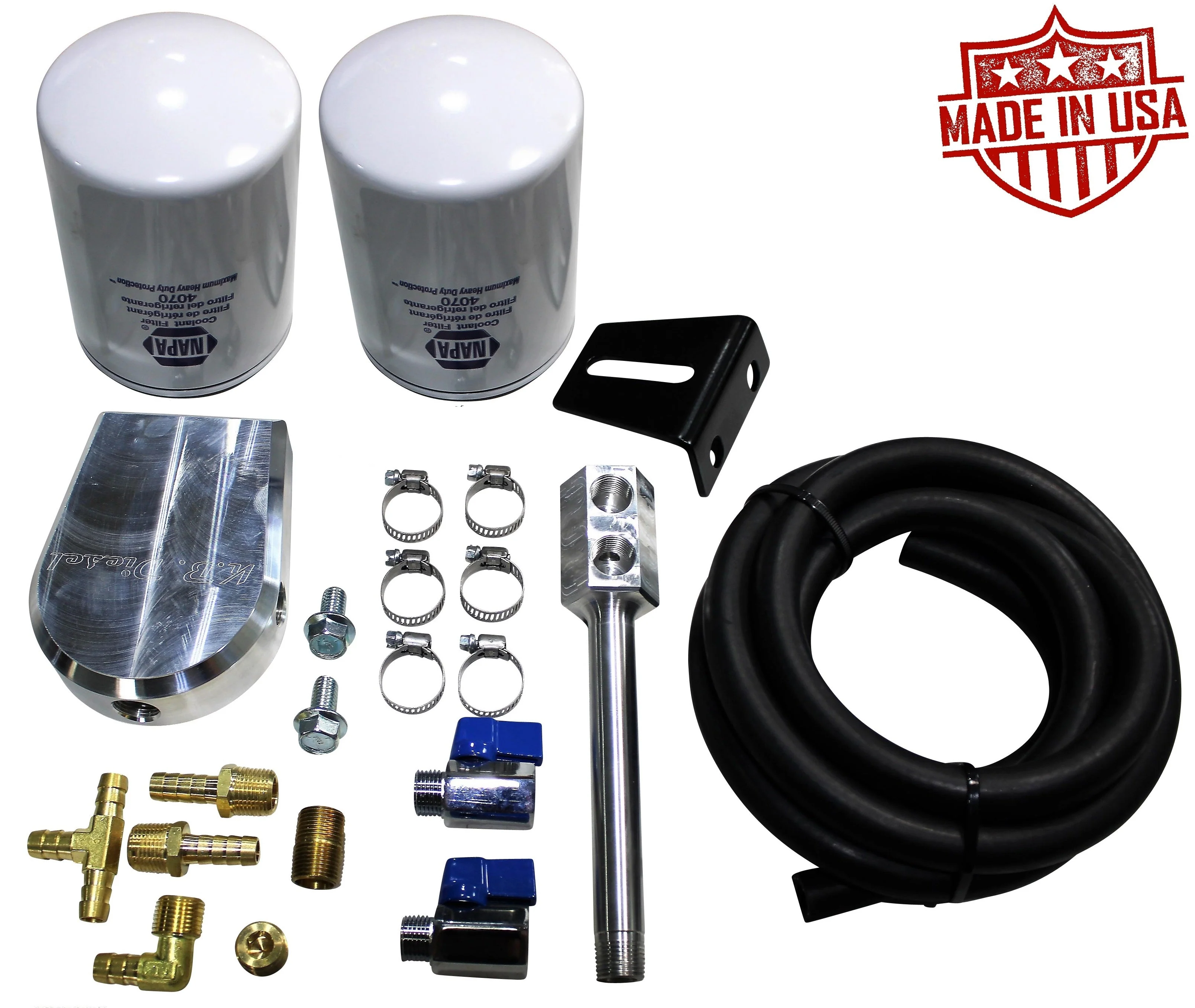

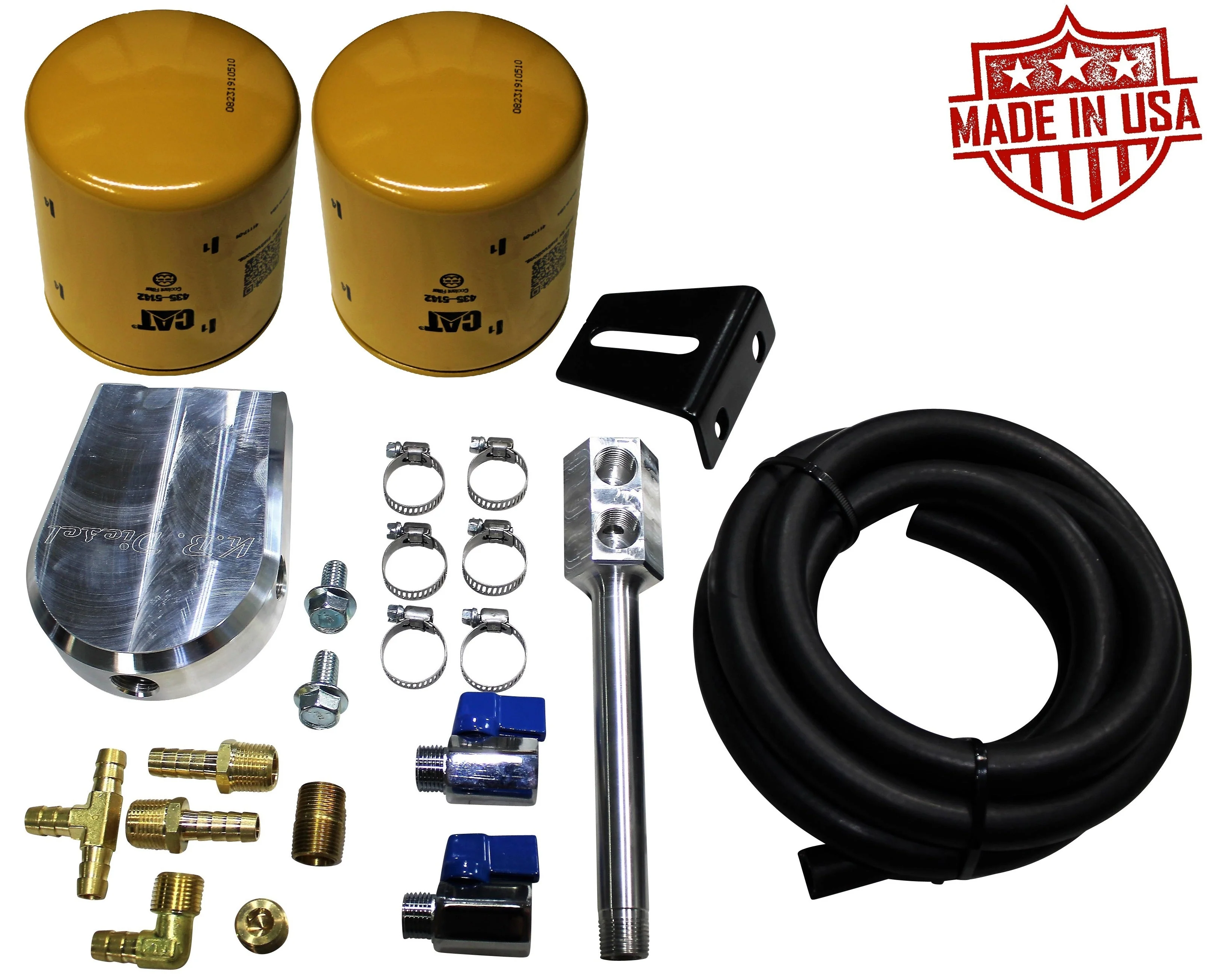

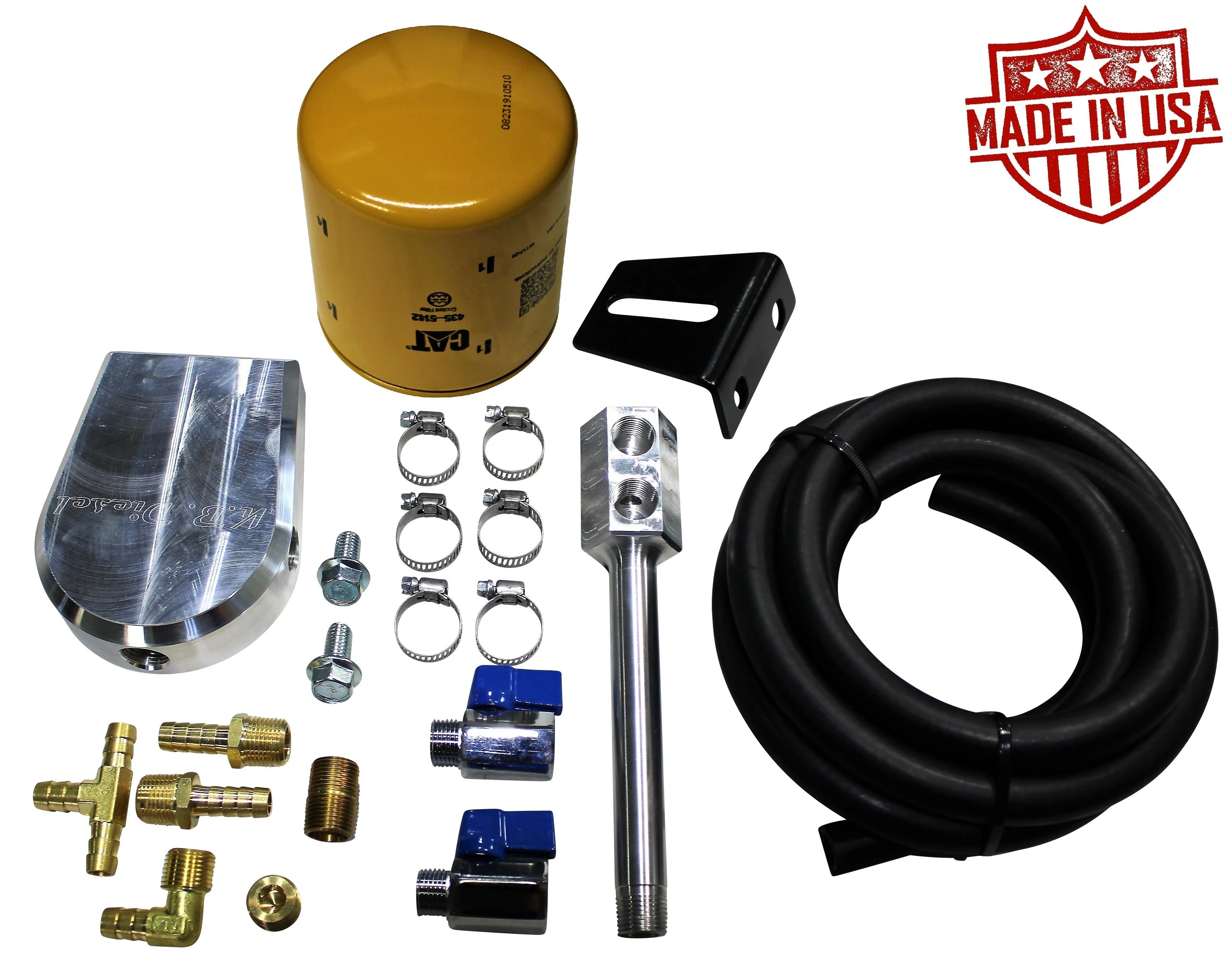

Includes:

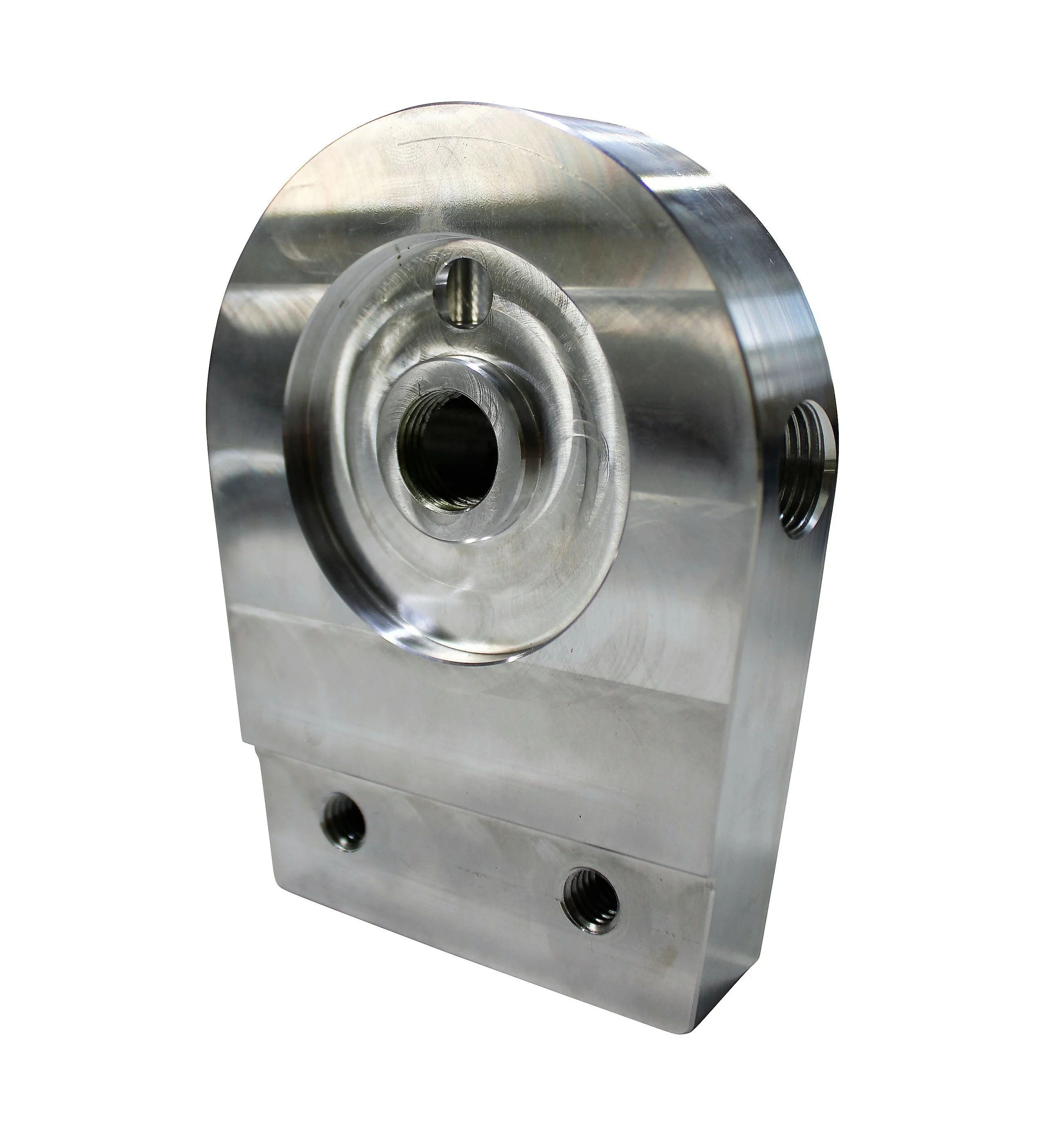

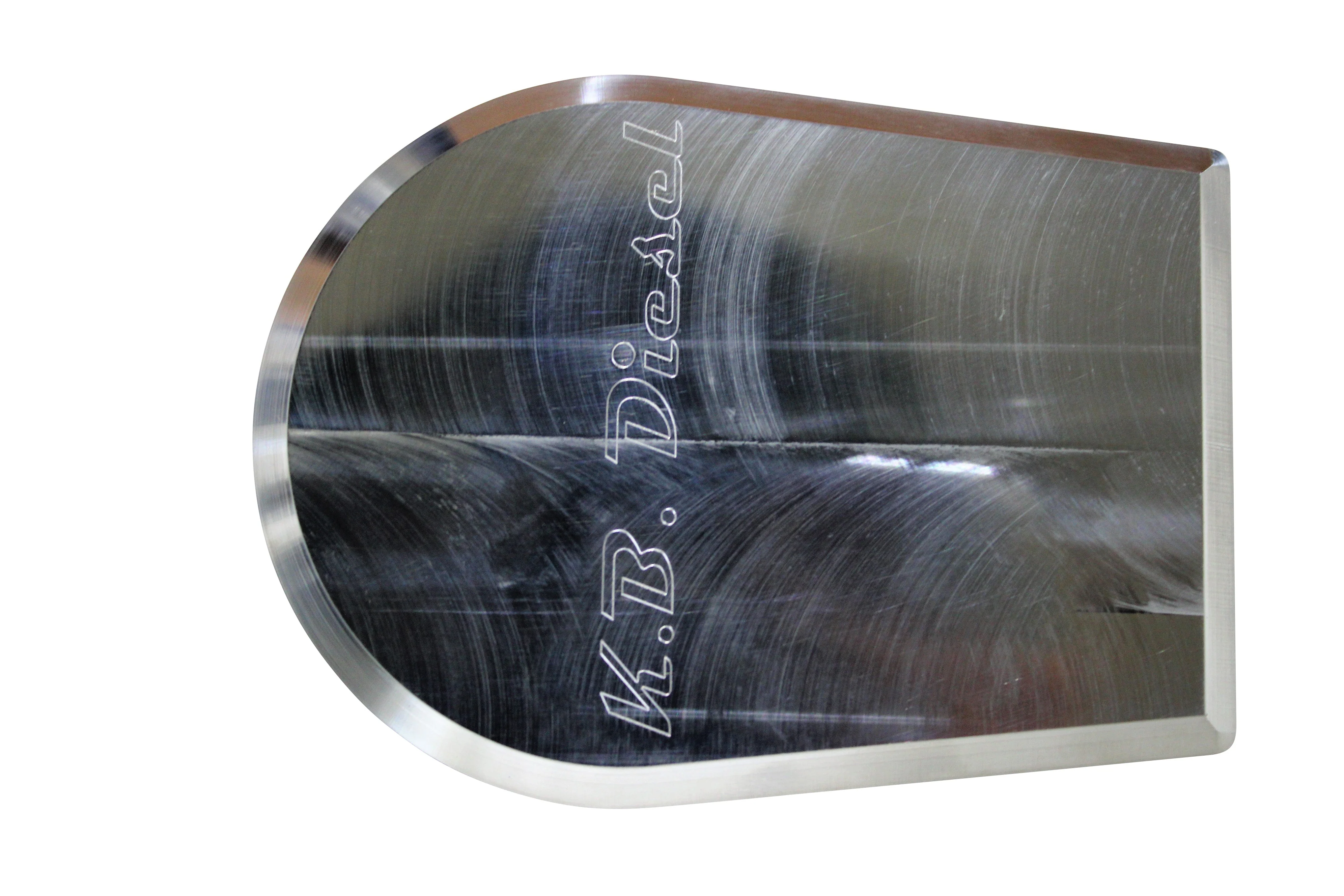

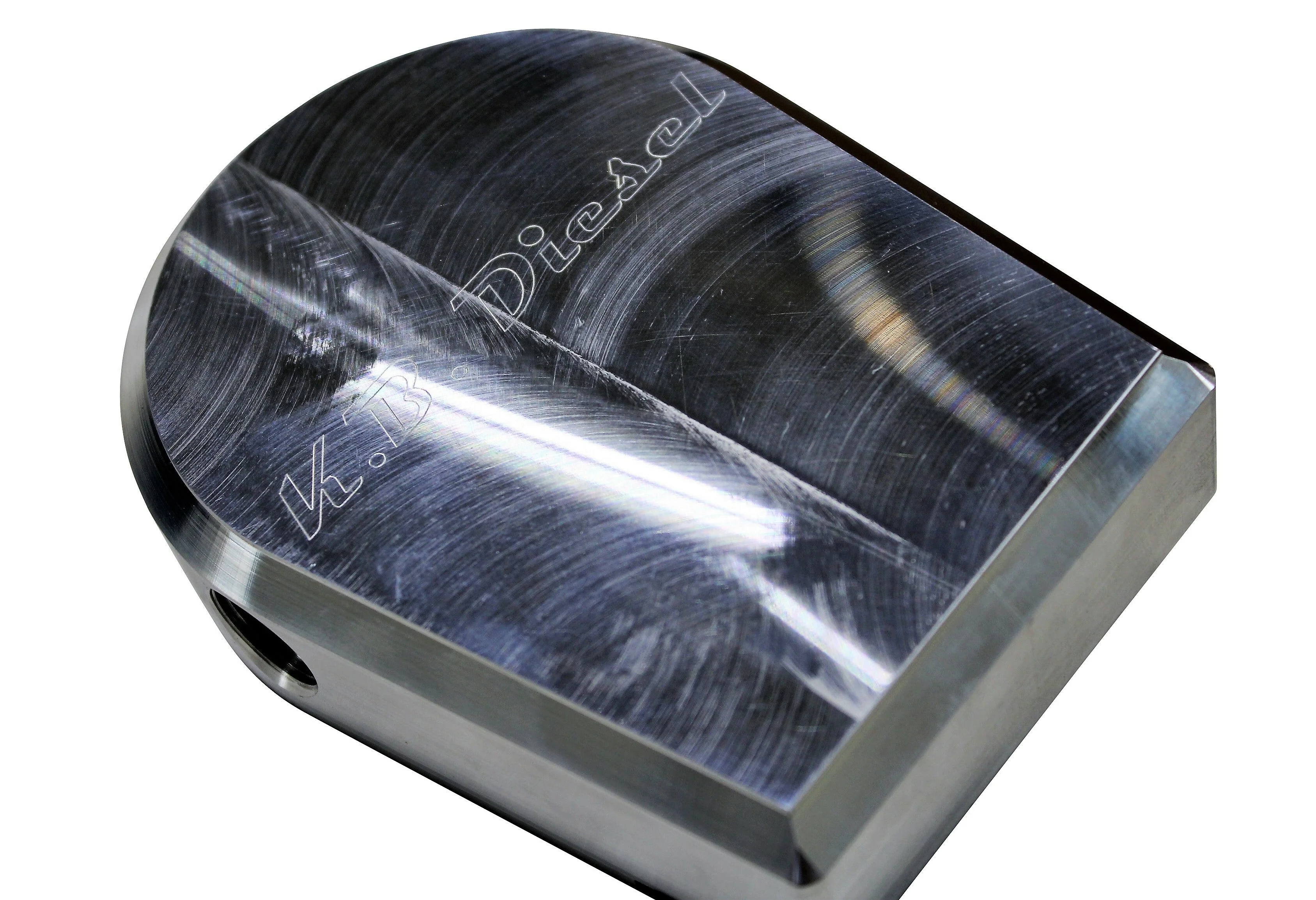

1. Coolant Filter Base (Made in USA)
1. Mounting Bracket (Made in USA)
1. Billet Stand off manifold (Made in USA)
1. Option of Coolant Filter(s)
1. Filter Nipple
9.75' of 3/8" Coolant Hose
2. 3/8" Ball Valves
6. #6 Hose Clamps
2. Brass 3/8 MPT to 3/8 Barb
1. Brass 90Ā° MPT to 3/8 Barb
1. Brass Tee 3/8-3/8-3/8
2. 3/8 Mounting Bolts
1. 3/8 Countersunk Hex Plug
List of filters that can be used on our base:
NAPA: 4070, 4073, 4069
Wix: 24070, 24073, 2469
CAT: 435-5142
Fits: 2011-2016 Ford 6.7l Powerstroke equipped F250 & F350
Installation Notes:
Mounting Location: Mounts on drivers side bumper/core support mounting ear
Return Hose: Side of filter mount to 3/8" hose on coolant overflow tank
Supply Hose: End of filter mount (90Ā° from return hose) to billet stand off manifold
Billet Stand Off Manifold: Install next to thermostat, install in place of sensor and reinstall sensor on lower manifold port.
