VW MKI MKII GTI 1.8/2.0L 8v 118mm head stud +MLS decompression Head Gasket 3.4mm

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

VW MKI MKII GTI 1.8/2.0L 8v 118mm head stud +MLS decompression Head Gasket 3.4mm

VW MKI MKII GTI 1.8/2.0L 8v 118mm head stud +MLS decompression Head Gasket 3.4mm

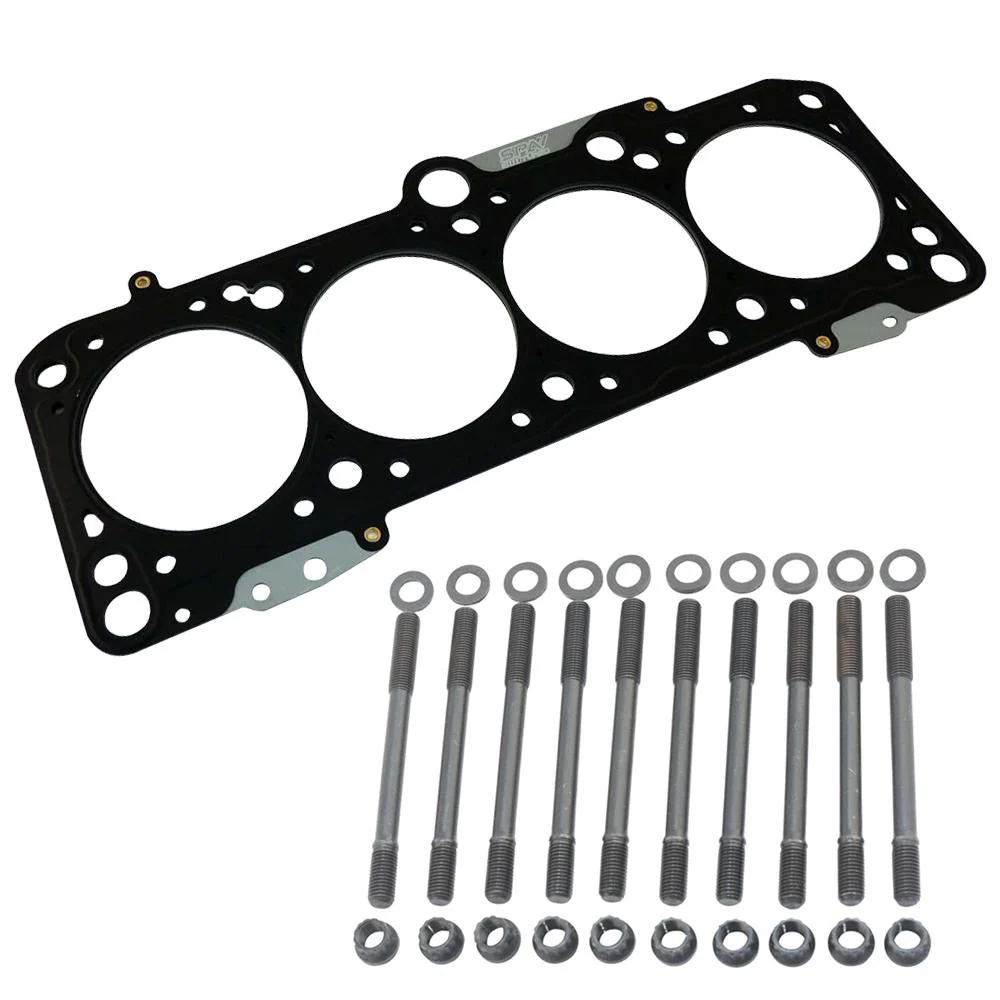

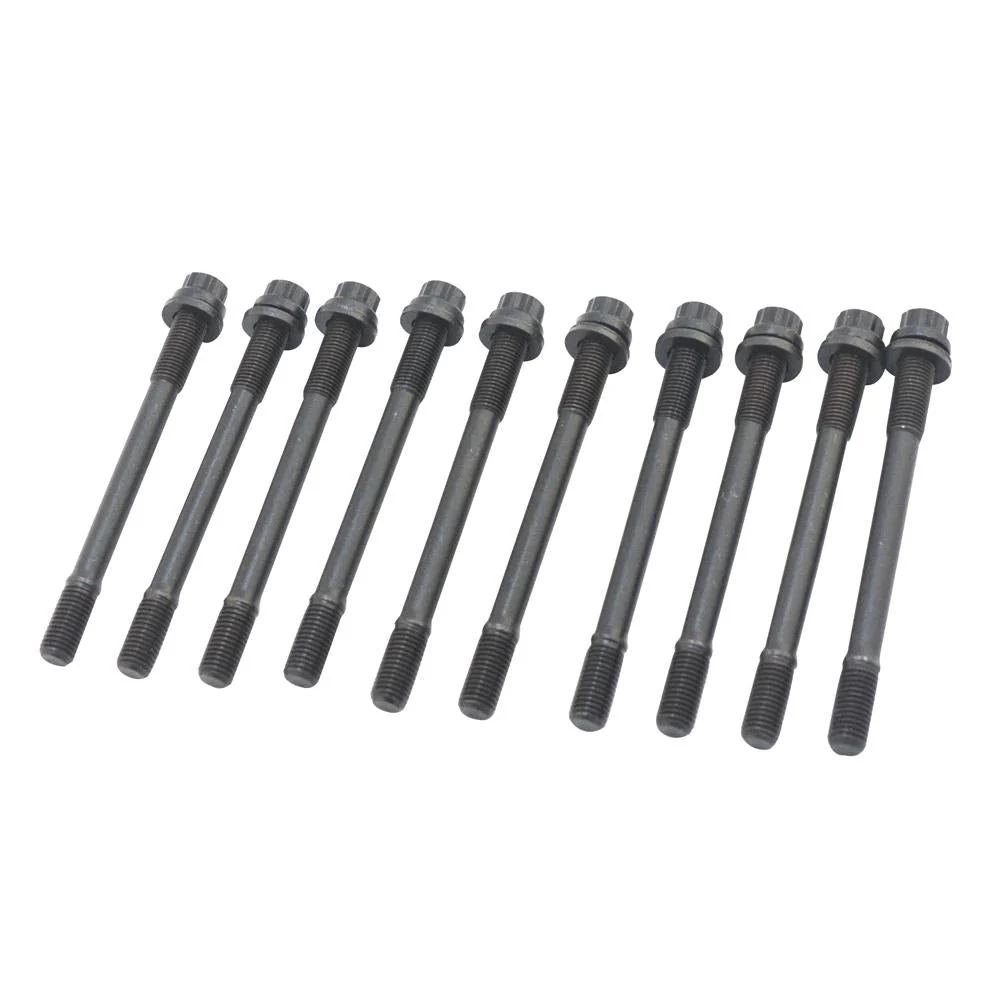

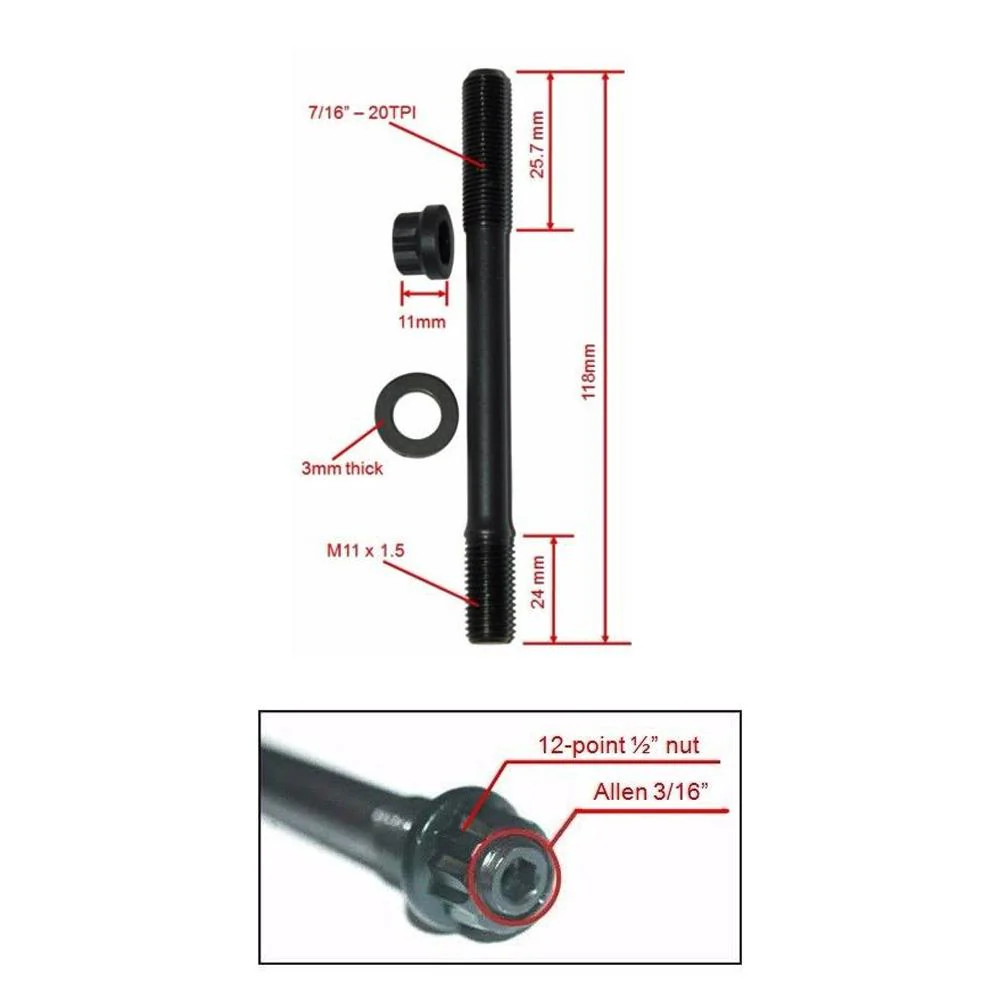

  • VW cylinder head stud set, available in either 118mm (this item) Ā or Ā  136mm length for taller blocks.Ā
  • They will fit earlier and old style VW 8V cylinder heads.

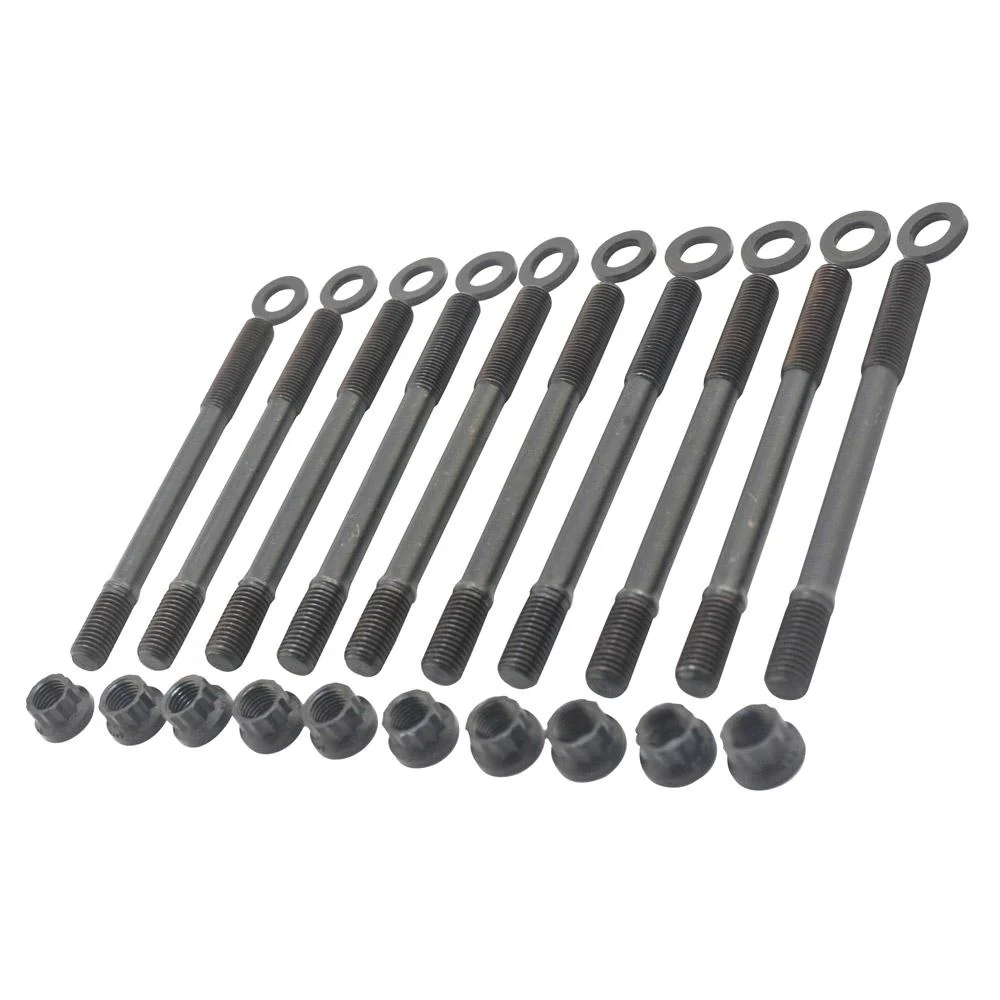

  • The set contains 10 Studs, Ā 10 washers and 12 point nuts, (you will need a 1/2 or 13mm 12 point socket).
  • The studs are for M11 threads, please confirm with your OEM bolts before purchase.
  • These will replace 93mm OEM bolts.
  • Maximum Torque - 72 ft/lb

Ā

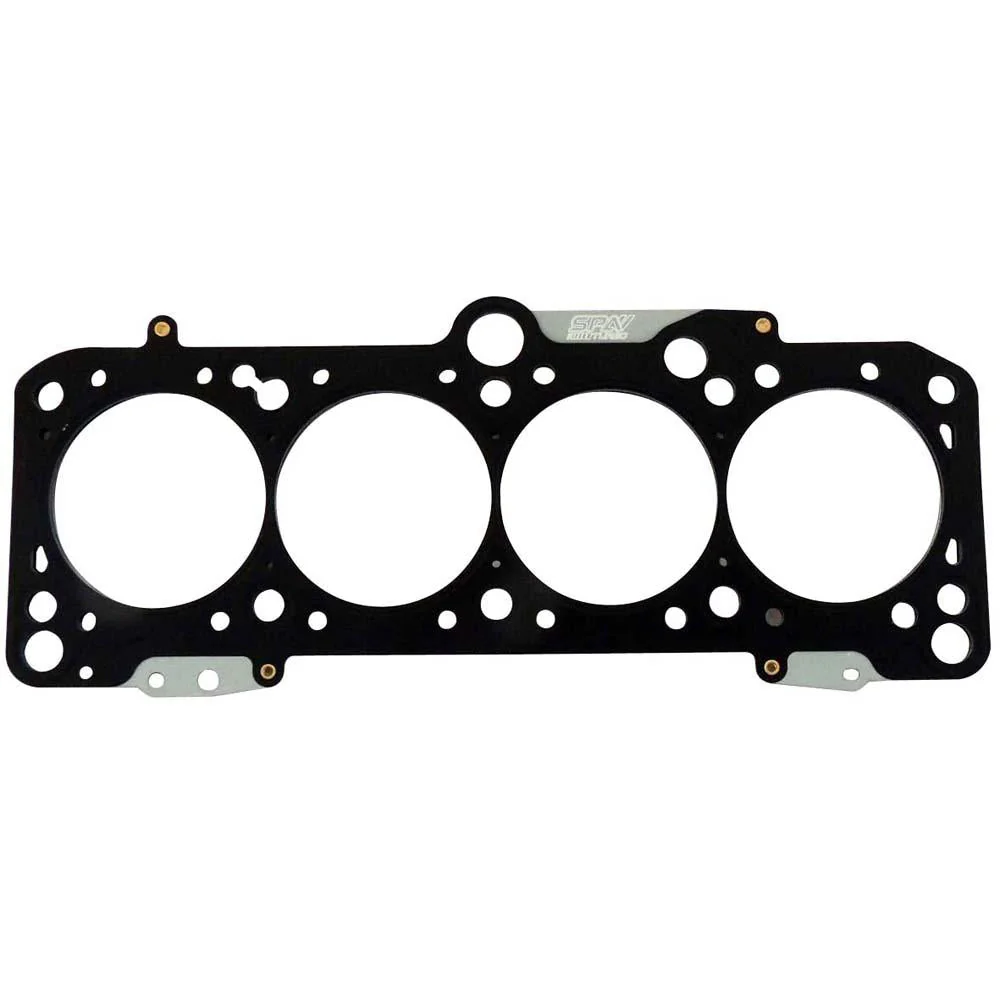

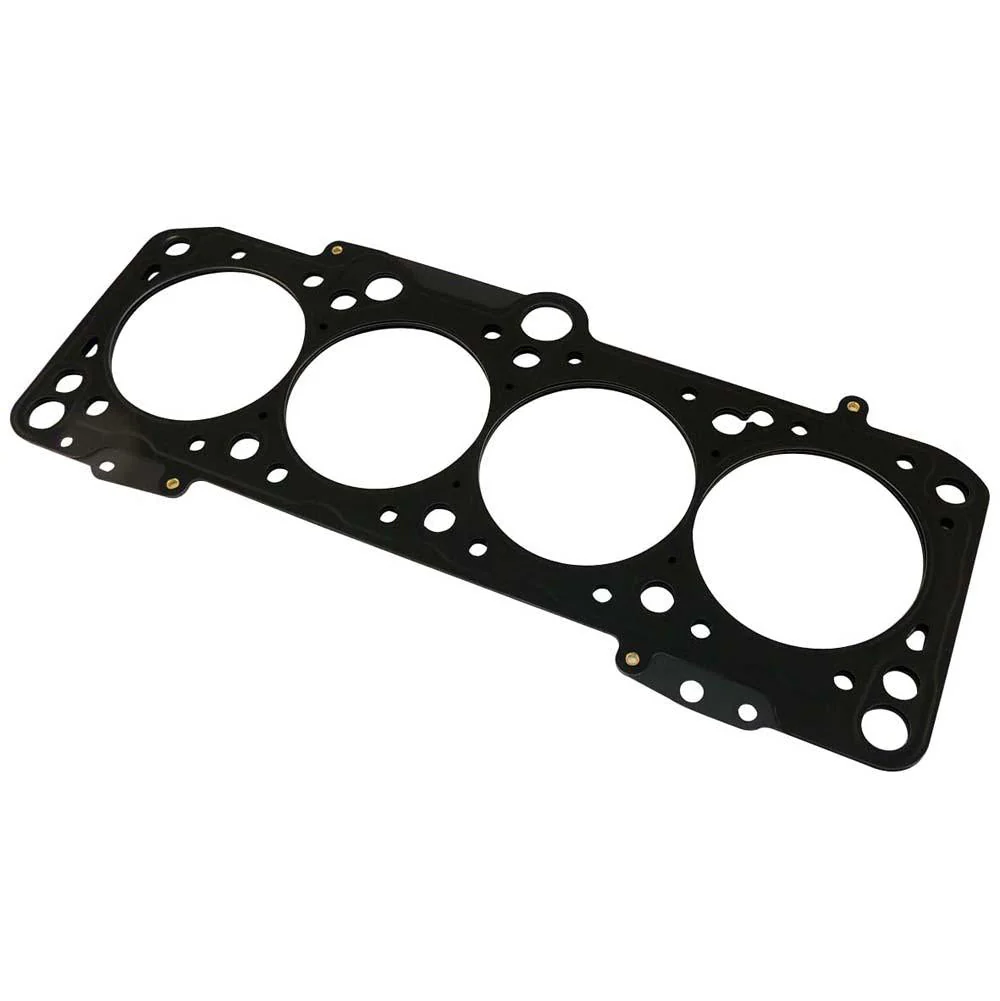

  • Special cylinder head gasket for turbo conversion
  • With this special Turbo multilayer metal cylinder head gasket
  • The compression reduction is already integrated in the seal.
  • (Ground and coated)
  • Will accept pistons up to 84.00mm overbored sized, can be used with smaller bores with no problem too.
  • Compression ratio NEW will depend on the engine used
  • Manufacturer: SPA TURBO
  • Engine Code: All 2 litersĀ Ā Ā Blocks of VW 8V and 16V (some small modifications may be necessary in some cases)
  • 9A, 6A, ACE, 2E, ADY, ACX ABF, AGG, AKR, ABA, ABBOT, ADW, AAD, AAE, CAST OFF, 3A, SD.
  • Similar to OE numbers/Comparable numbers of manufacturers
VW: 048103383B
VW:Ā 053103383
VW:Ā 053103383A
VW:Ā 053103383B
VW:Ā 53103383 Ā  Ā  Ā  Ā  Ā  Ā
ELWIS ROYAL: 0056010
PAYEN : BT810
MEGA CAR: 101030383048B
CORTECO: 414604P
ELRING: 915.590
ELRING: 915.599
FEBI BILSTEIN: 15558
GLAZIER: 50151
GOETZE: 30-027257-20
REINZ: 61-28290-00
SPESSO: 21194/7620
SWAG: 32 91 5558
REINZ: 61-29305-00
  • Available in 1.5mm, 2.0mm and 2.5mm thickness
  • We're the Ā VW Turbo experts!Ā

$122.70

Original: $409.01

-70%
VW MKI MKII GTI 1.8/2.0L 8v 118mm head stud +MLS decompression Head Gasket 3.4mmā€”

$409.01

$122.70
