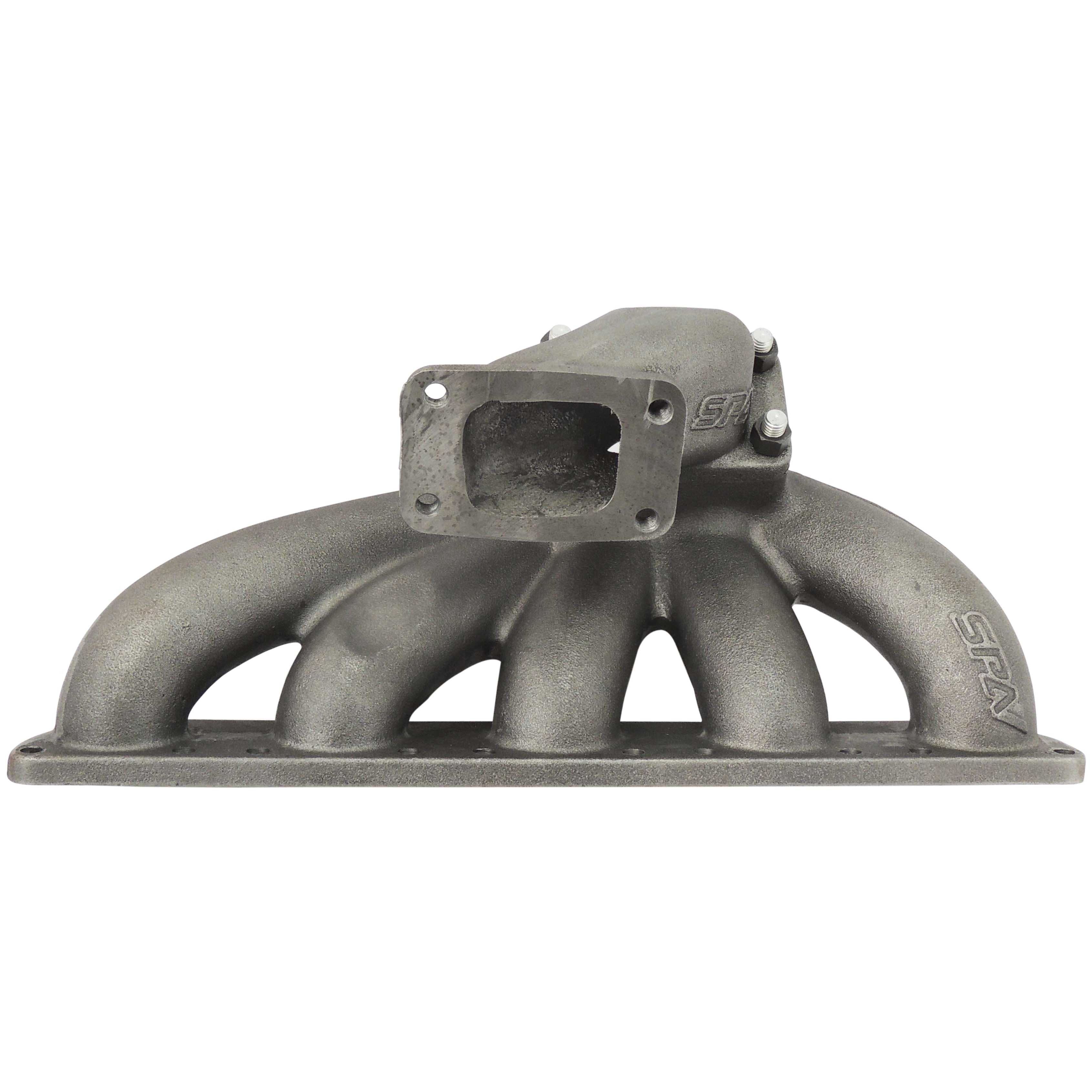

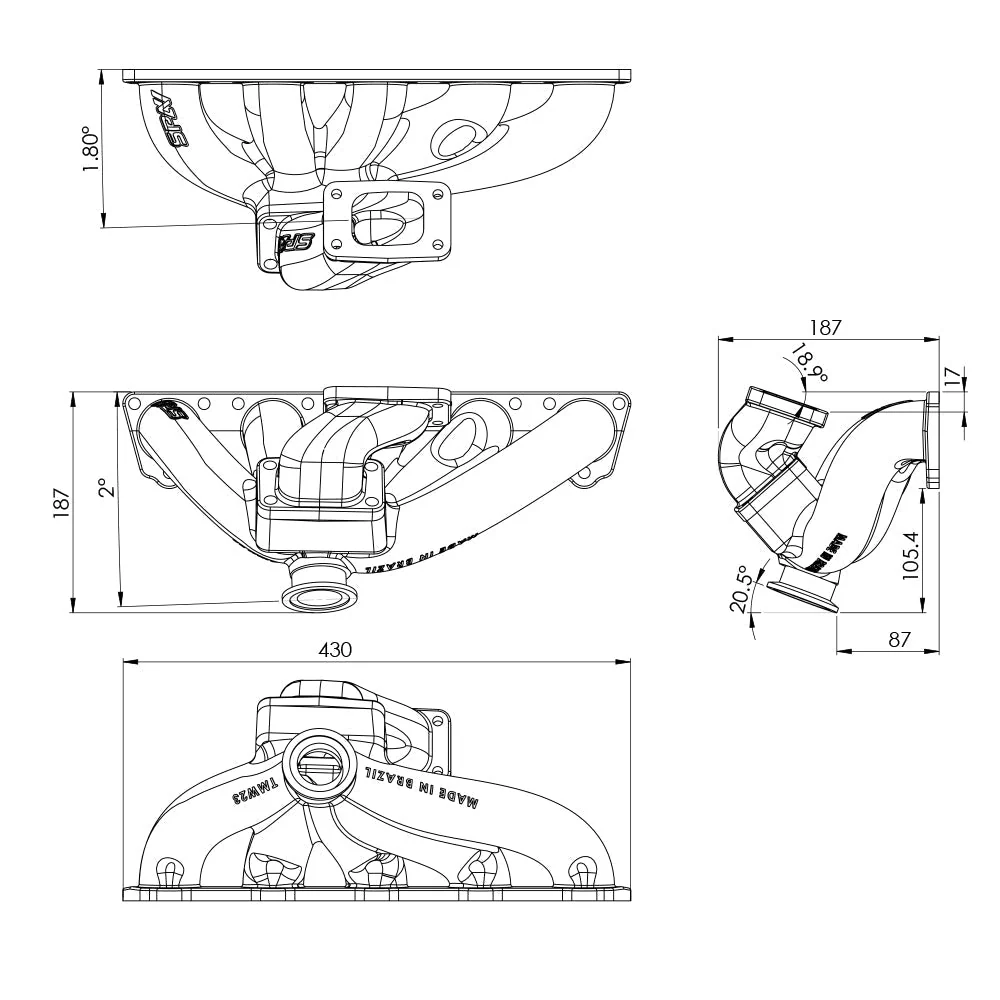

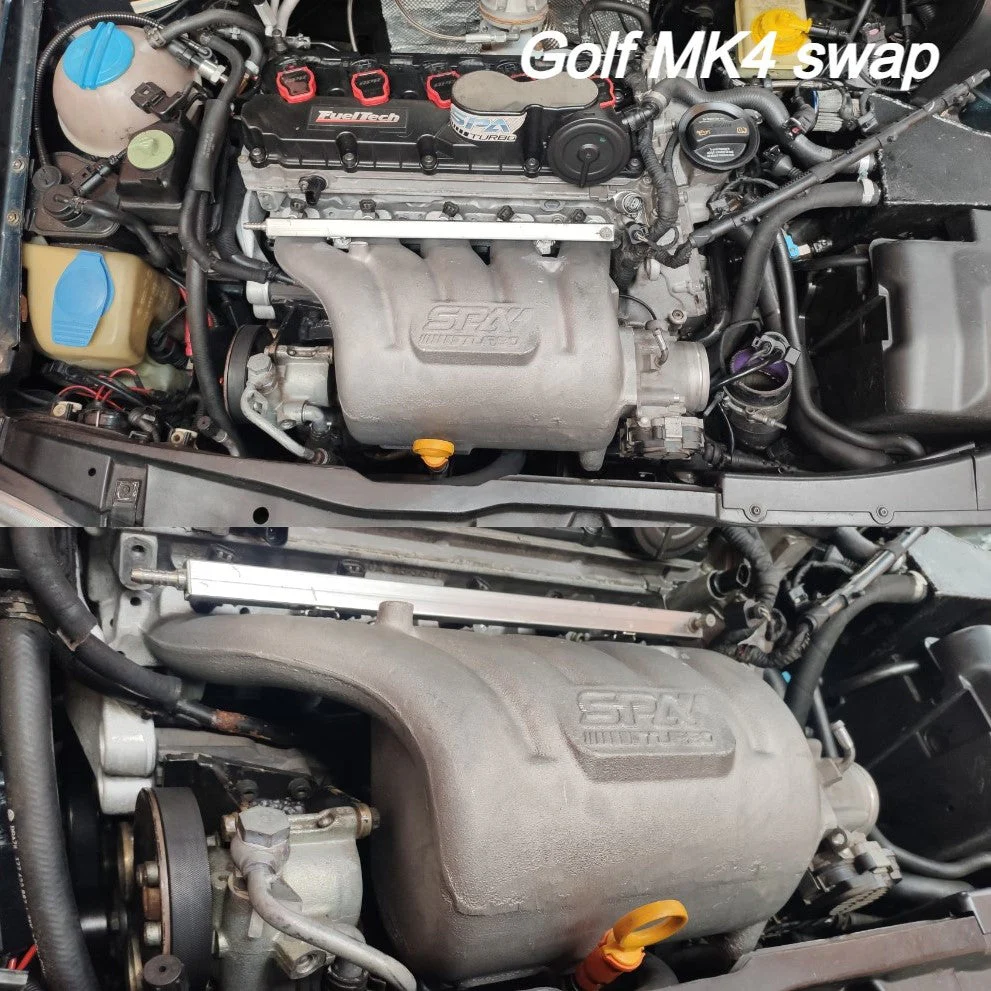

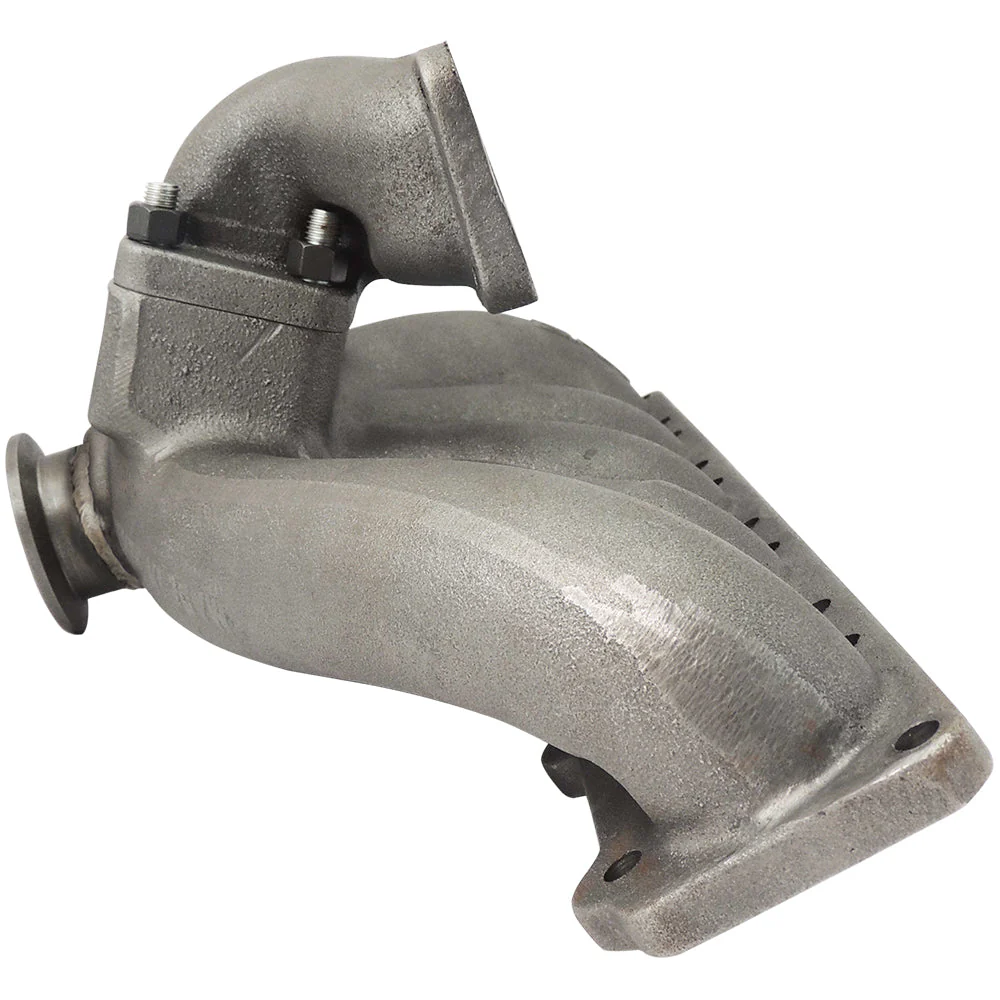

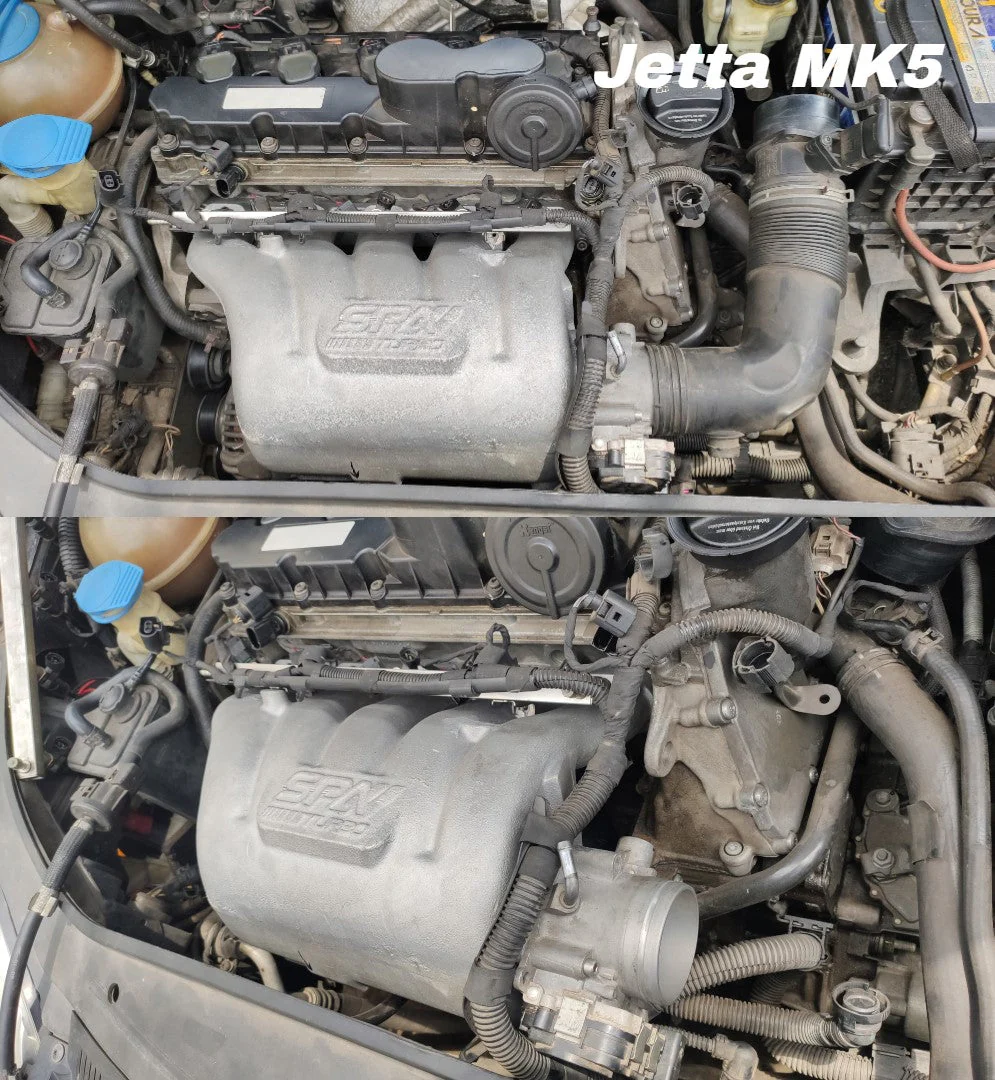

• Application: Jetta / Golf MK4 (for other adaptations. consult dimensions and check compatibility with your Project). For Jetta and Golf MK5 click here or search for TMW23.

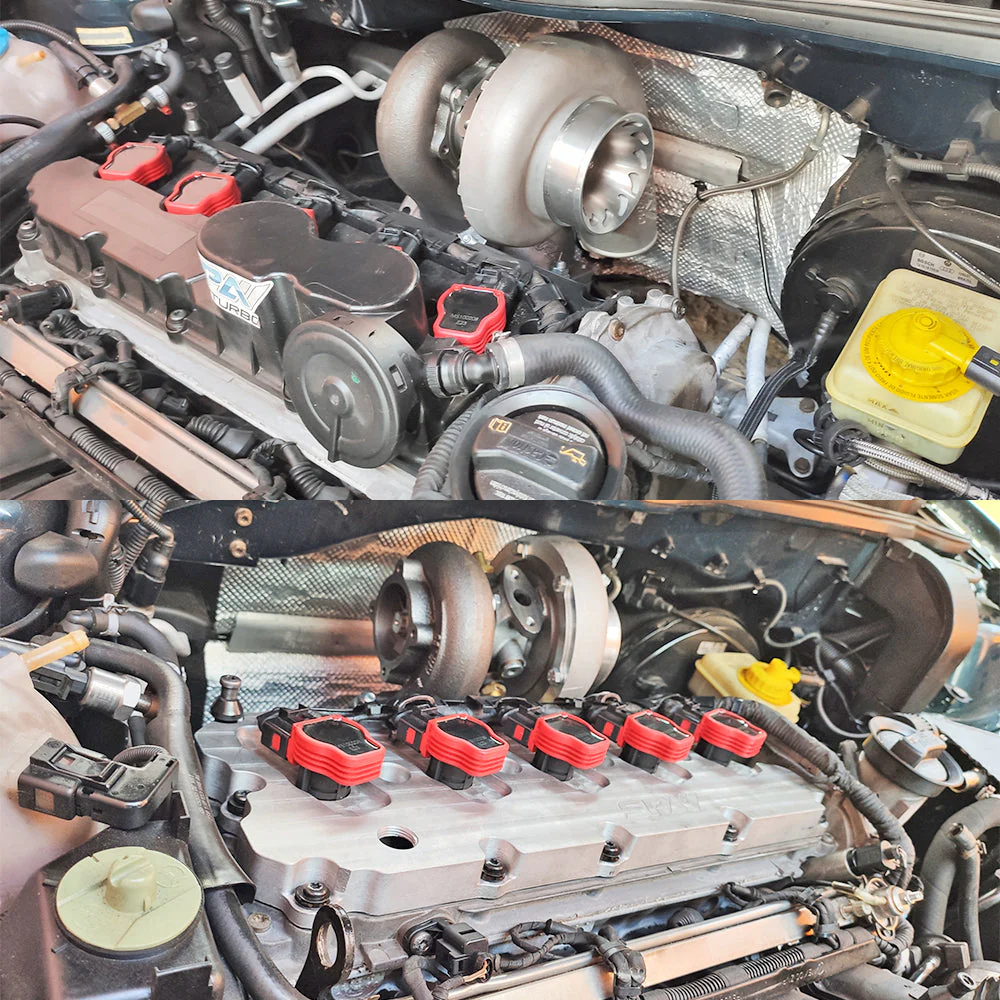

• Turbine position: Top mount

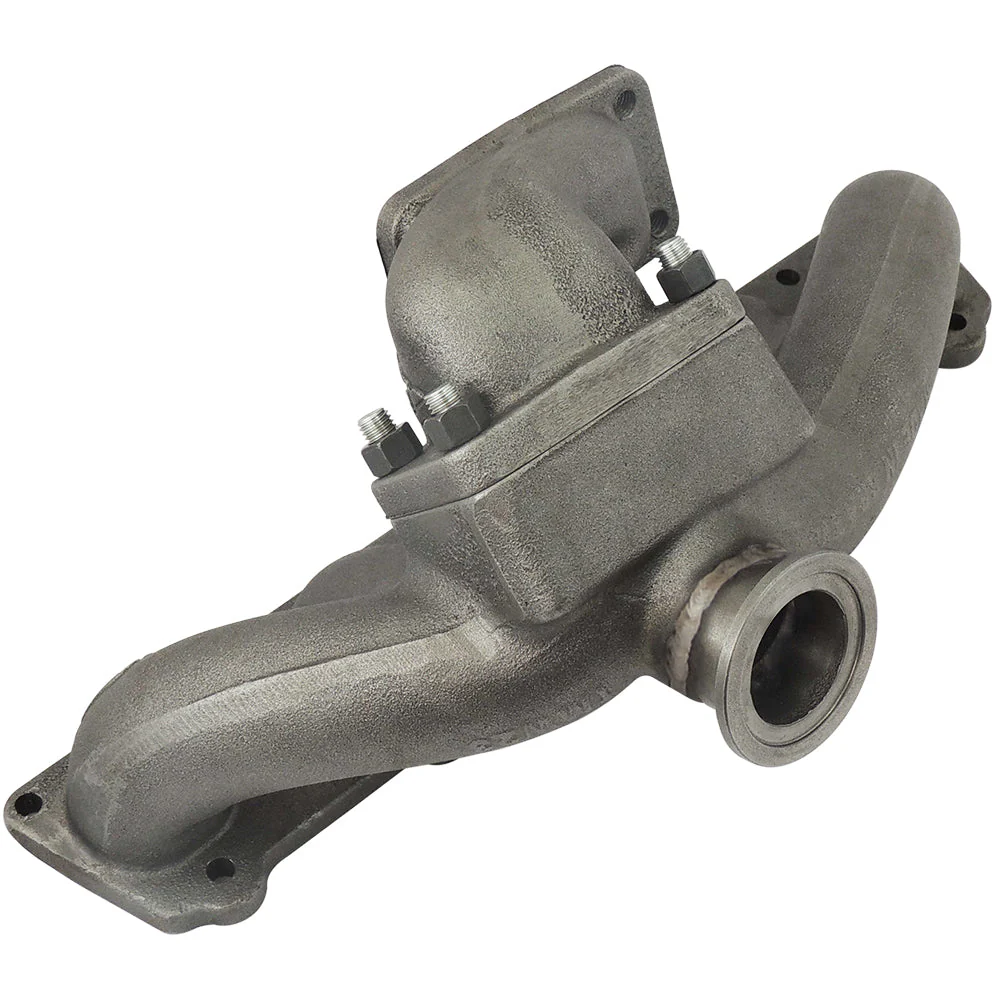

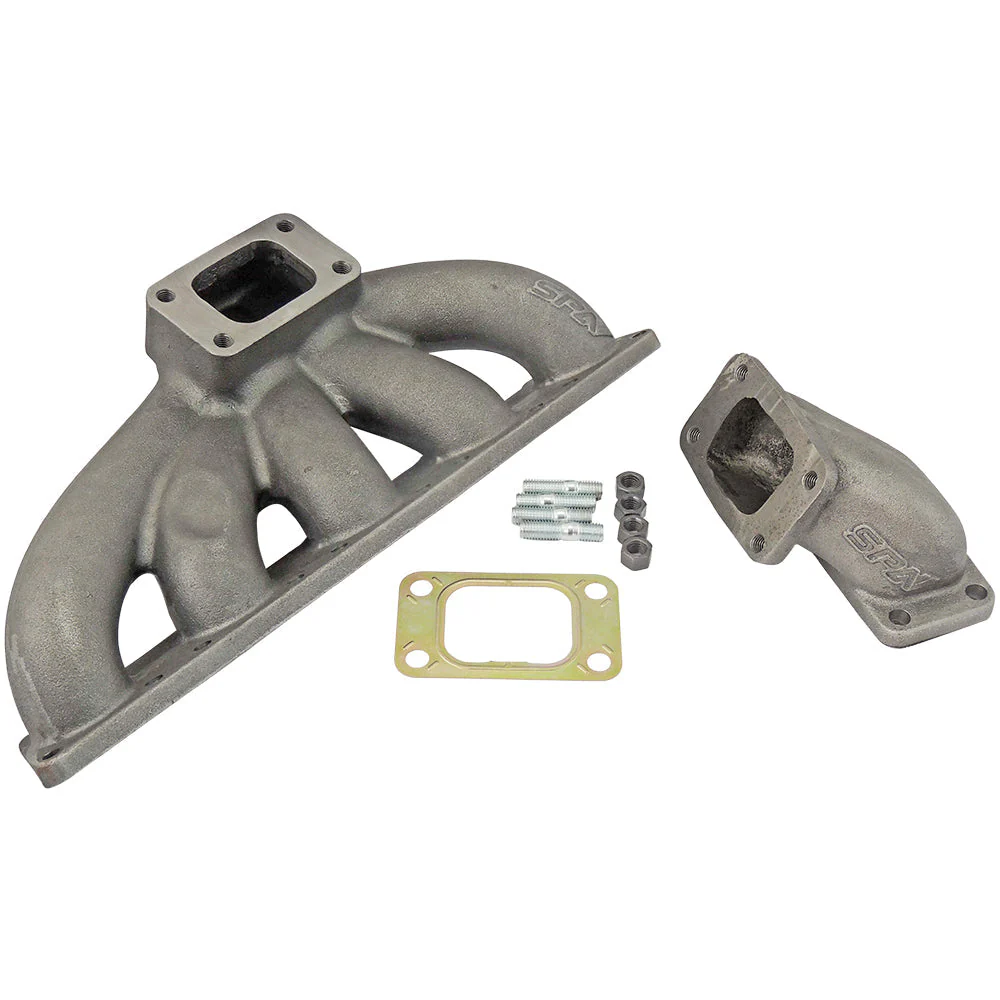

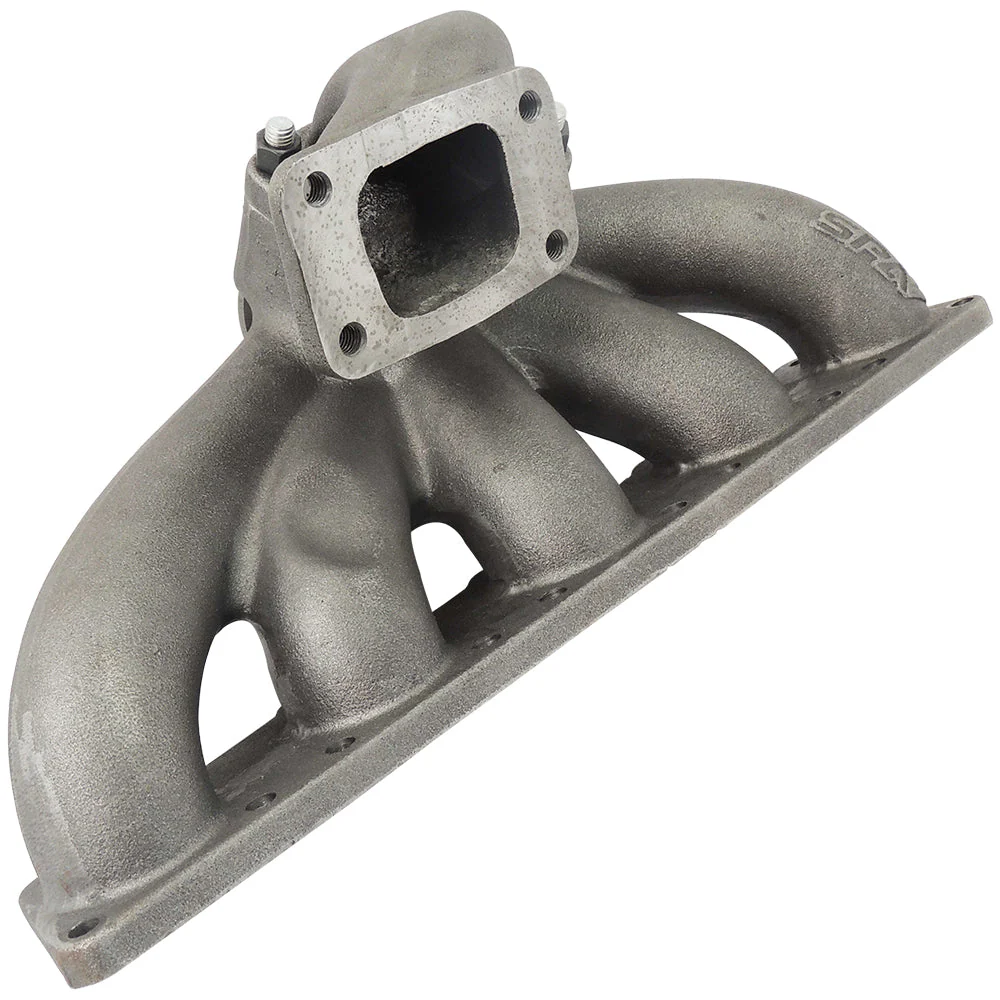

• Turbine housing flange: Standard T3 (hot housing for right side – passenger)



• Wastegate flange: V-Band 44mm

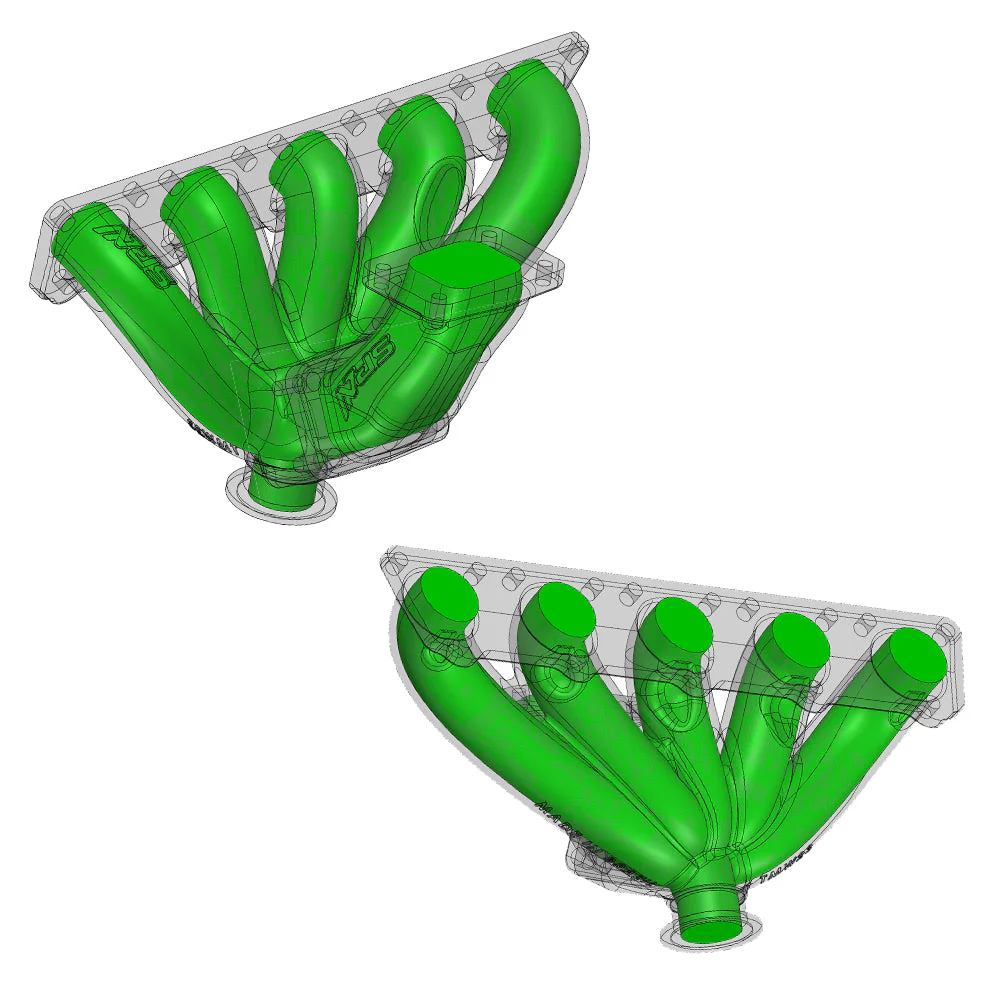

• Runner internal diameter: 41.5mm



• Material: Cast iron

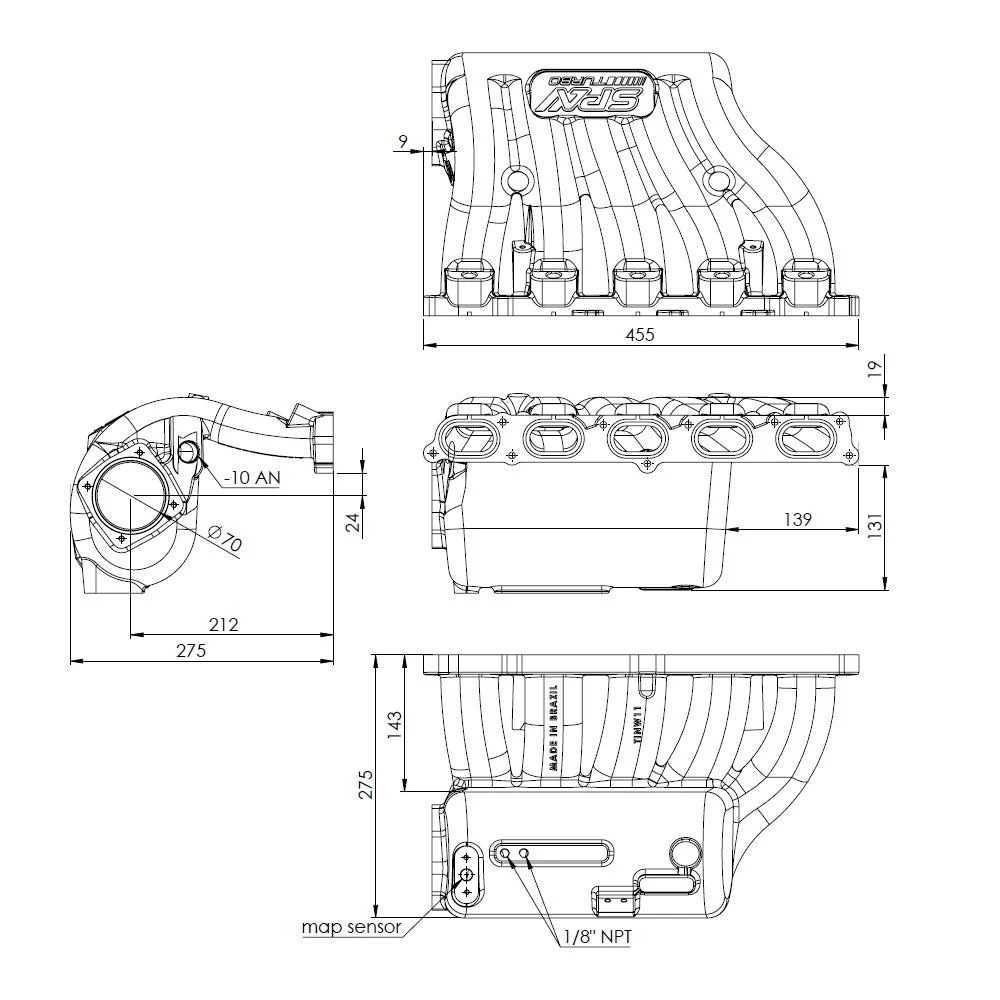

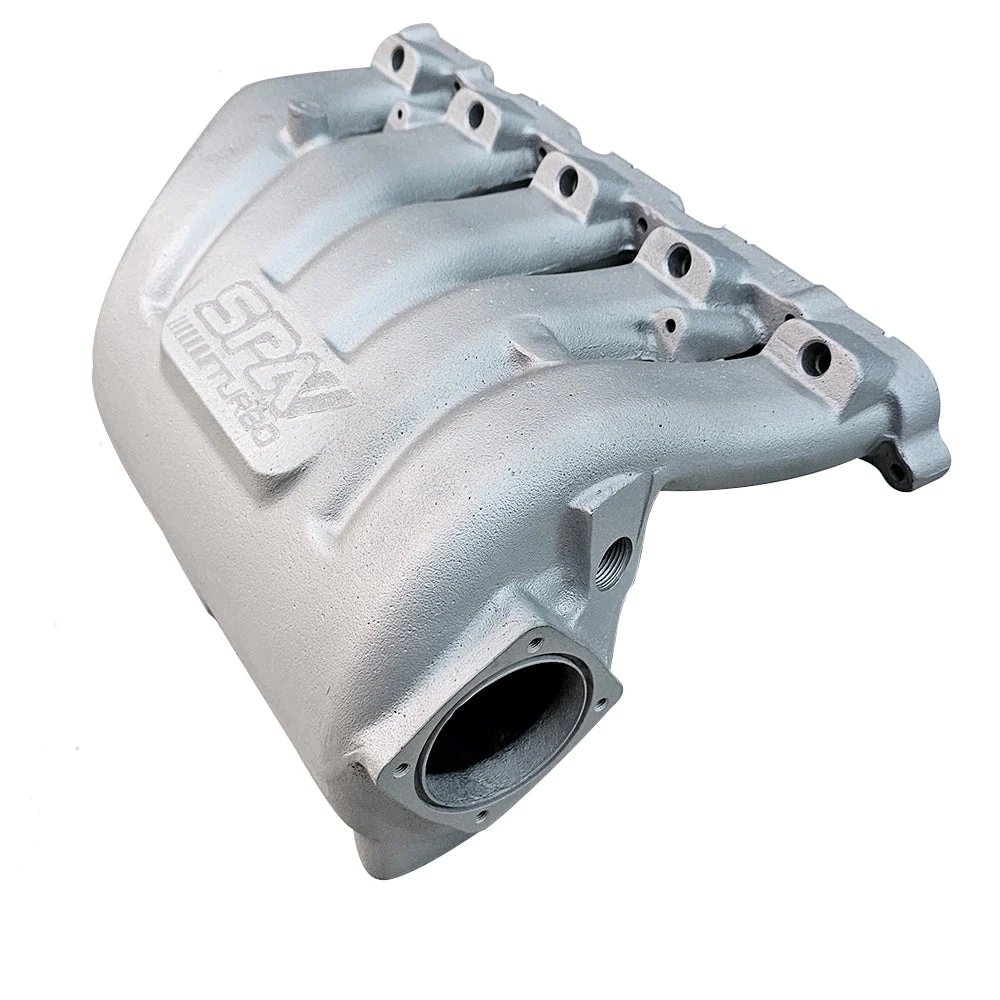

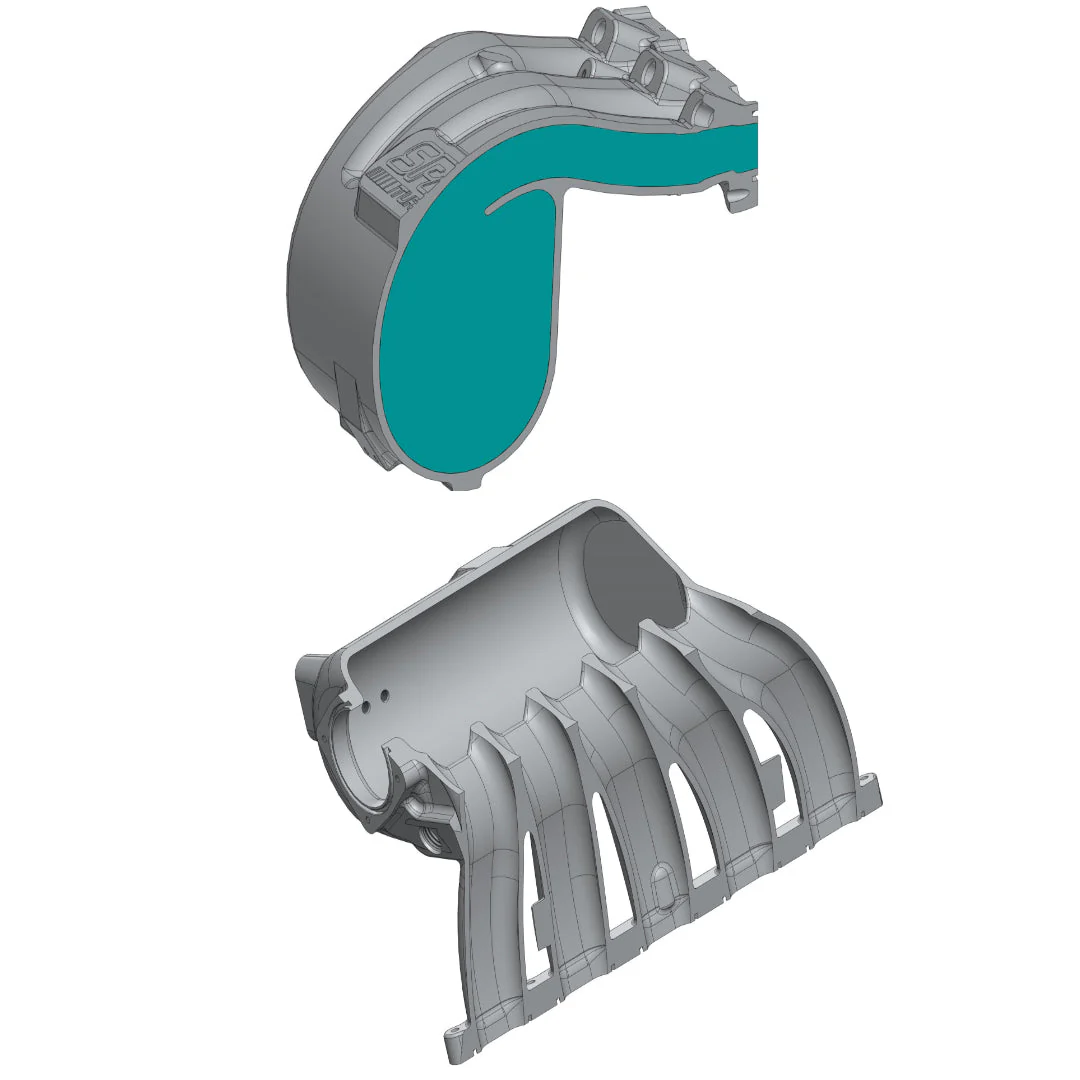

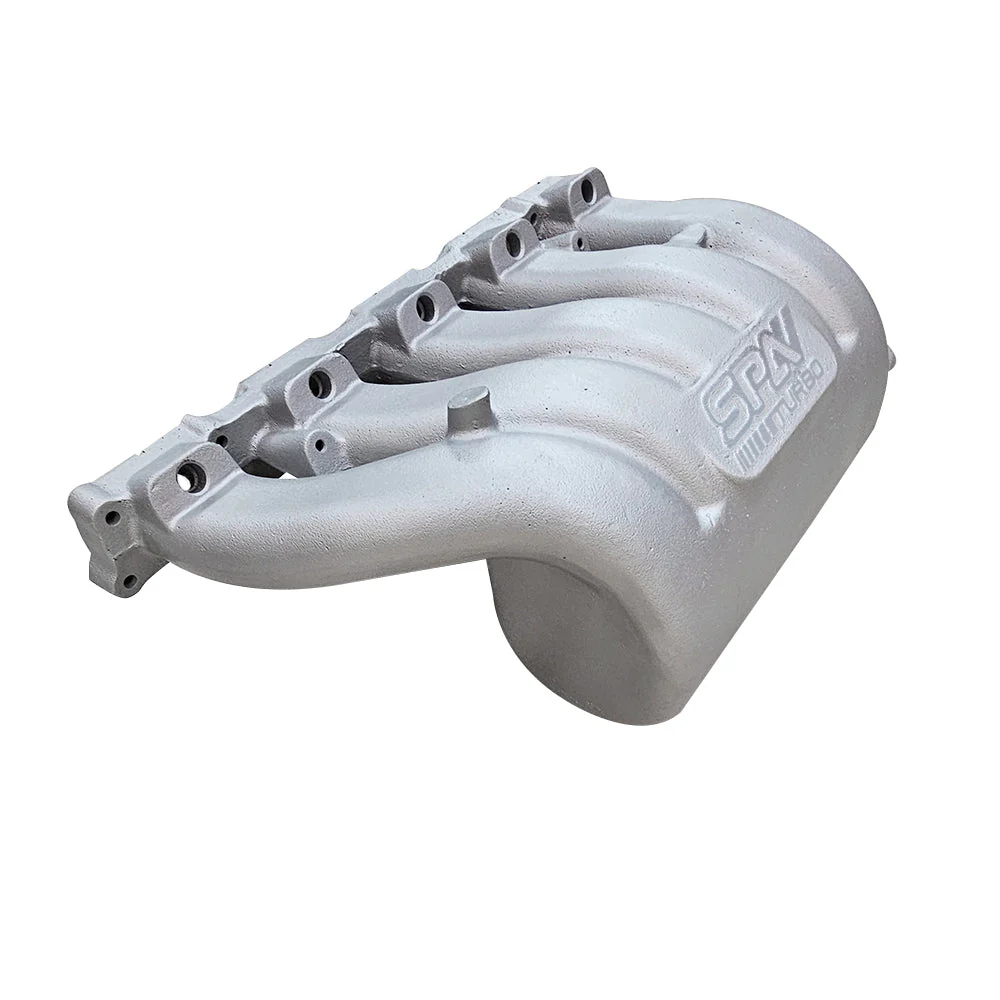

VW 2.5L 5 CYLINDER 20V 07K CAST ALUMINUM INTAKE MANIFOLD

The new intake manifold for the VW 2.5L 5 cylinder engine is the newest release from SPA Turbo! t's 100% cast aluminum, with no welds, allowing you to increase the boost without fear of sending the stock intake manifold flying

• Number of injectors: 5
• Fuel rail: Stock
• Fuel rail inlet/outlet: Stock

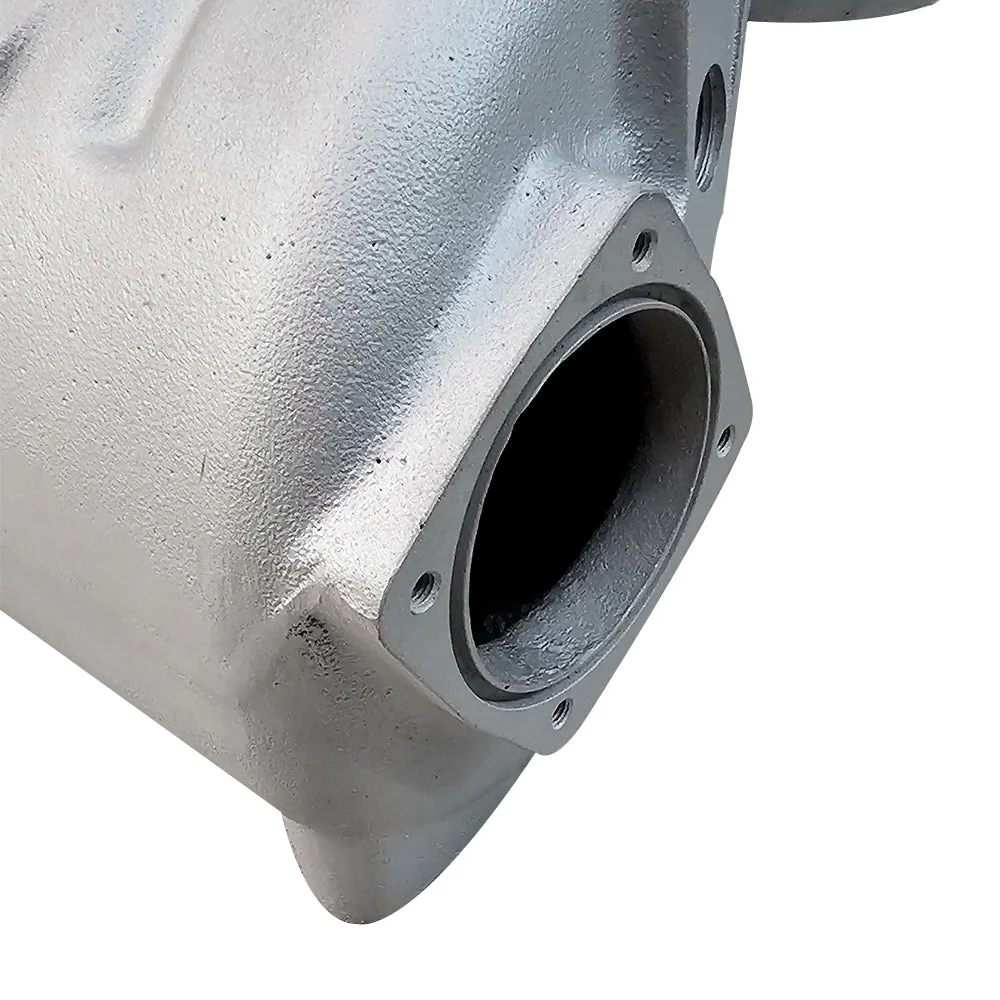

• Throttle body bolt hole pattern: Stock
• Max working capacity: 10bar (145psi)
• Internal volume: 6,2L
• Material: Cast aluminum
• Compatible with hydraulic and electric steering.
• Includes:
  Fitting for stock breather hose (-10AN).
  2X 1/8" NPT block off (if vacuum ports are not used).
  Oil dipstick holder.

• Compatible with original MAP sensor - ref. 0261230095 (not included).

• Not compatible with the original plastic engine cover.
