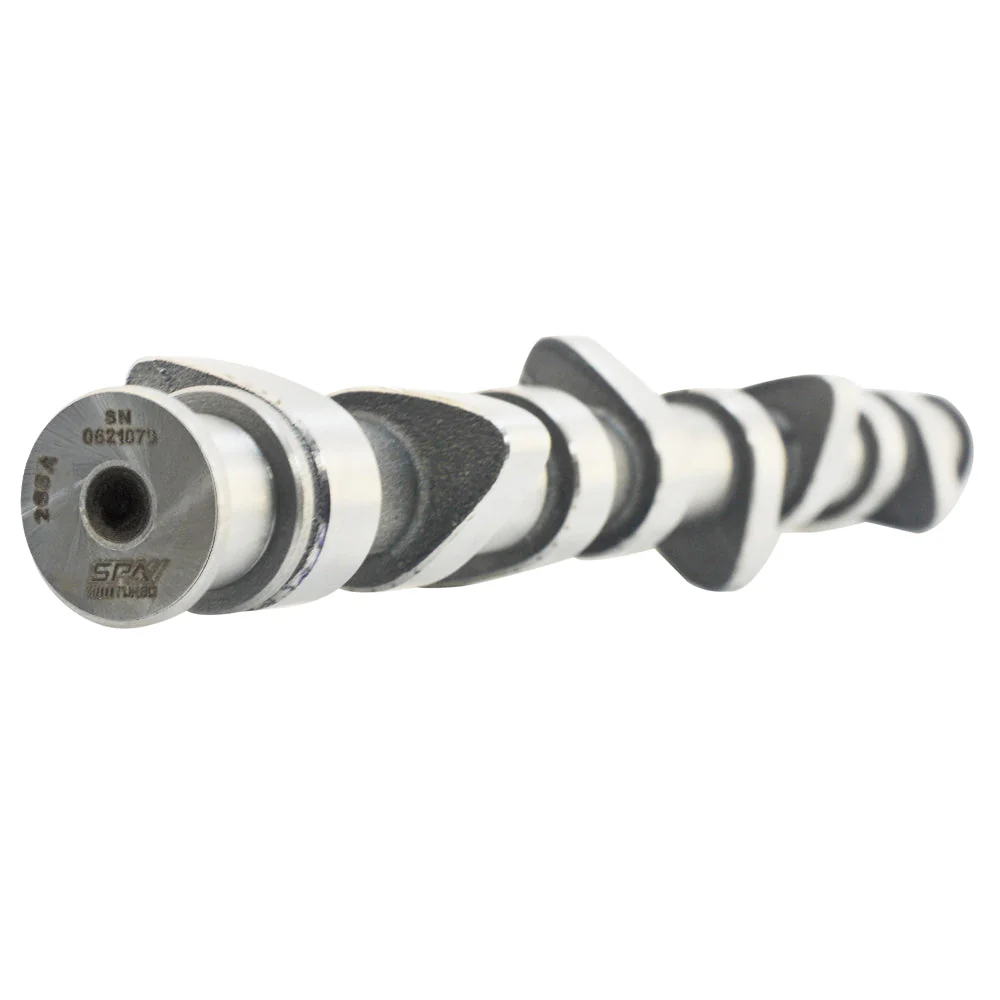

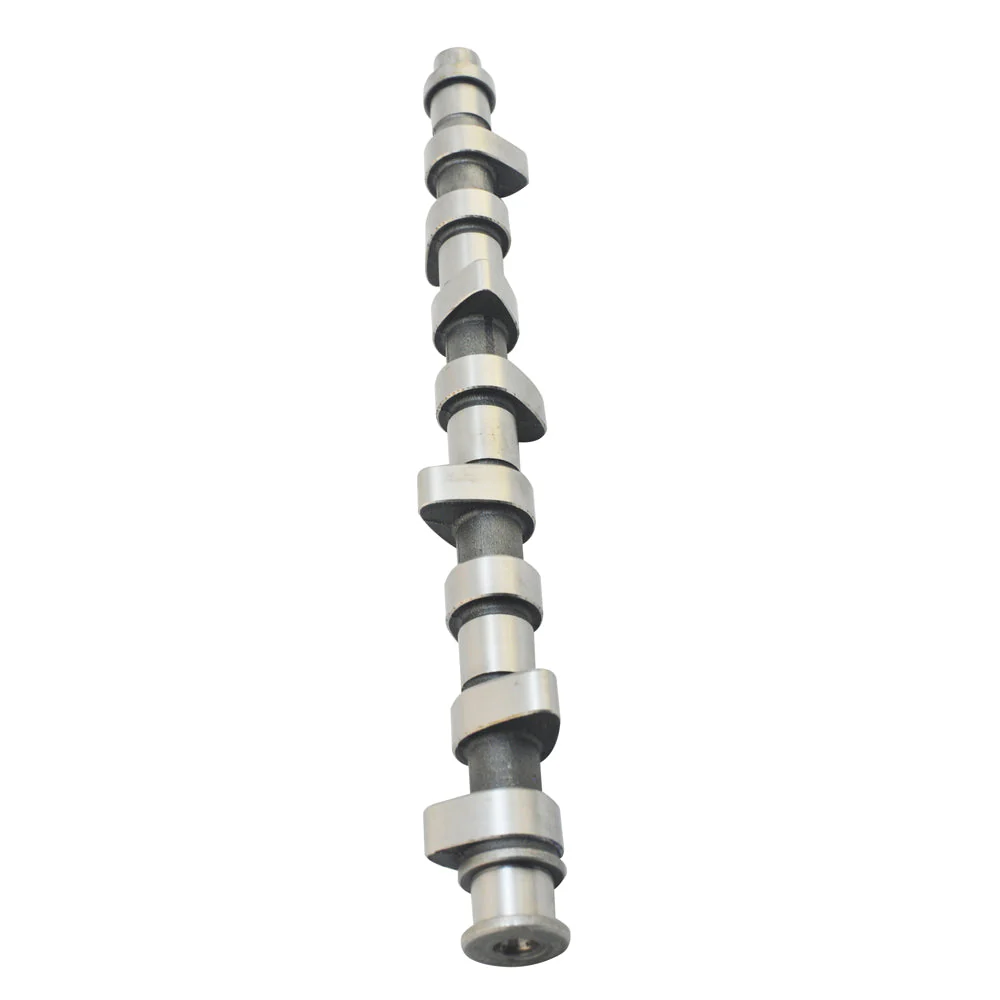

VW 8V 288 N/A application solid tappets performance camshaft
Application: EA 827 engines Capacities 1781-1847-1984cc from 1986
8V Engines with solid tappets
VW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro.
Duration intake: 288 degrees
Duration exhaust: 288 degrees
Intake valve lift: 11.75mm
Exhaust valve lift: 11.75mm
Lobe centers: 108 degrees
Valve timing
Intake open: 36 degrees
Intake closes: 72 degrees
Exhaust open: 36 degrees
Exhaust close: 72 degrees
Valve clearance: 0.48 / 0.48
Base circle: 38mm
Made of 1045 quenched steel
Billet machined
52-58 HRC
IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.

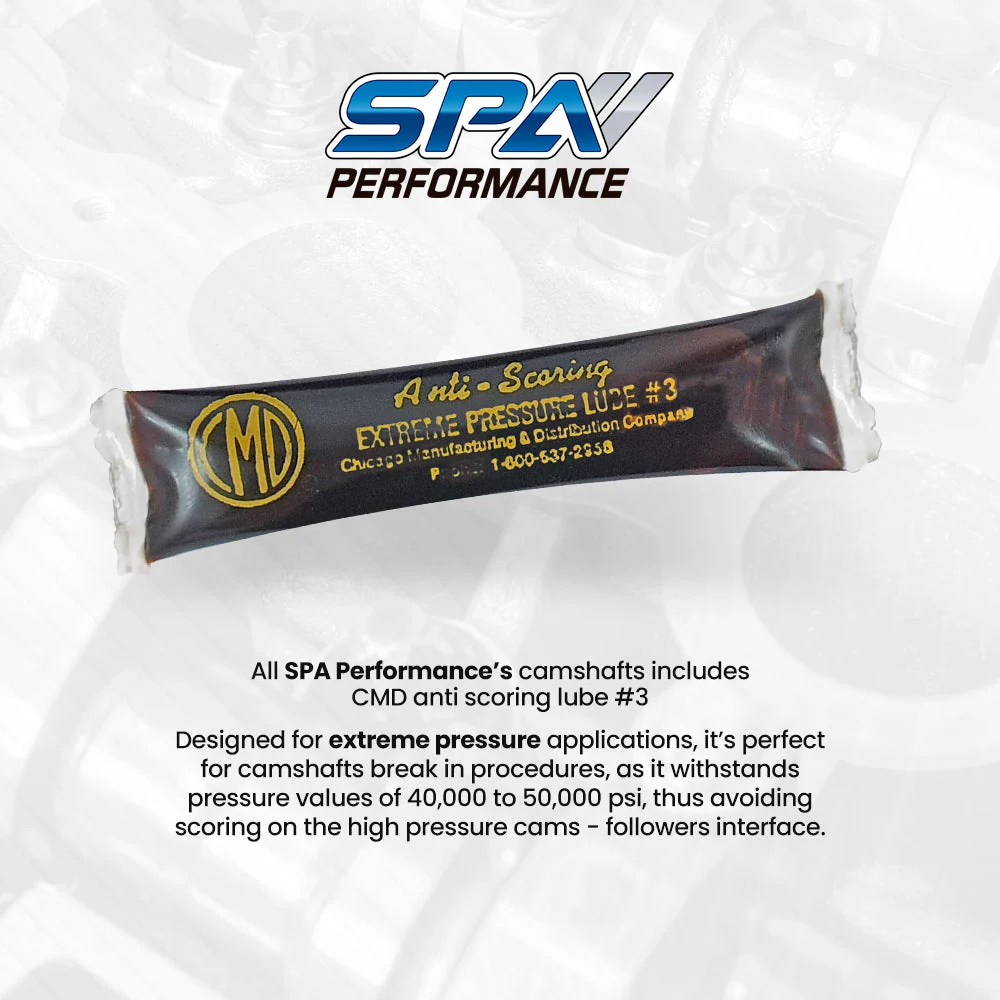

All SPA Performanceās camshafts includes CMD anti scoring lube #3
Designed for extreme pressure applications, itās perfect for camshafts break in procedures, as it withstands pressure values of 40,000 to 50,000 psi, thus avoiding scoring on the high pressure cams - followers interface.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
VW 8V 288 N/A application solid tappets performance camshaft
VW 8V 288 N/A application solid tappets performance camshaft
Application: EA 827 engines Capacities 1781-1847-1984cc from 1986
8V Engines with solid tappets
VW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro.
Duration intake: 288 degrees
Duration exhaust: 288 degrees
Intake valve lift: 11.75mm
Exhaust valve lift: 11.75mm
Lobe centers: 108 degrees
Valve timing
Intake open: 36 degrees
Intake closes: 72 degrees
Exhaust open: 36 degrees
Exhaust close: 72 degrees
Valve clearance: 0.48 / 0.48
Base circle: 38mm
Made of 1045 quenched steel
Billet machined
52-58 HRC
IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.
All SPA Performanceās camshafts includes CMD anti scoring lube #3
Designed for extreme pressure applications, itās perfect for camshafts break in procedures, as it withstands pressure values of 40,000 to 50,000 psi, thus avoiding scoring on the high pressure cams - followers interface.
Original: $490.86
-70%$490.86
$147.26Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Application: EA 827 engines Capacities 1781-1847-1984cc from 1986
8V Engines with solid tappets
VW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro.
Duration intake: 288 degrees
Duration exhaust: 288 degrees
Intake valve lift: 11.75mm
Exhaust valve lift: 11.75mm
Lobe centers: 108 degrees
Valve timing
Intake open: 36 degrees
Intake closes: 72 degrees
Exhaust open: 36 degrees
Exhaust close: 72 degrees
Valve clearance: 0.48 / 0.48
Base circle: 38mm
Made of 1045 quenched steel
Billet machined
52-58 HRC
IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.
All SPA Performanceās camshafts includes CMD anti scoring lube #3
Designed for extreme pressure applications, itās perfect for camshafts break in procedures, as it withstands pressure values of 40,000 to 50,000 psi, thus avoiding scoring on the high pressure cams - followers interface.
