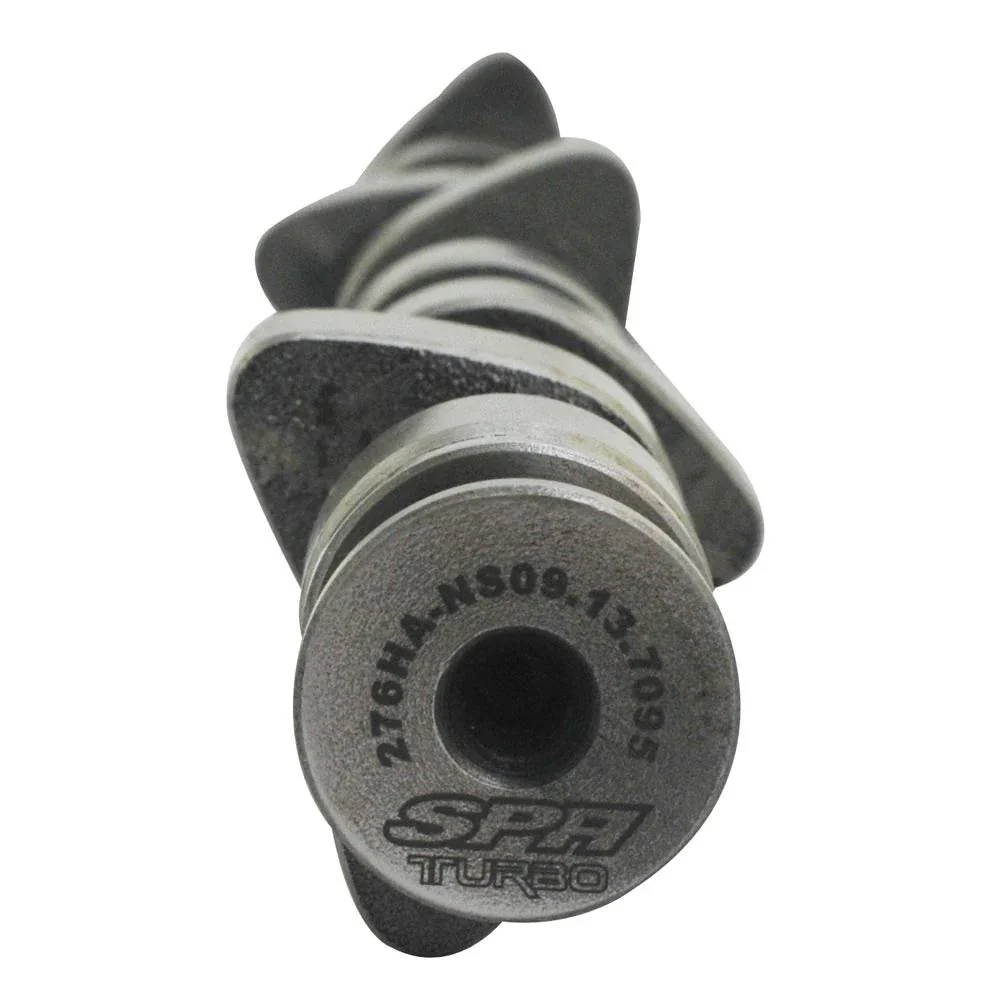

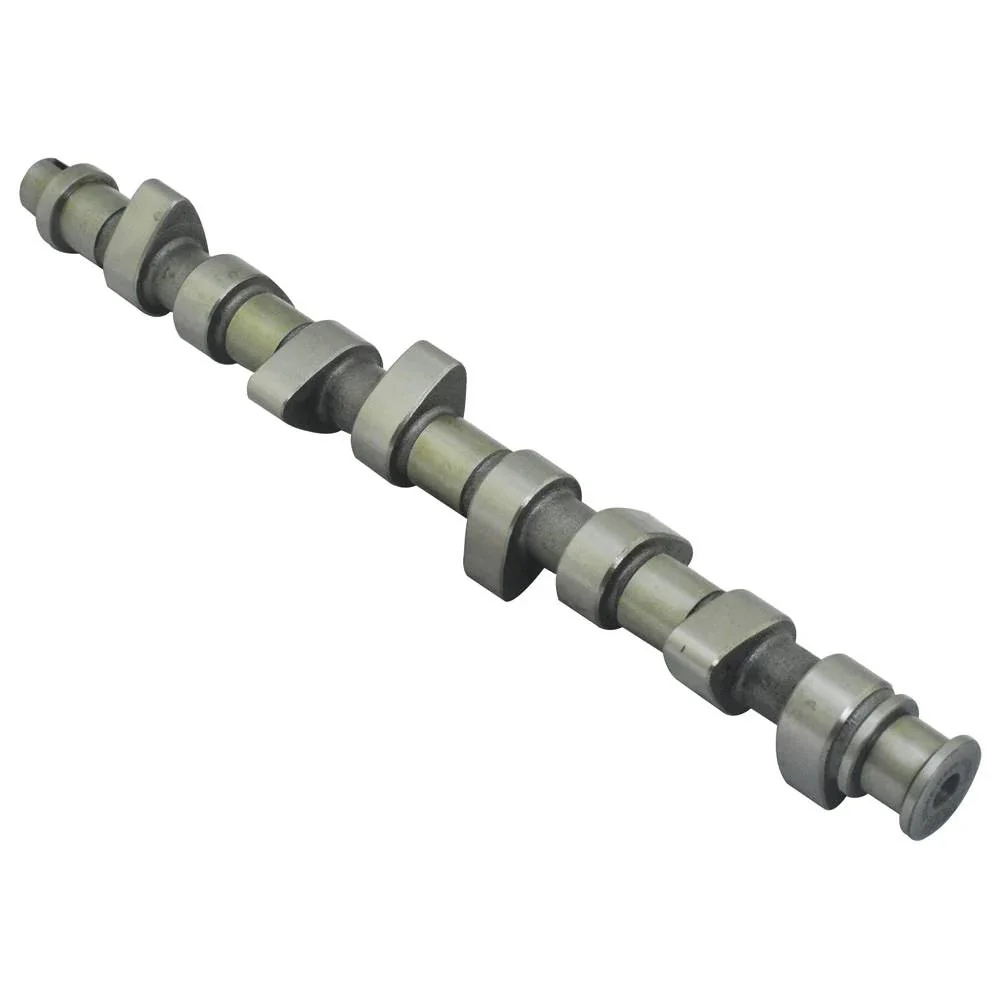

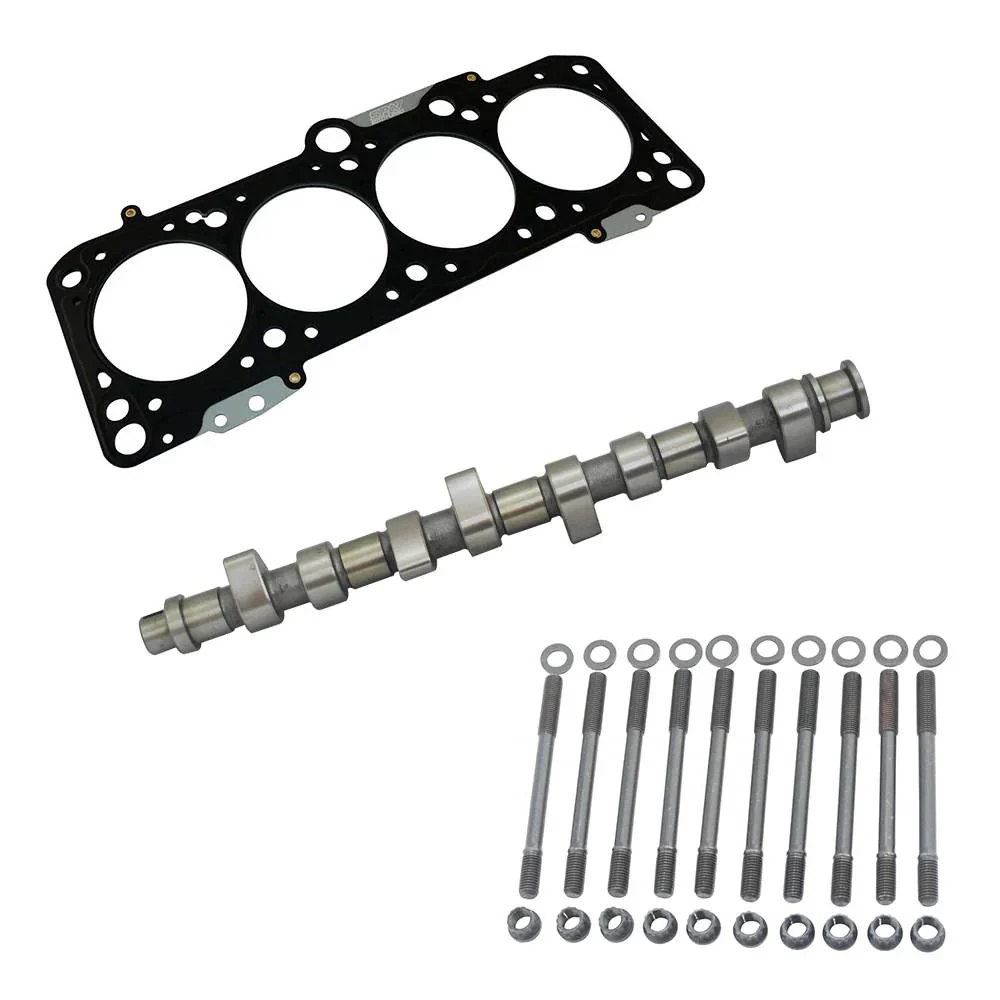

VW 8V 276 N/A application hydraulic tappets performance camshaft

Application: EA 827 engines Capacities 1781-1847-1984cc from 1986
8V Engines with hydraulic tappets

VW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro.

Duration intake: 276 degrees
Duration exhaust: 276 degrees
Intake valve lift: 11.50mm
Exhaust valve lift: 11.50mm
lobe centers: 110 degrees

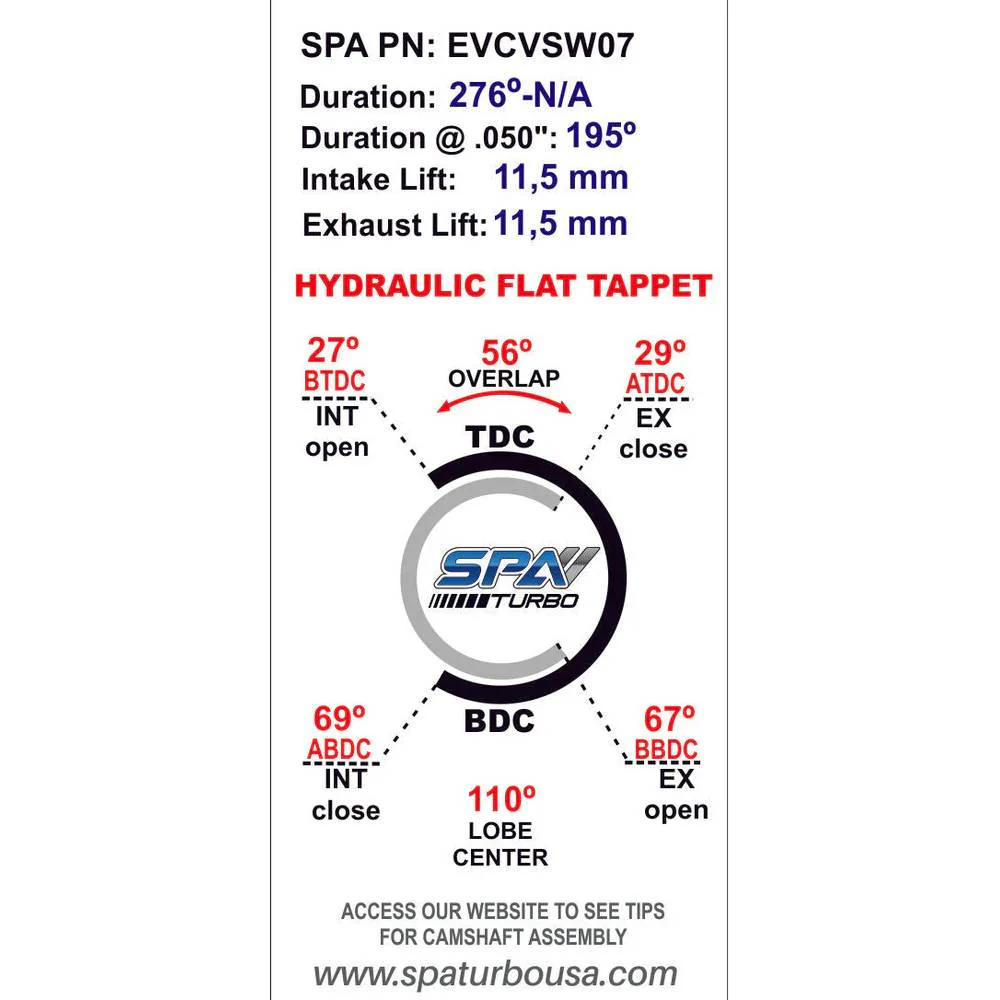

valve timing
Intake open: 27 degrees
Intake closes: 69 degrees
Exhaust open: 67 degrees
Exhaust close: 29 degrees
Valve clearance: hydraulic lifters*
Base circle: 34mm
Made of 1045 quenched steel
Billet machined
52-58 HRC

IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.

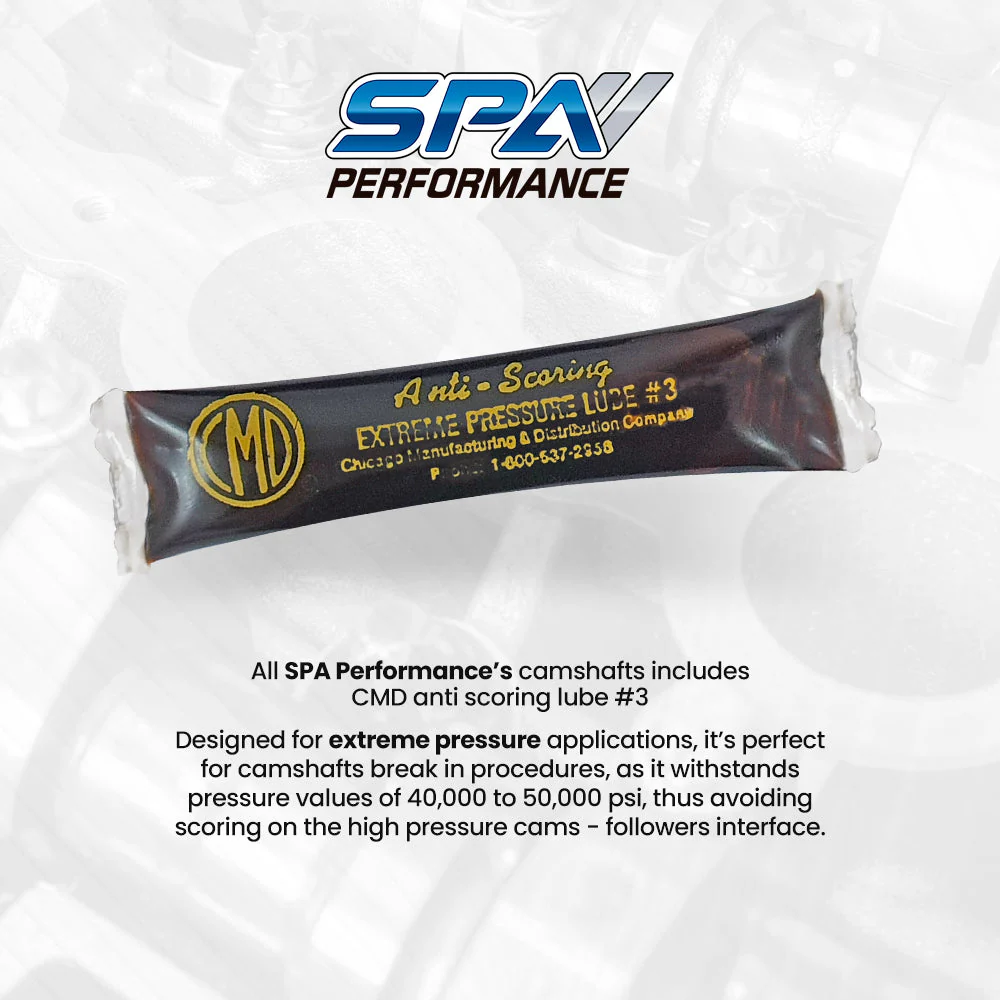

All SPA Performance’s camshafts includes CMD anti scoring lube #3

Designed for extreme pressure applications, it’s perfect for camshafts break in procedures, as it withstands pressure values of 40,000 to 50,000 psi, thus avoiding scoring on the high pressure cams - followers interface.



Attention: this camshaft can be used with solid lifters as long as valve lash caps (EMPI 4006, or similar) are assembled and adjusted individually. We strongly recommend that this should be done by a proper professional in order to achieve the correct valve lash values.

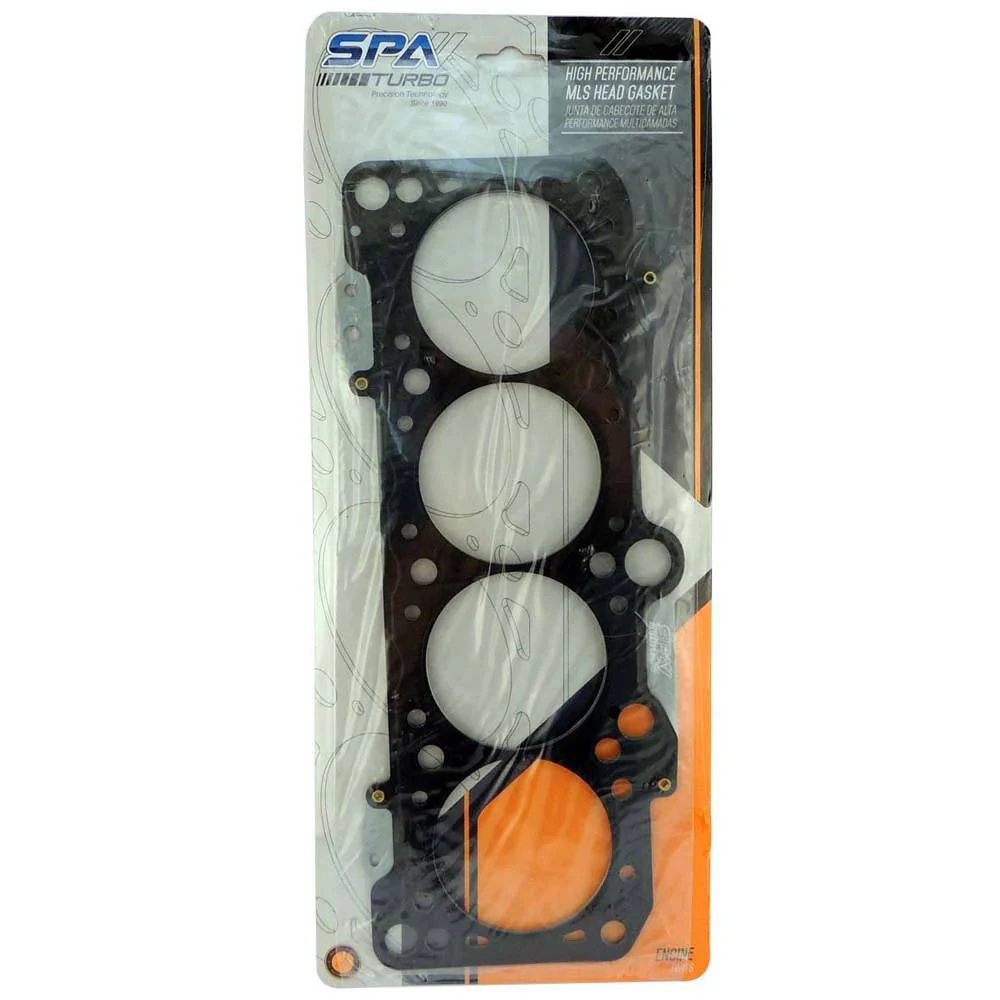

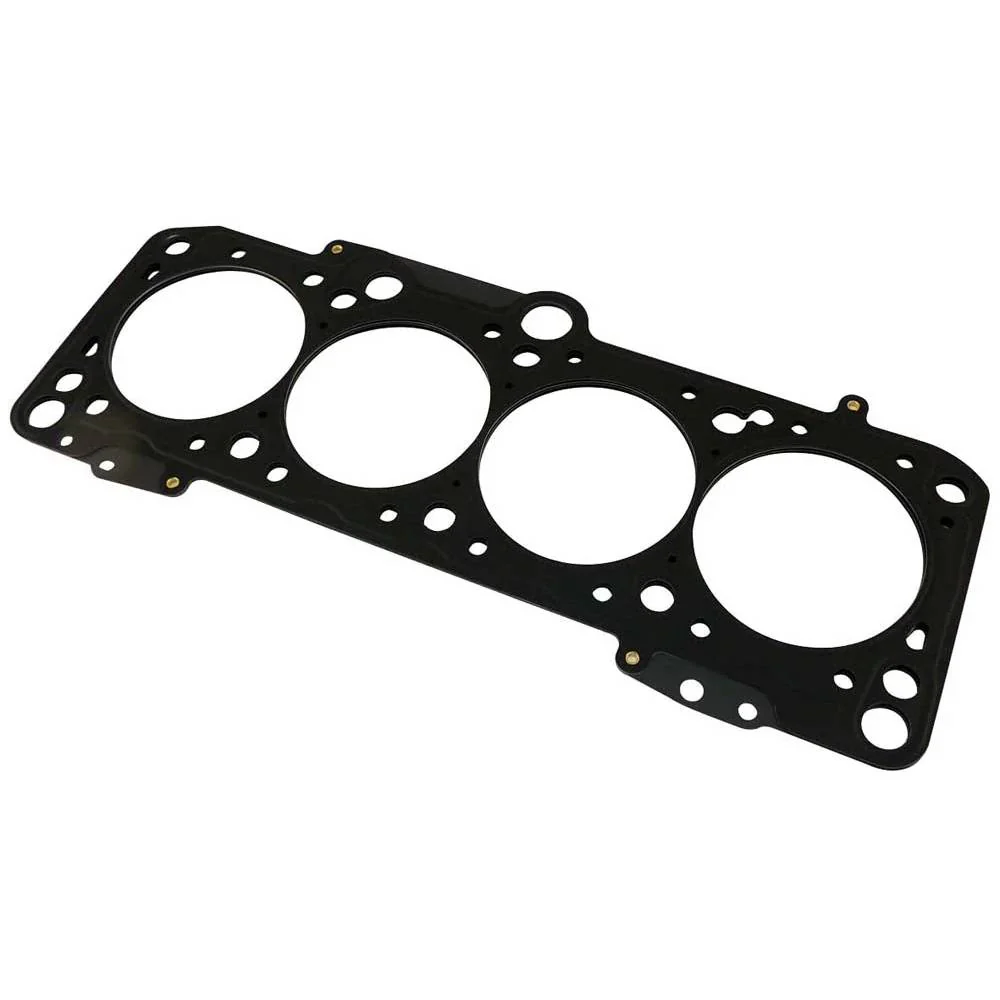

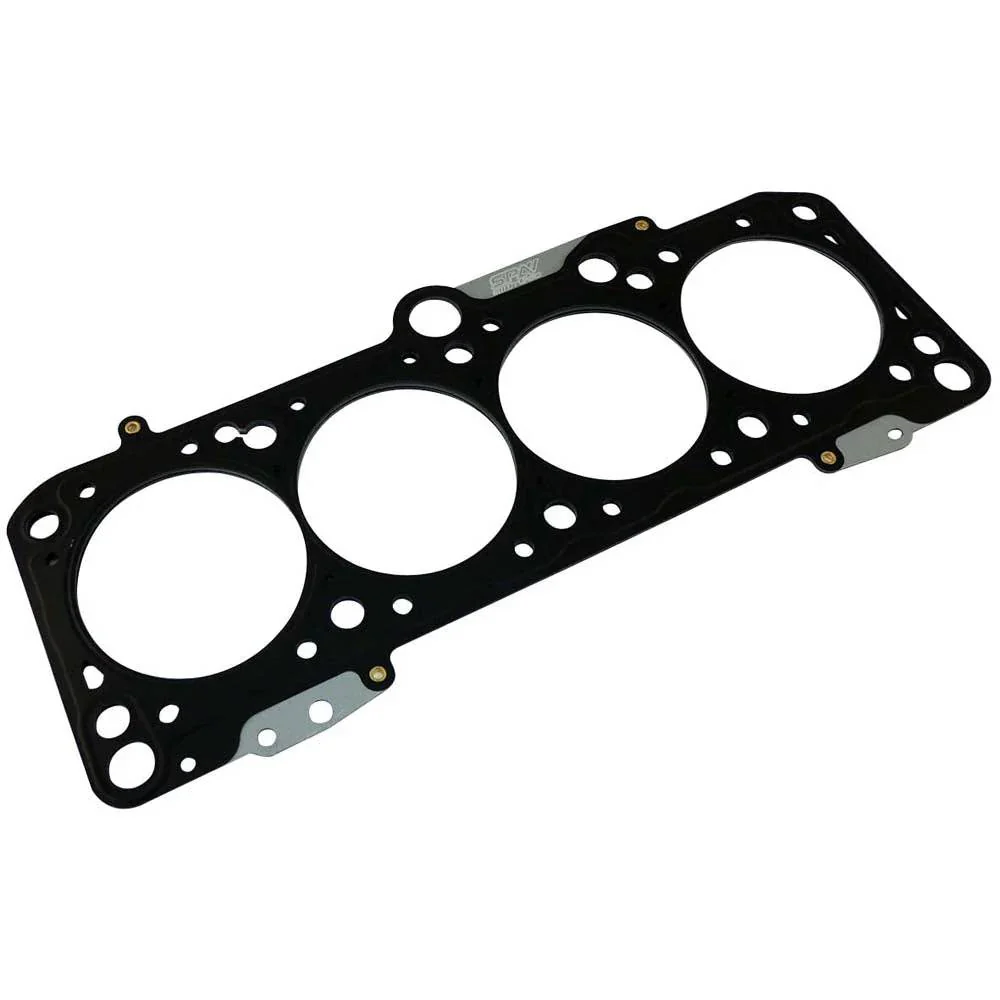

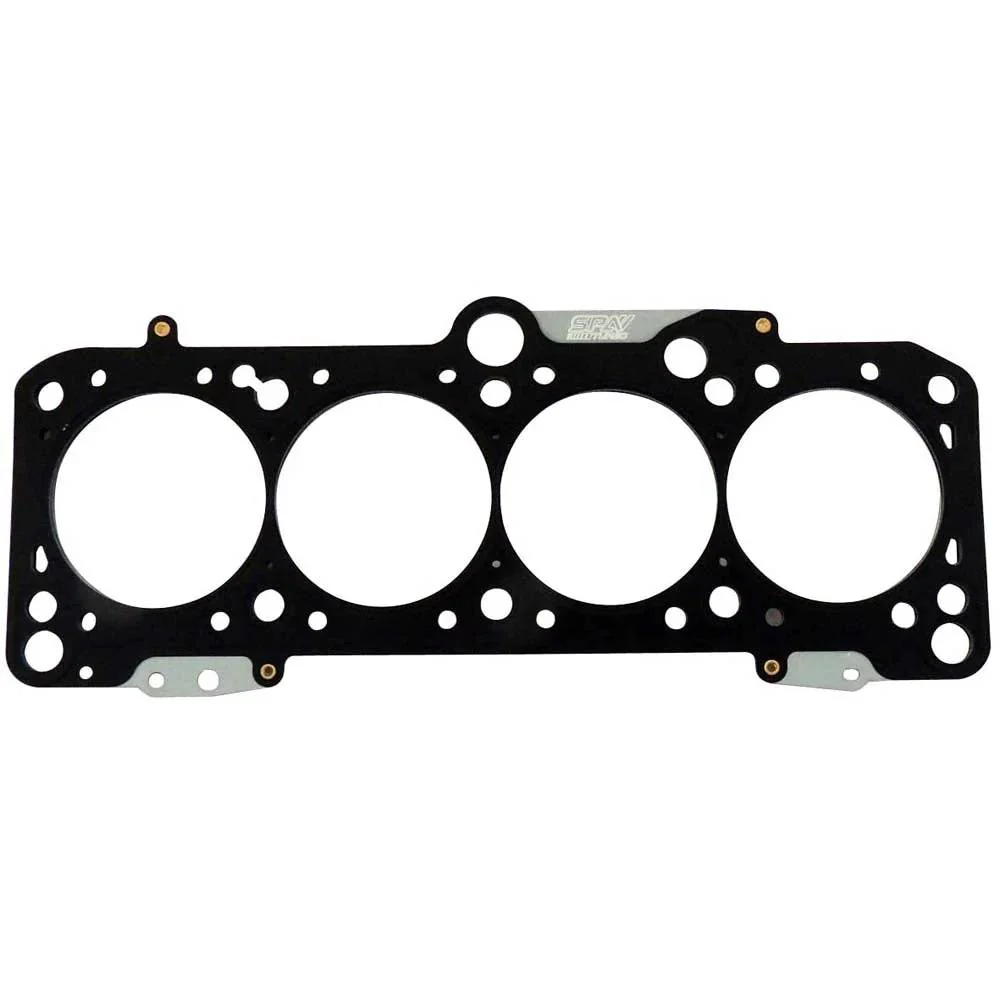

VW 8v/16v ABA ABF MLS High Compression Head Gasket - 0.5mm



• Special cylinder head gasket for turbo conversion
• With this special Turbo multilayer metal cylinder head gasket
• The compression raise is already integrated in the seal.
• (Ground and coated)
• Will accept pistons up to 84.00mm overbored sized, can be used with smaller bores with no problem too.
• Compression ratio NEW will depend on the engine used
• Manufacturer: SPA TURBO
• Engine Code: All 2 liters   Blocks of VW 8V and 16V (some small modifications may be necessary in some cases)
• 9A, 6A, ACE, 2E, ADY, ACX ABF, AGG, AKR, ABA, ABBOT, ADW, AAD, AAE, CAST OFF, 3A, SD.

• Similar to OE numbers/Comparable numbers of manufacturers

• Available in 0.9mm; 1.5mm; 2.0mm, 2.5mm and 3.4mm thickness
• We're the  VW Turbo experts!

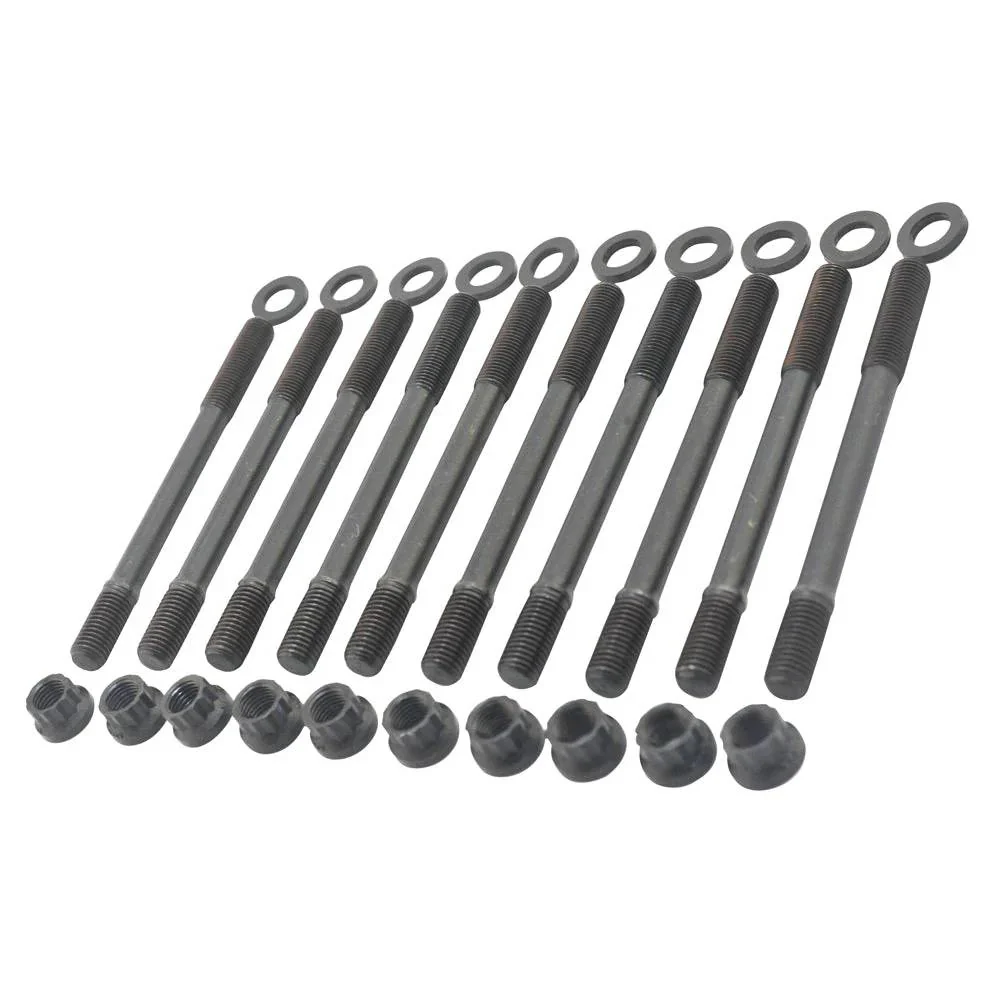

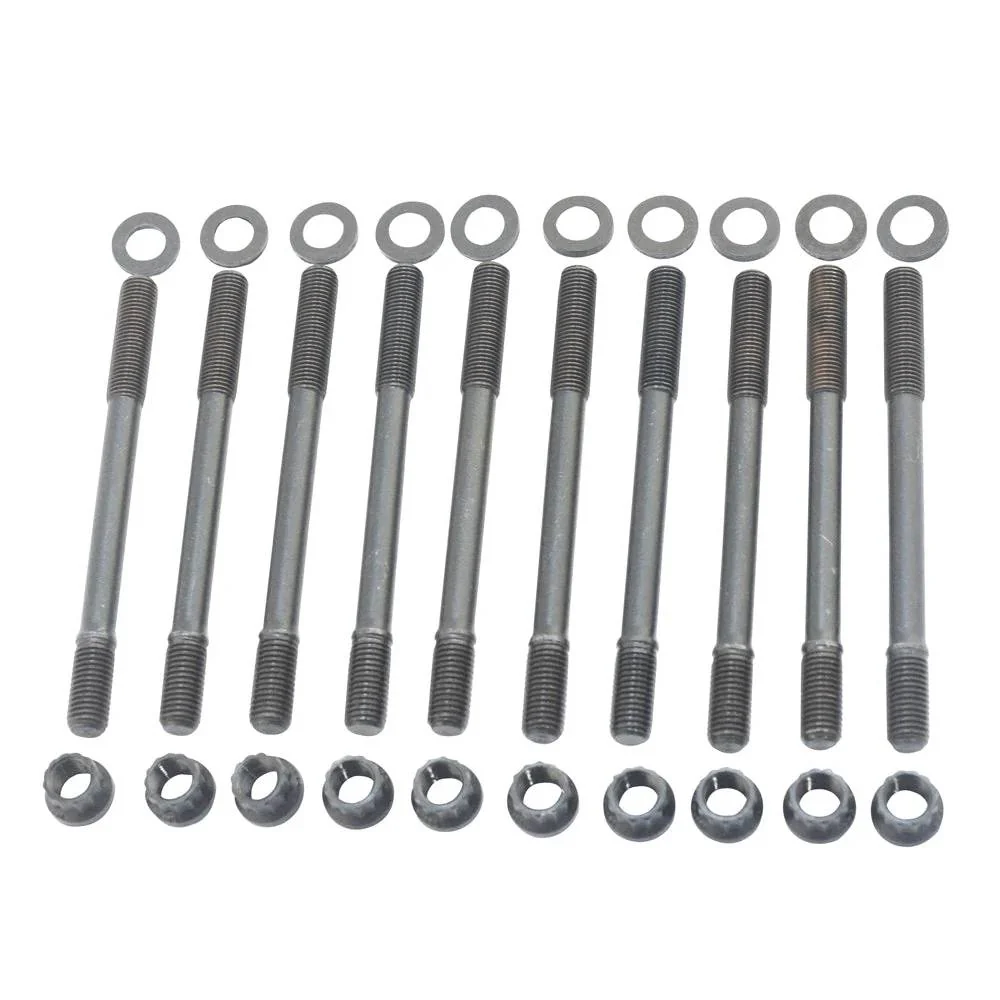

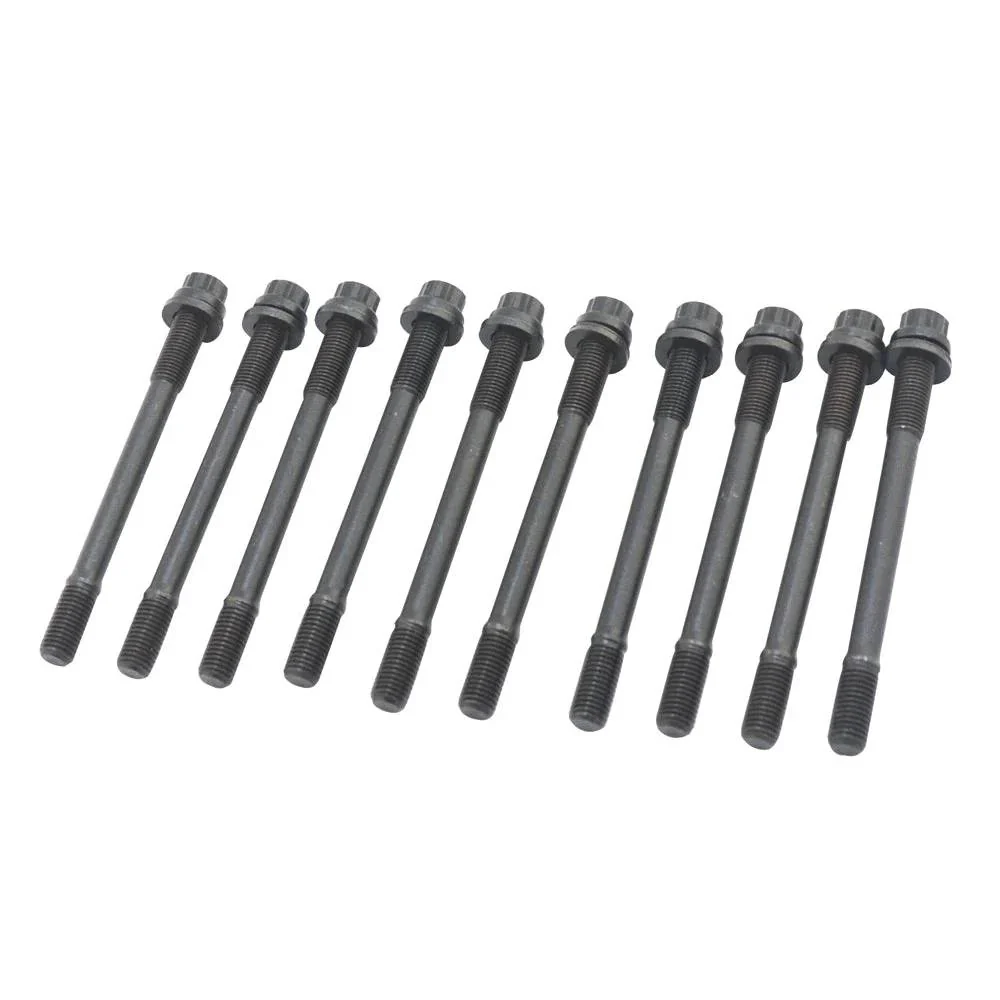

VW MKI MKII GTI PB 1.8L 2.0L 8v SOHC 118mm head stud set



• VW cylinder head stud set, available in either 118mm (this item)  or   136mm length for taller blocks.
• They will fit earlier and old style VW 8V cylinder heads.
• The set contains 10 Studs,  10 washers and 12 point nuts, (you will need a 1/2 or 13mm 12 point socket).
• The studs are for M11 threads, please confirm with your OEM bolts before purchase.
• These will replace 93mm OEM bolts.
• Maximum Torque - 72 ft/lb
