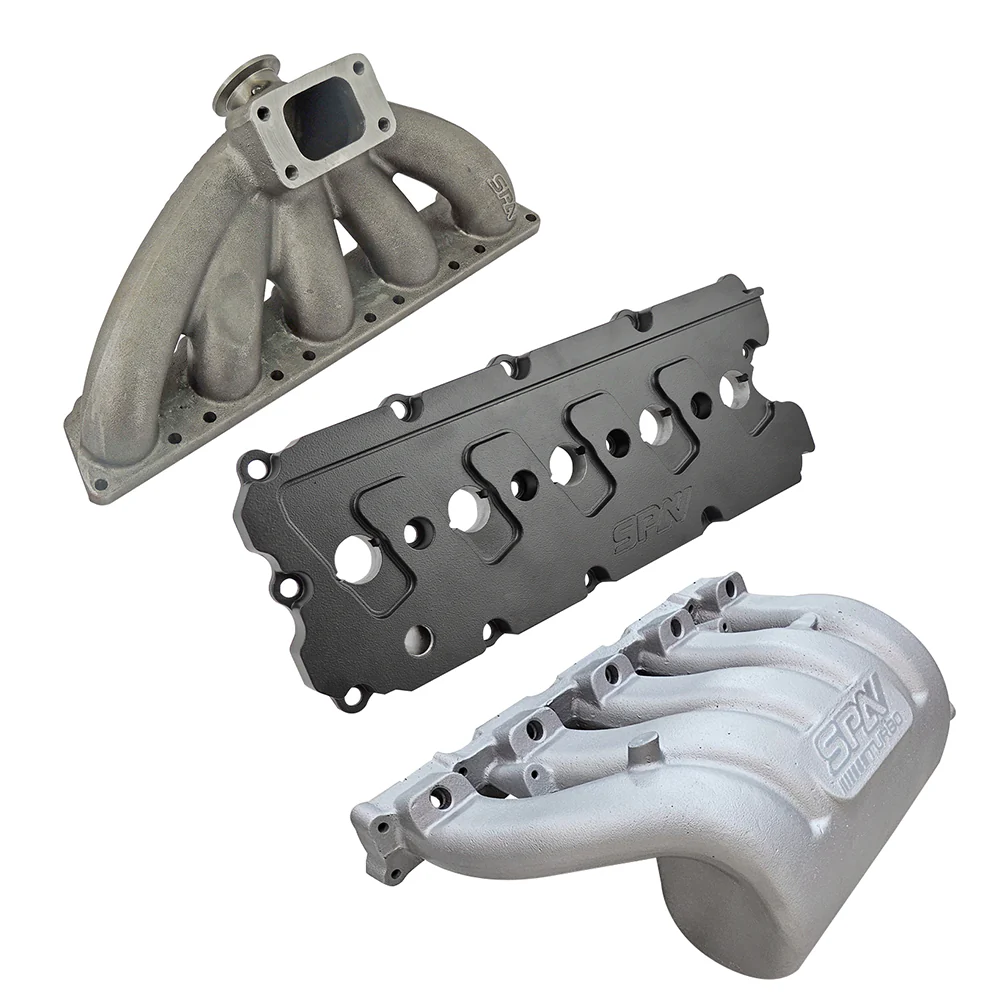

Turbo manifold, cast aluminum valve cover & intake manifold for VW Jetta/Golf MK5 2.5L 5-cyl 20V 07K.

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Product image 18
Product image 19
Product image 20
Product image 21

Turbo manifold, cast aluminum valve cover & intake manifold for VW Jetta/Golf MK5 2.5L 5-cyl 20V 07K.

Turbo manifold, cast aluminum valve cover & intake manifold for VW Jetta/Golf MK5 2.5L 5-cyl 20V 07K.

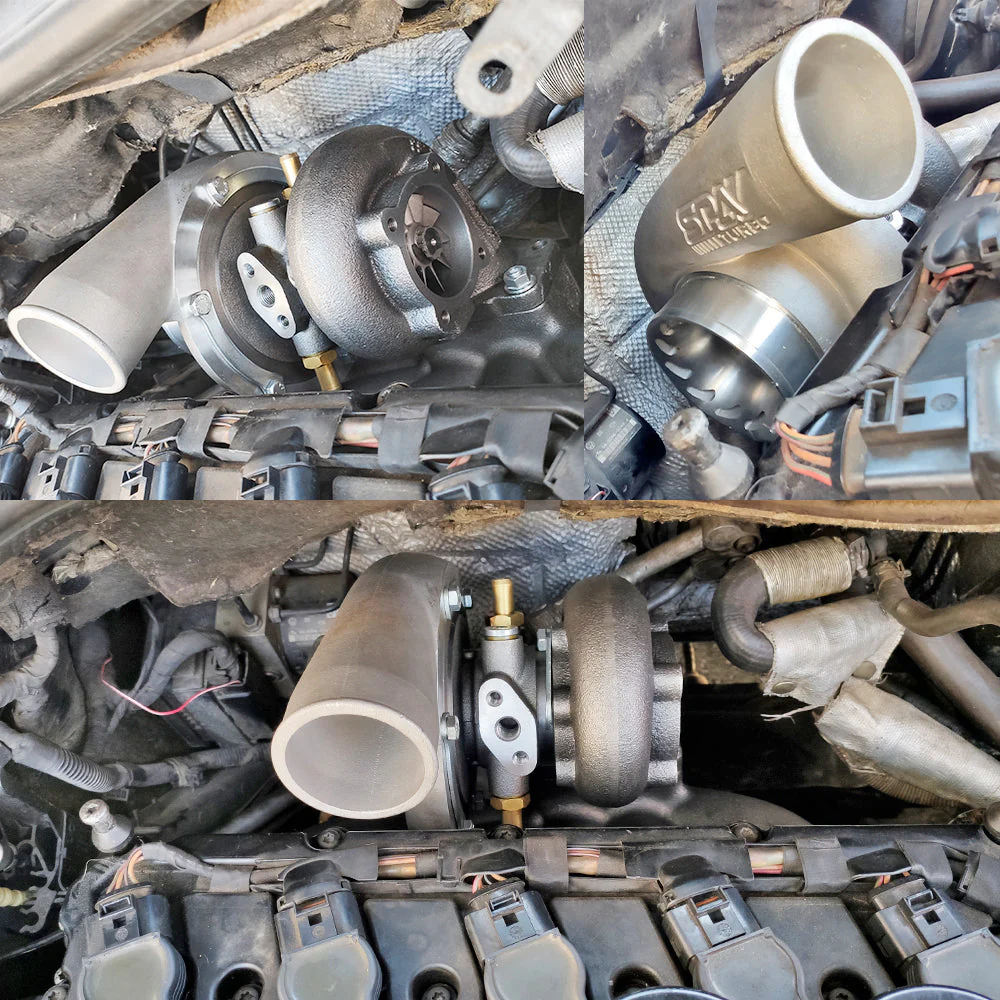

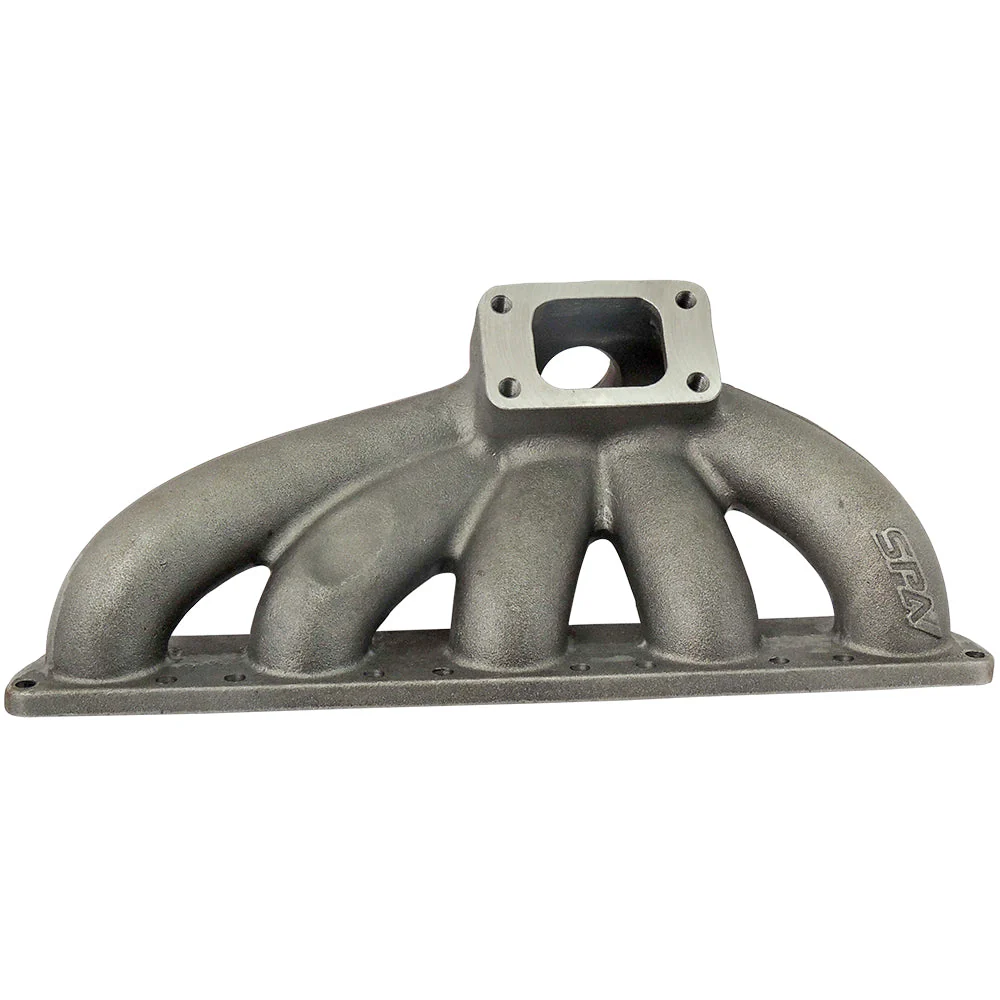

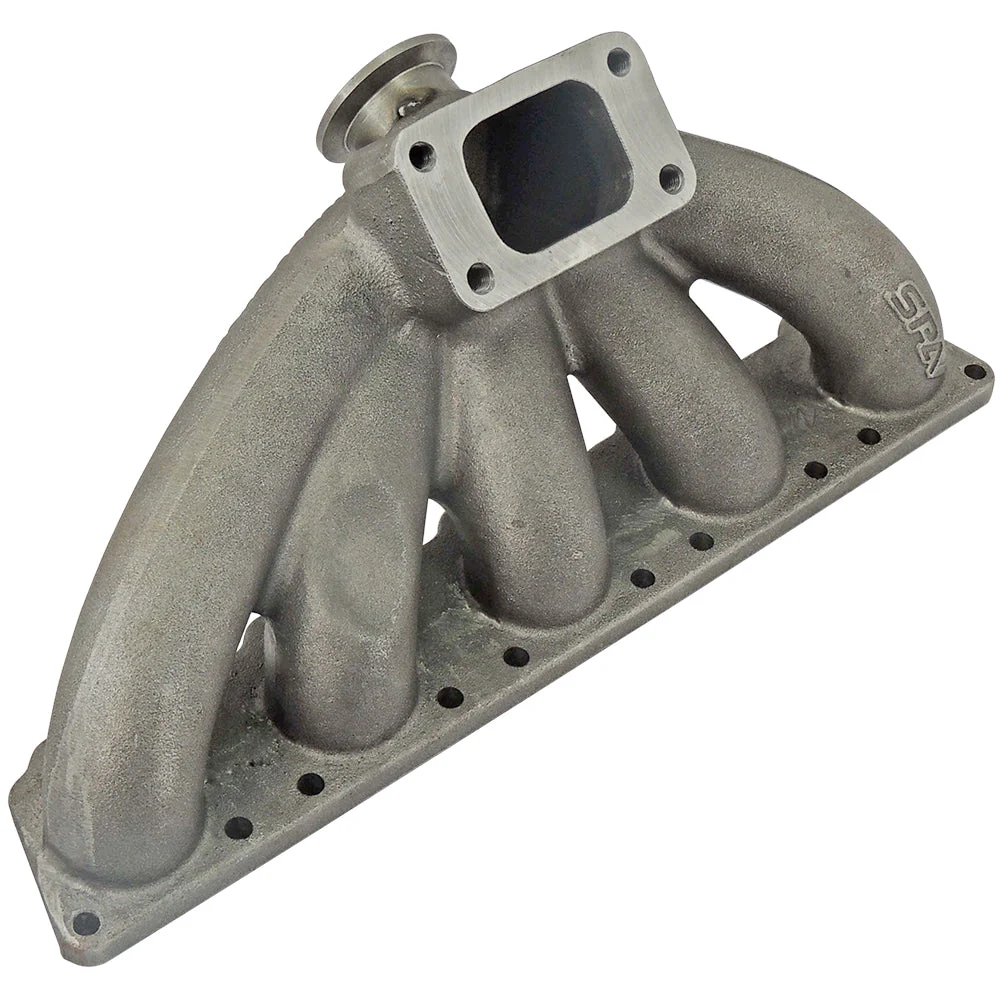

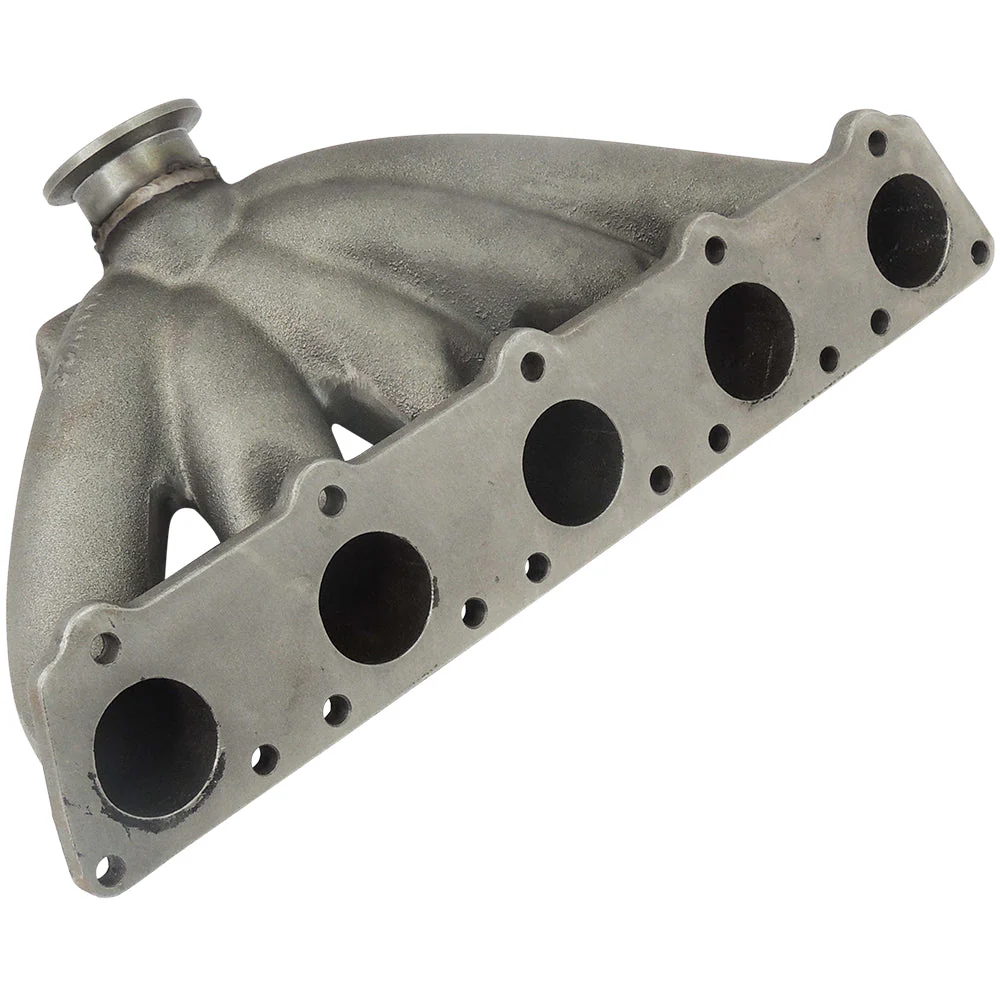

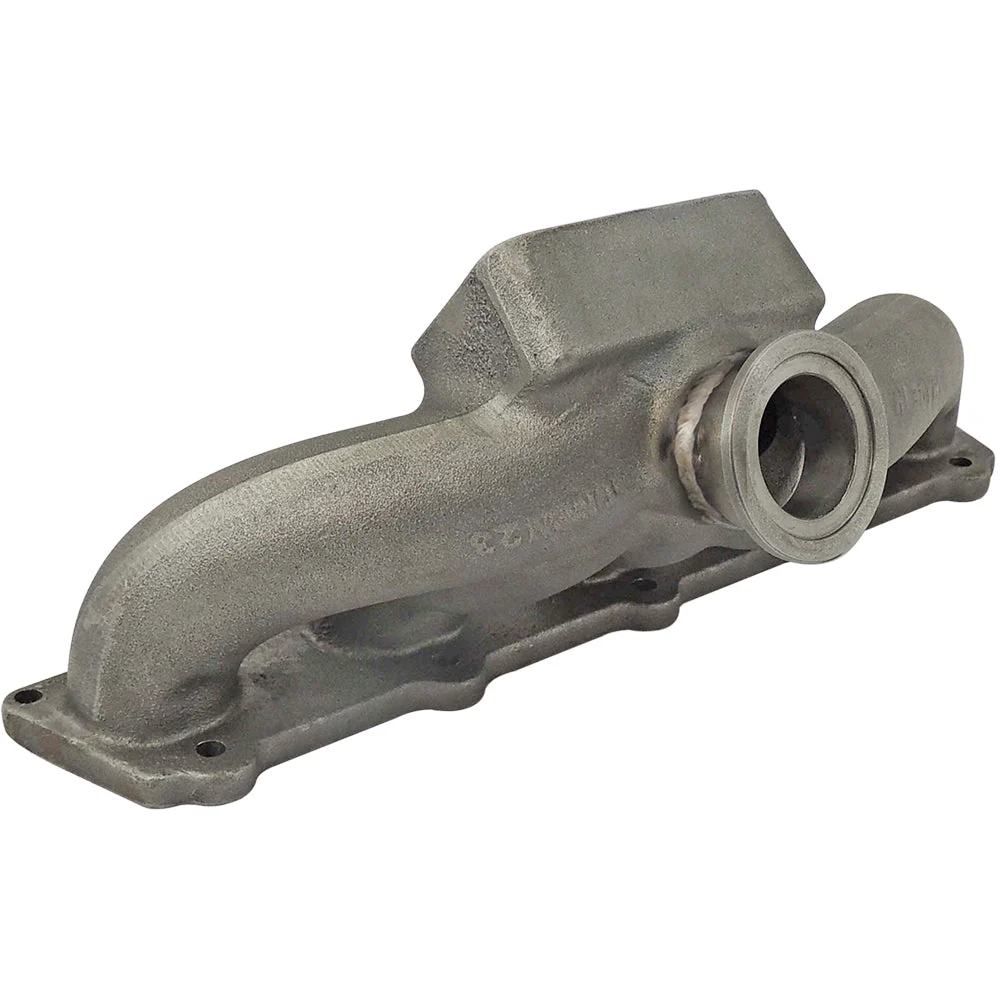

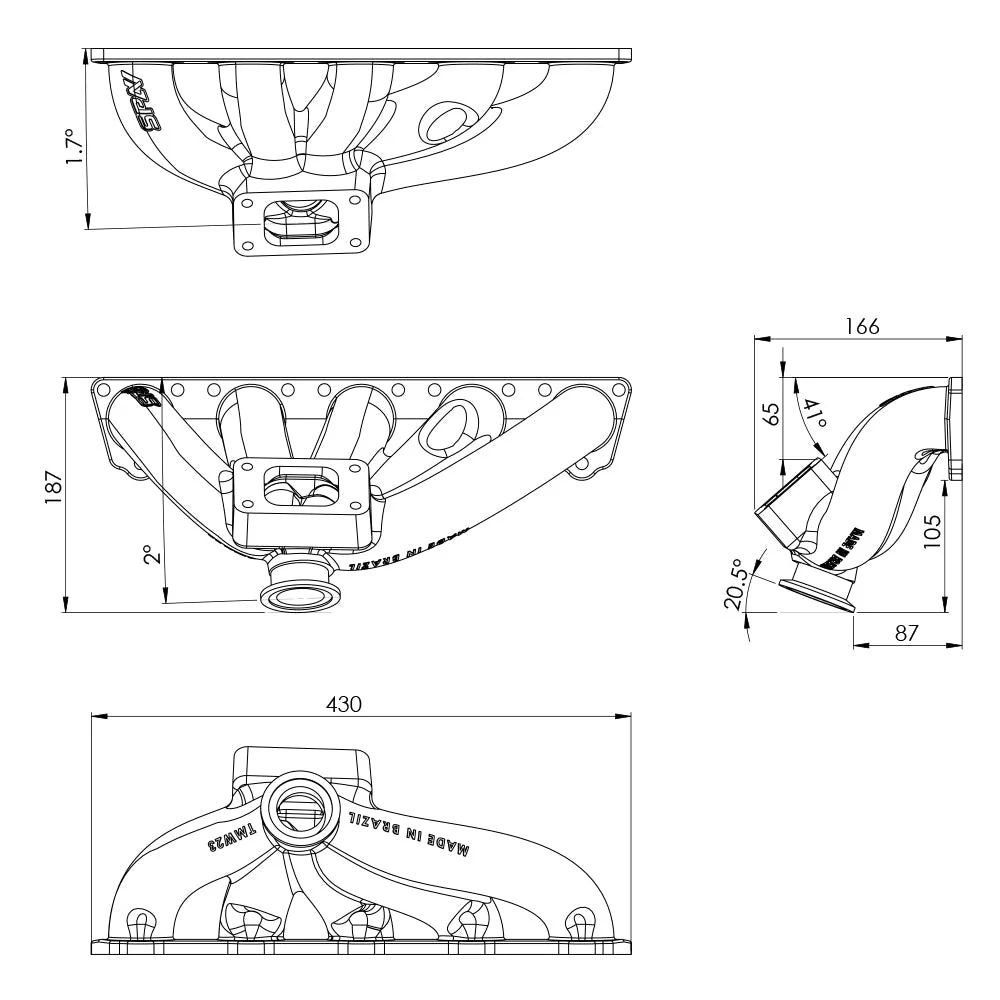

For VW Jetta / Golf MK5 2.5L 5 cylinder 20V 07K T3 top mount turbo manifold wastegate V-Band

Ā

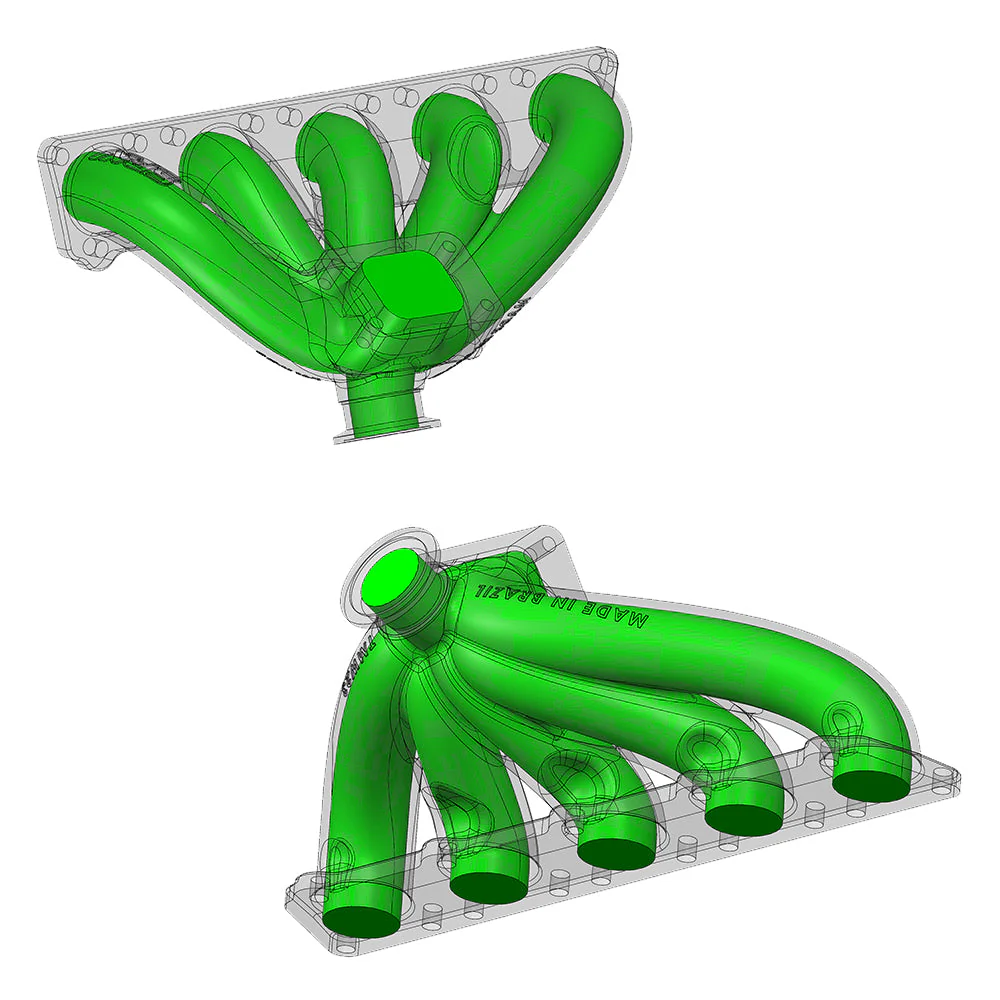

SPA Performance brings another great news for VW 5 cylinder 2.5L lovers! It has better flow compared to the TMW17 thanks to studies by our engineering sector and also accommodates large turbines such as .70, HX40, GT35 and similar and uses a standard 44mm V-Band wastegate valve.

  • Application: Jetta / Golf MK5 (for other adaptations. consult dimensions and check compatibility with your Project).Ā For Jetta and Golf MK4 (swap) clickĀ hereĀ or search for TMW23B.


  • Turbine position: Top mount


  • Turbine housing flange: Standard T3 (hot housing for left side - driver)


  • Wastegate flange: V-Band 44mm


  • Internal diameter runner: 41.5mm


  • Material: Cast iron

Ā

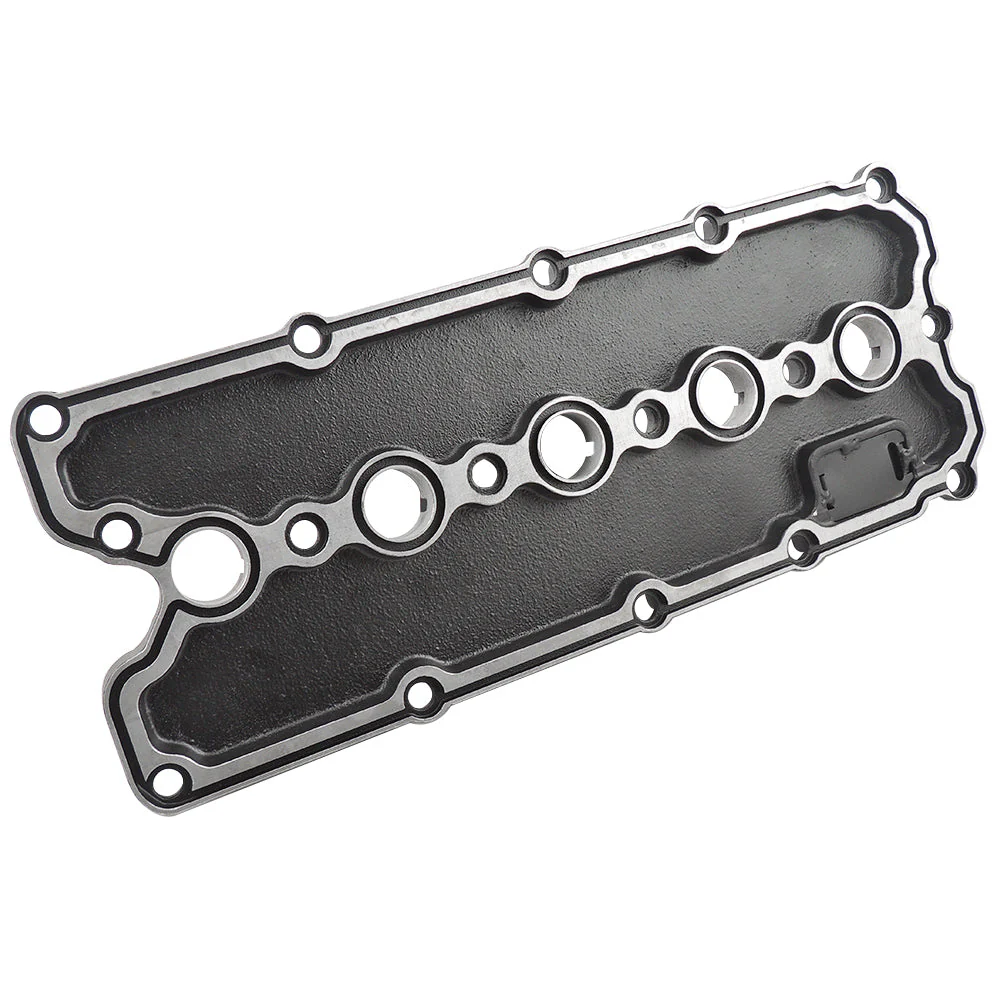

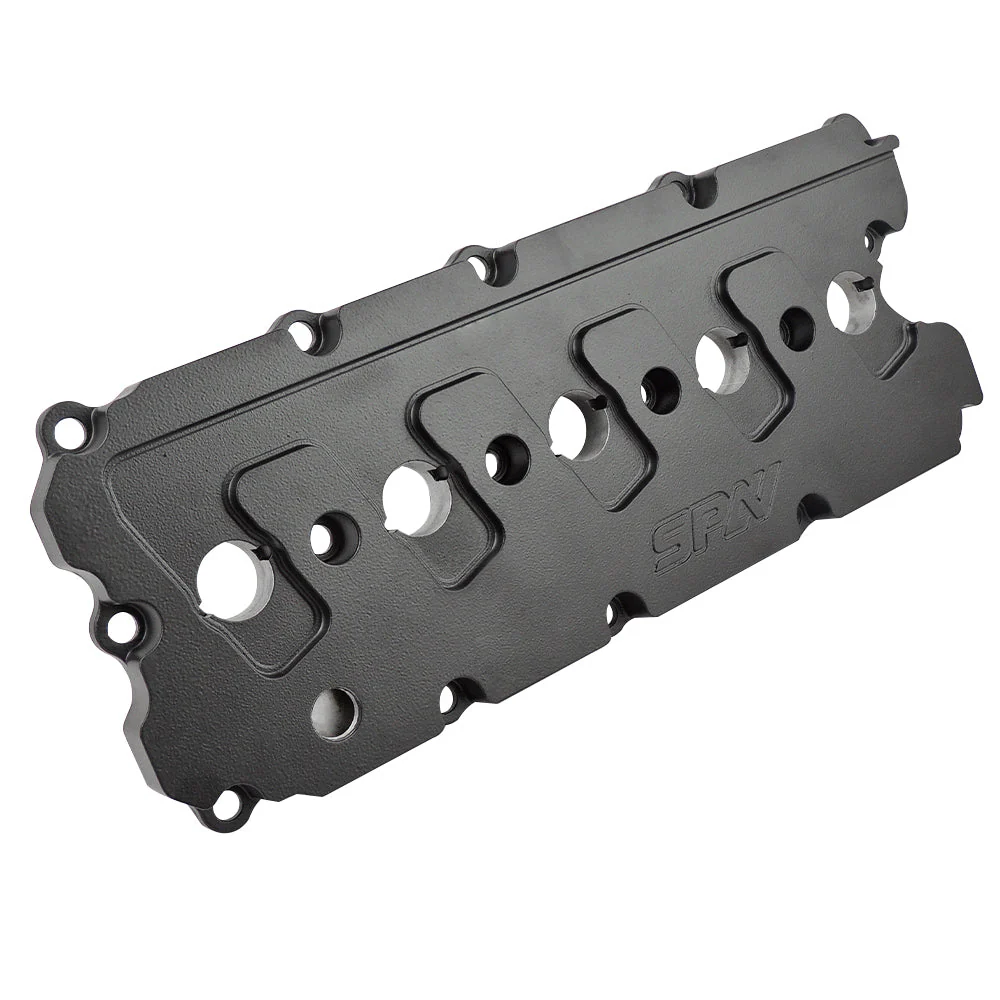

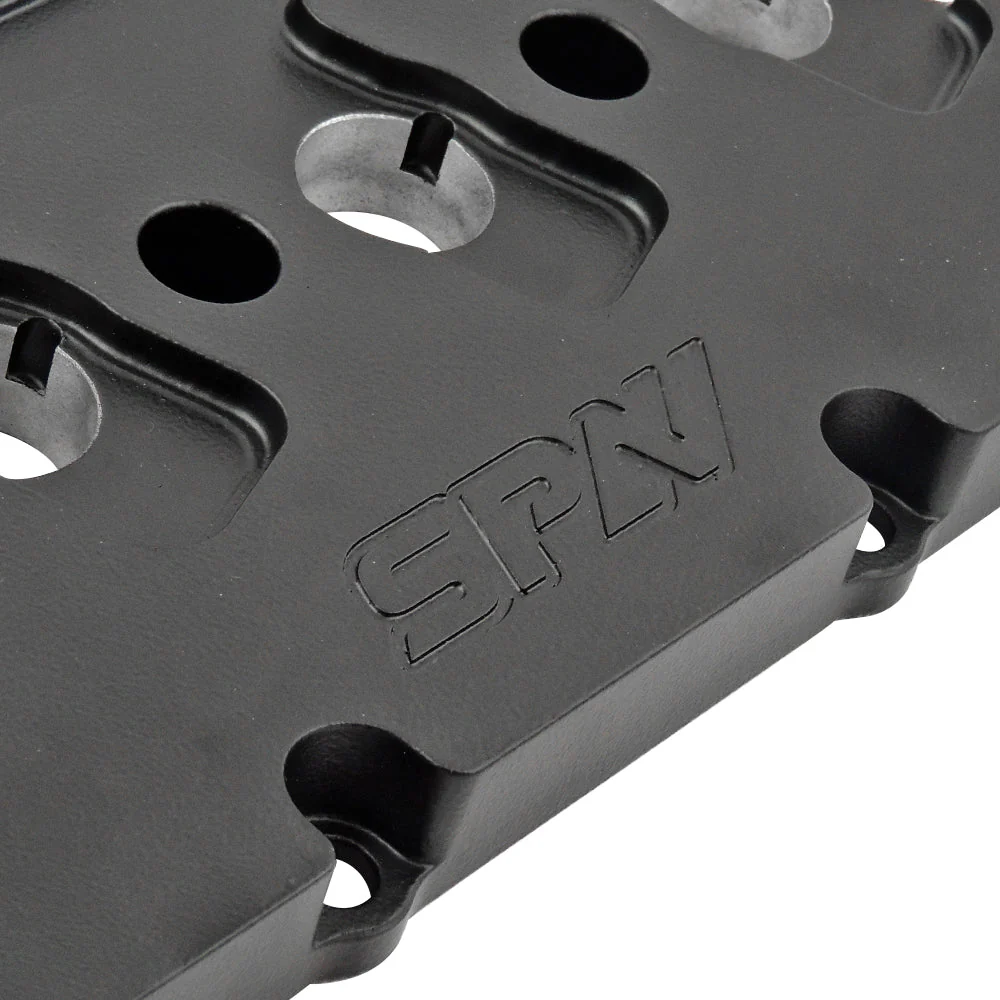

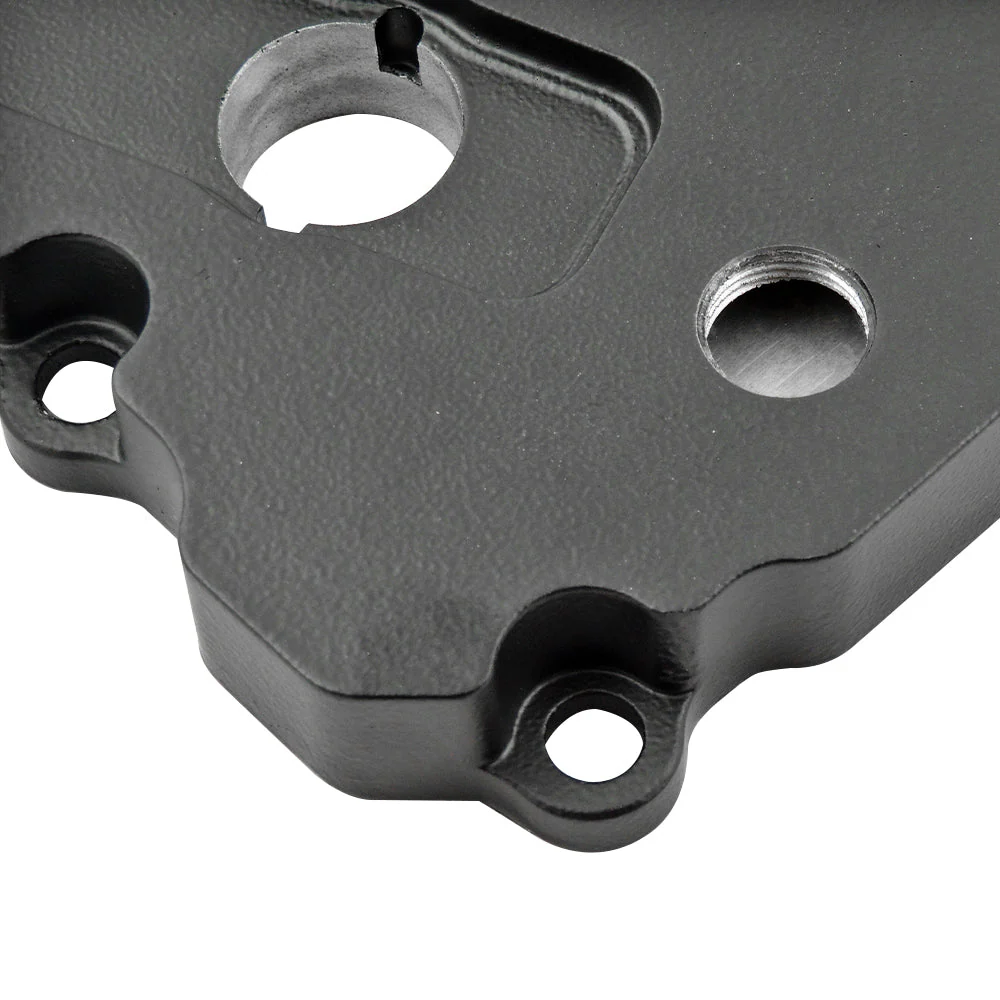

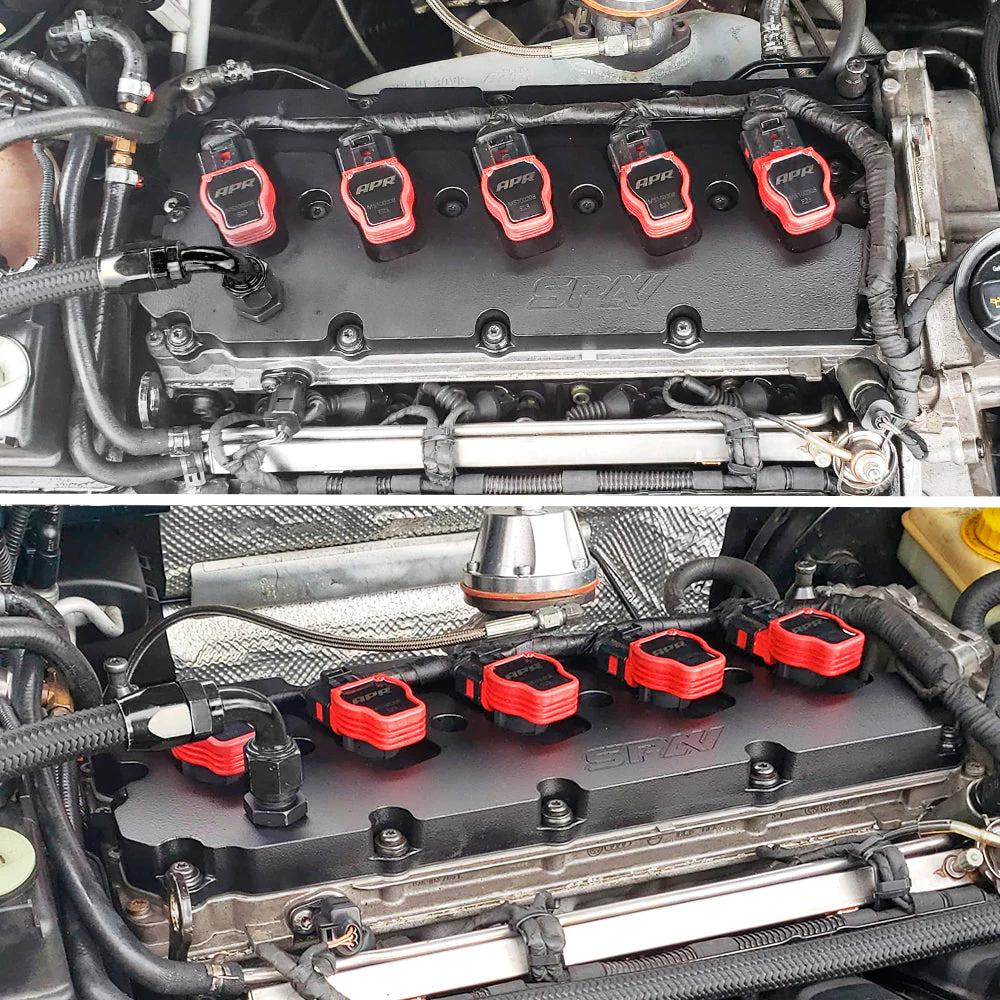

VW 5 cyl 2.5L 20V 07K CAST ALUMINUM VALVE COVER

Ā

The valve cover for VW 2.5 5-cylinder engines is the newest release from SPA Performance, designed to be a direct replacement, itā€™s made of cast aluminum to provide more than enough resistance for any application and it also eliminates the problematic stock breather system (PCV), avoiding headaches and frequent maintenance. It counts with baffles on the outlet to make sure no oil goes to the custom breather system that must be done. All this with a clean and sporty design, with a highly durable black coat finish.

Application: VW 5 cyl 2.5L 20V FSI (07K)
Material: Cast aluminum
Finish: black coat
Uses stock gasket - 07K 103 483 B (not included)
Breather outlet: -10AN

Ā

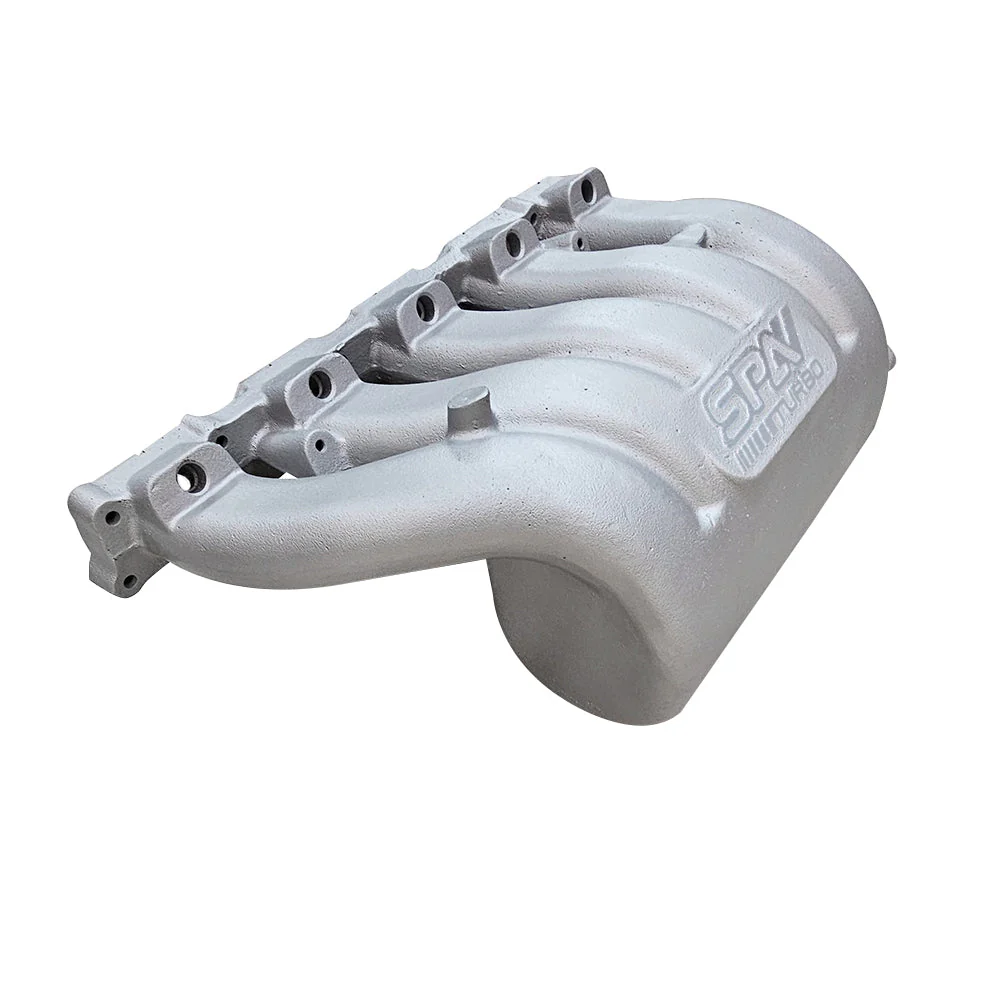

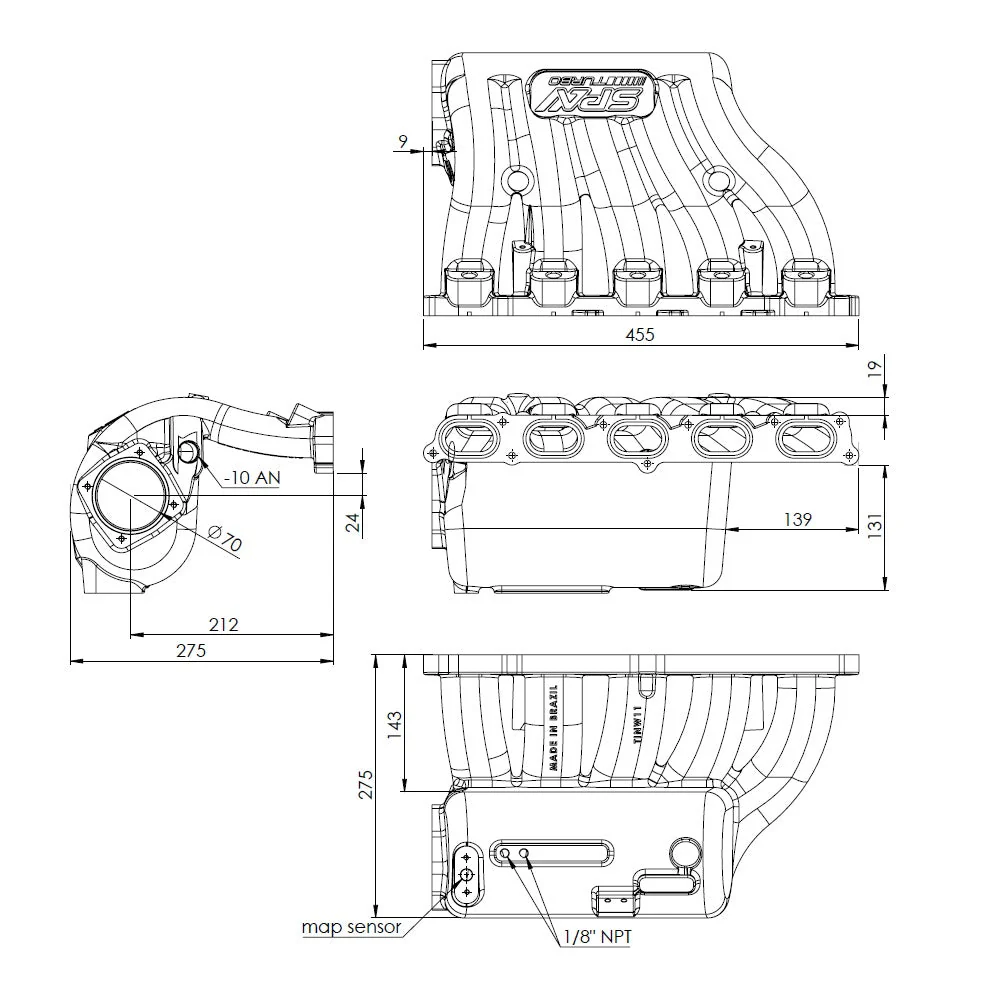

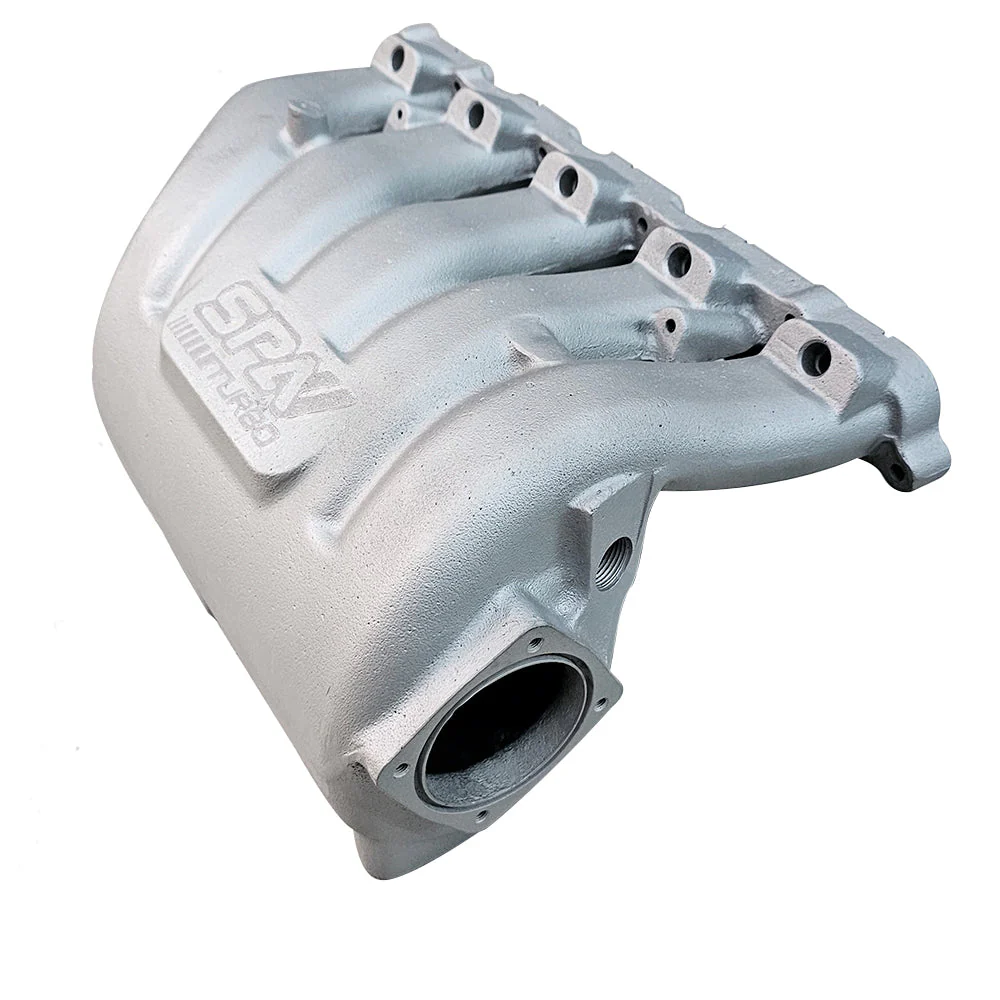

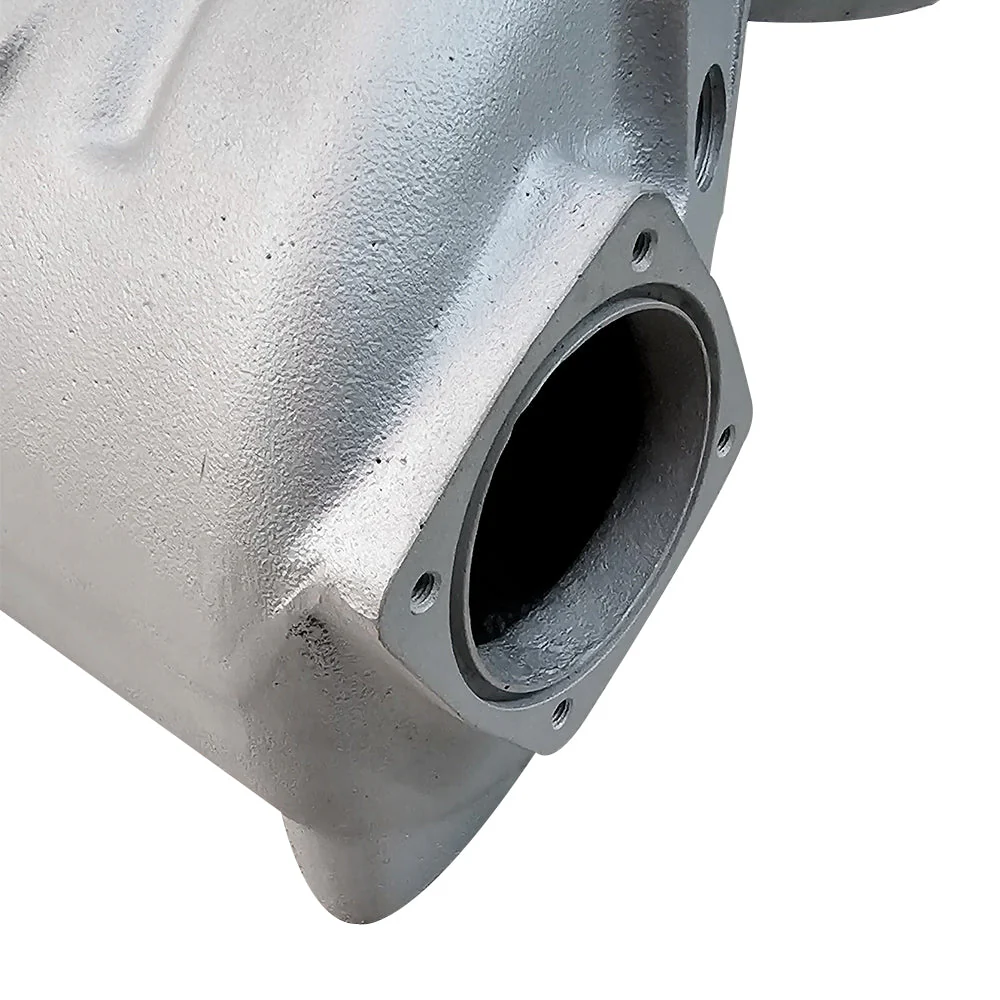

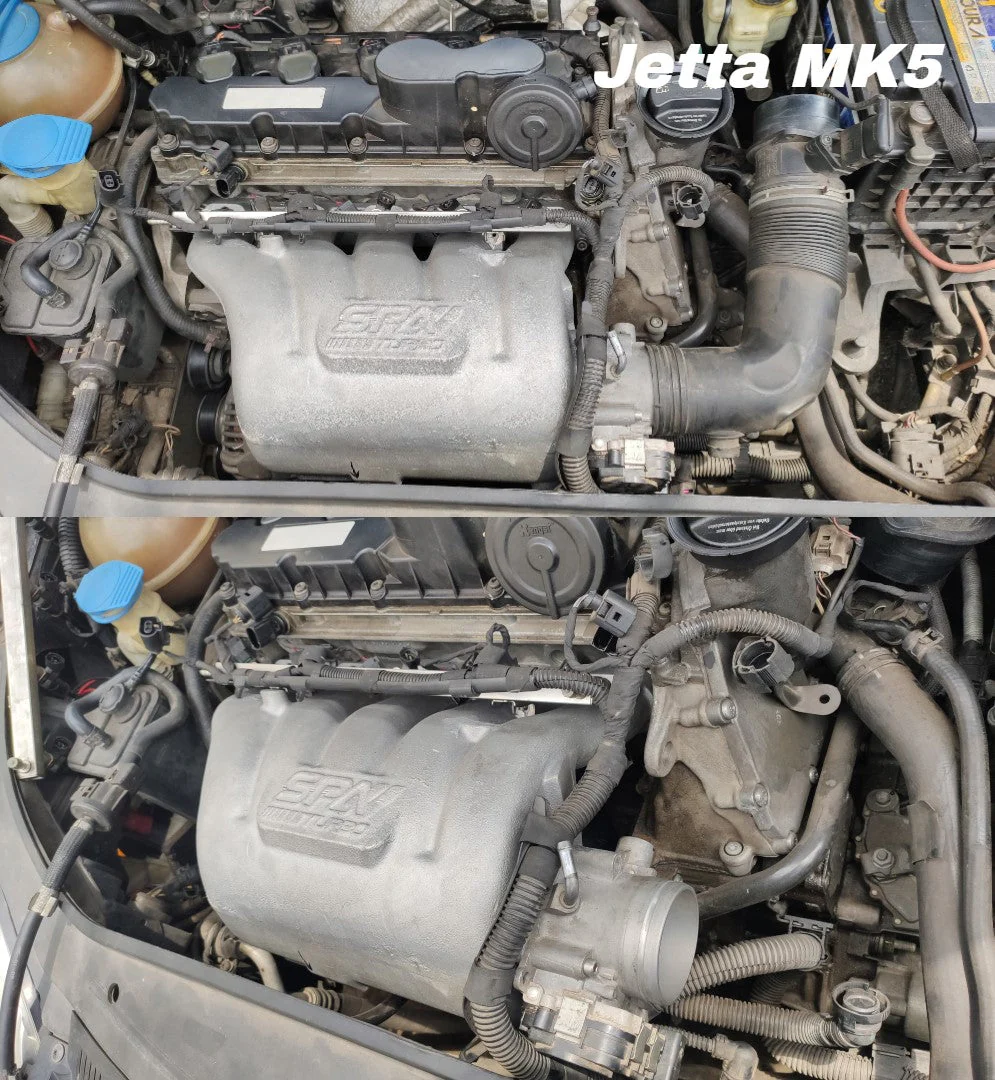

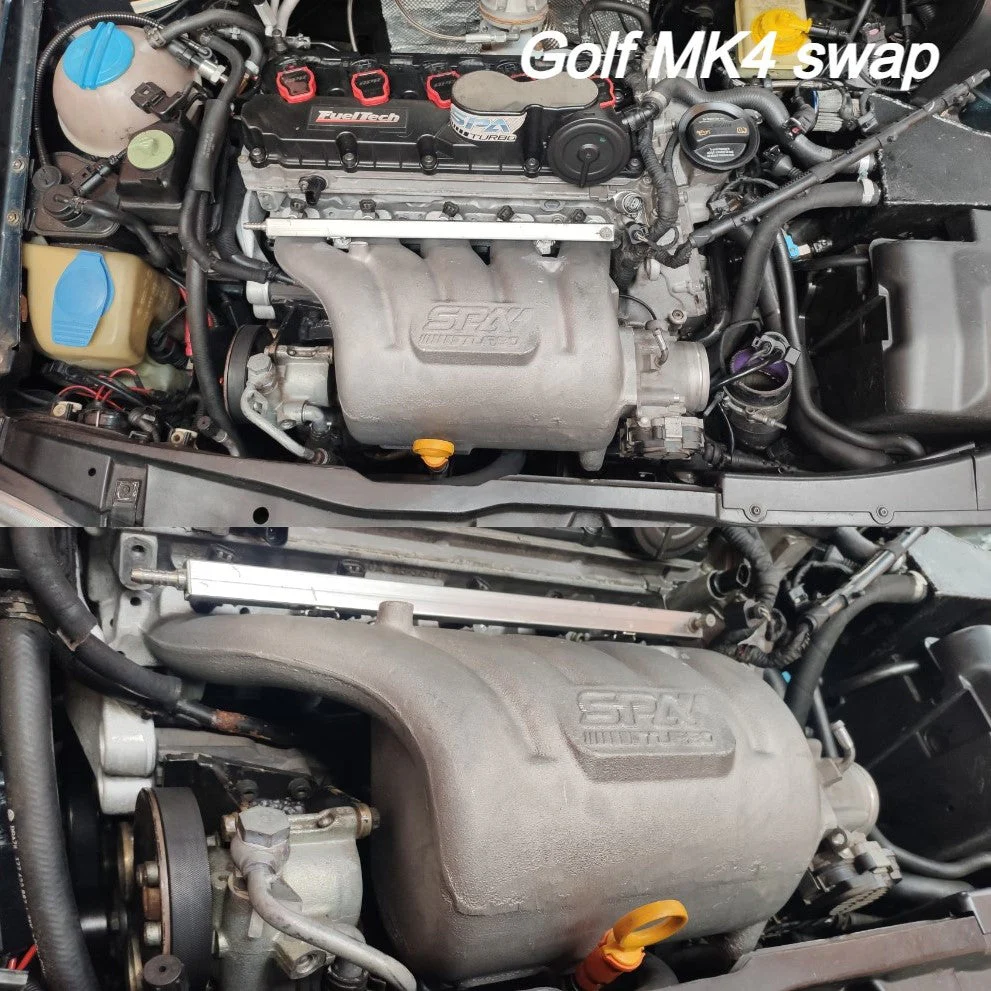

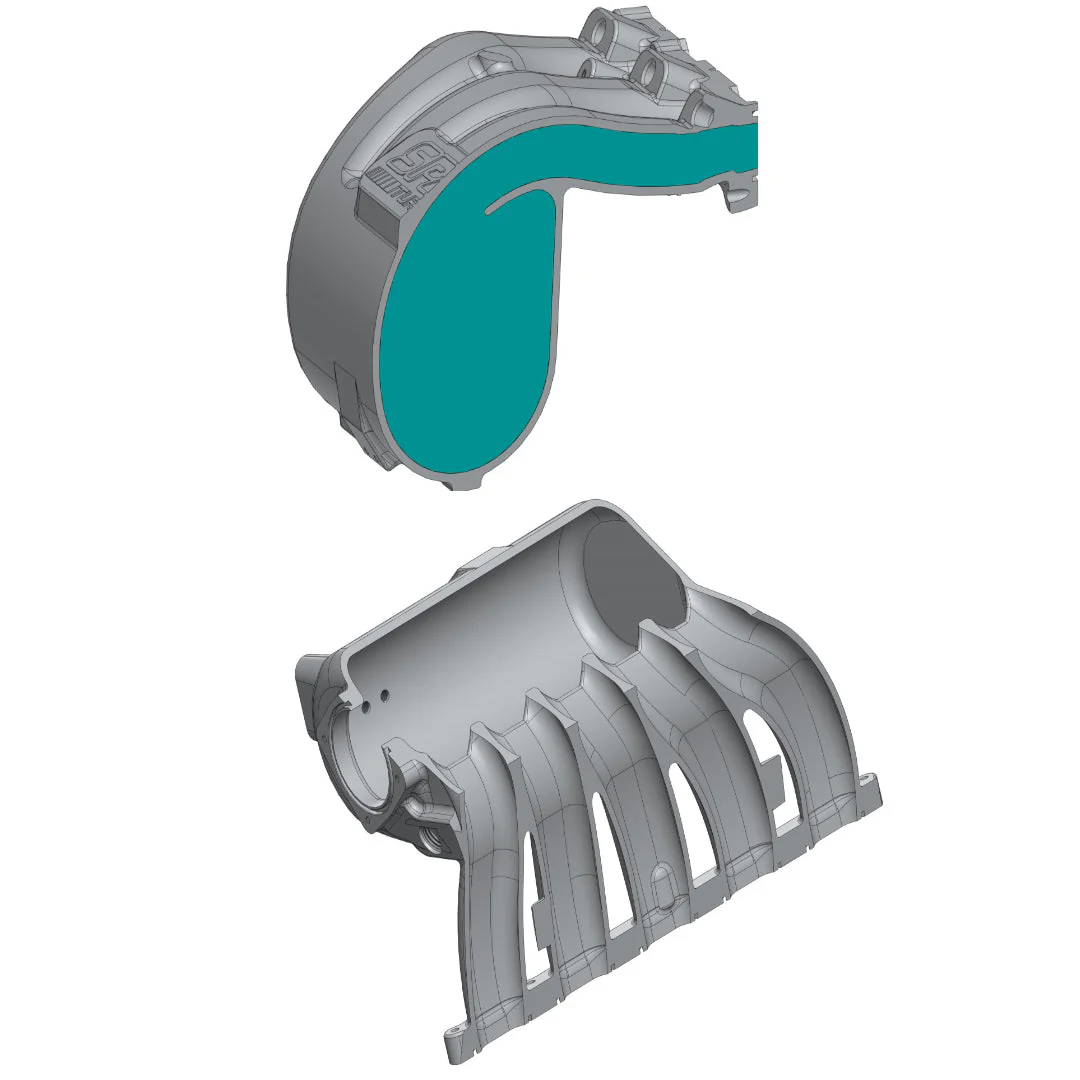

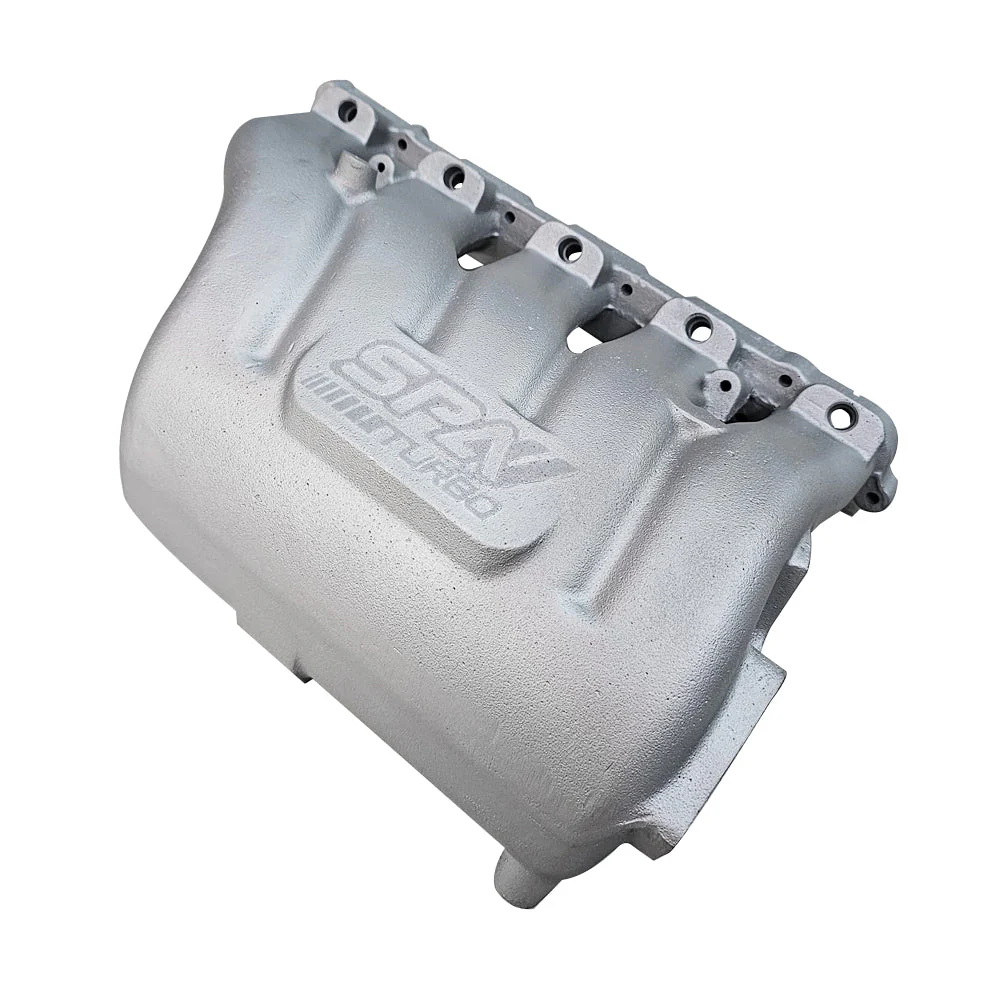

VW 2.5L 5 CYLINDER 20V 07K CAST ALUMINUM INTAKE MANIFOLD

Ā

The new intake manifold for the VW 2.5L 5 cylinder engine is the newest release from SPA Turbo! t's 100% cast aluminum, with no welds, allowing you to increase the boost without fear of sending the stock intake manifold flying!

  • Application: VW 5 cyl 2.5L 20V FSI (compatible with hydraulic and electric steering)
  • Number of injectors: 5
  • Fuel rail: Stock
  • Fuel railĀ inlet/outlet:Ā Stock
  • Throttle body bolt hole pattern: Stock
  • Max working capacity: 10bar (145psi)
  • Internal volume: 6,2L
  • Material: Cast aluminum
  • Compatible with hydraulic and electric steering.
  • Includes:
    Fitting for stock breather hose (-10AN).
    2X 1/8" NPT block off (if vacuum ports are not used).
    Oil dipstick holder.
  • Compatible with original MAP sensor - ref. 0261230095 (not included).
  • Not compatible with the original plastic engine cover.
