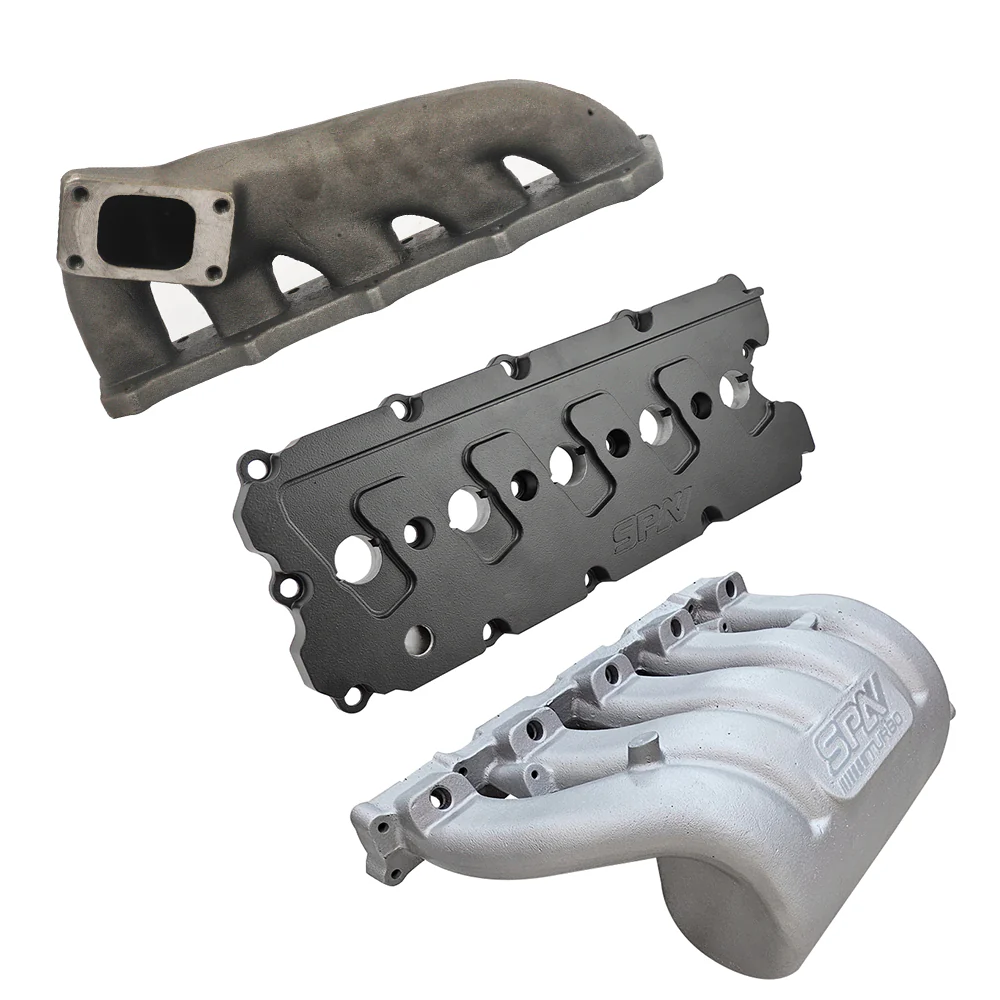

Turbo manifold, cast aluminum valve cover & intake manifold for VW 5 cyl 07K 2.5L 20v FSI T3

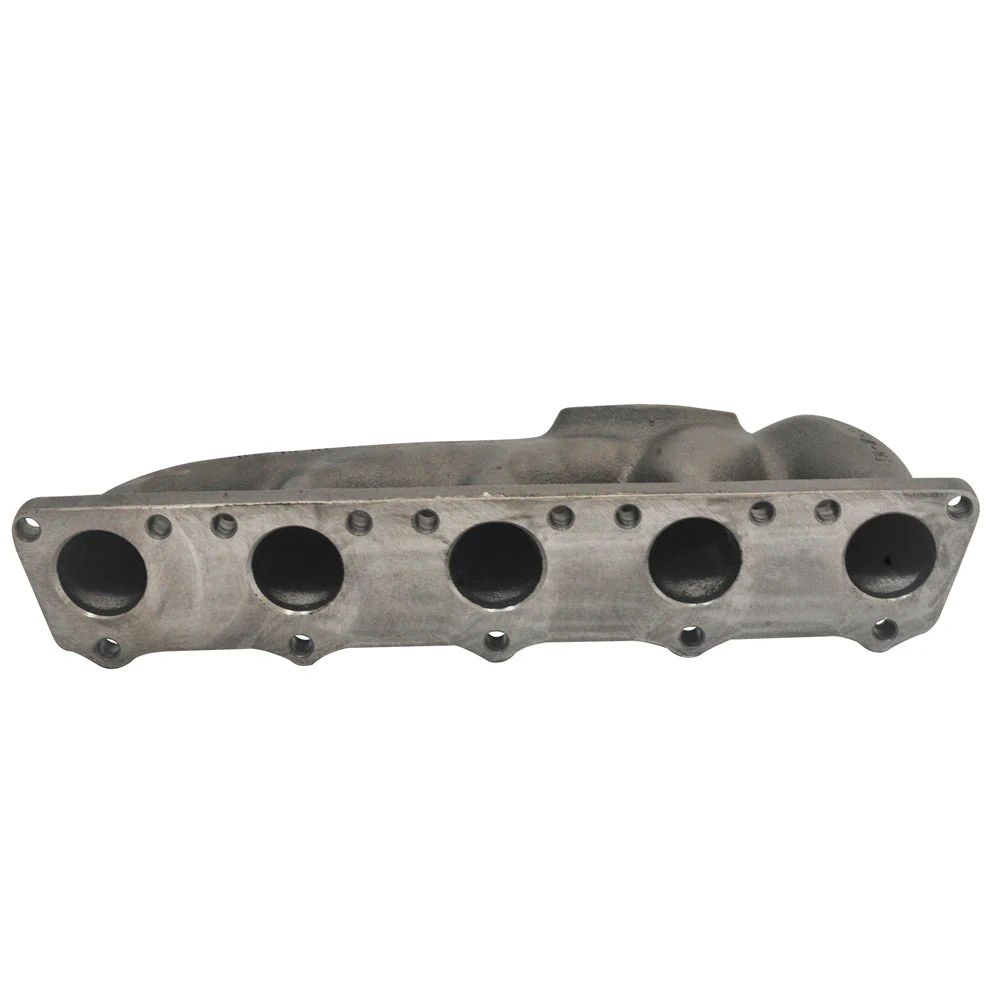

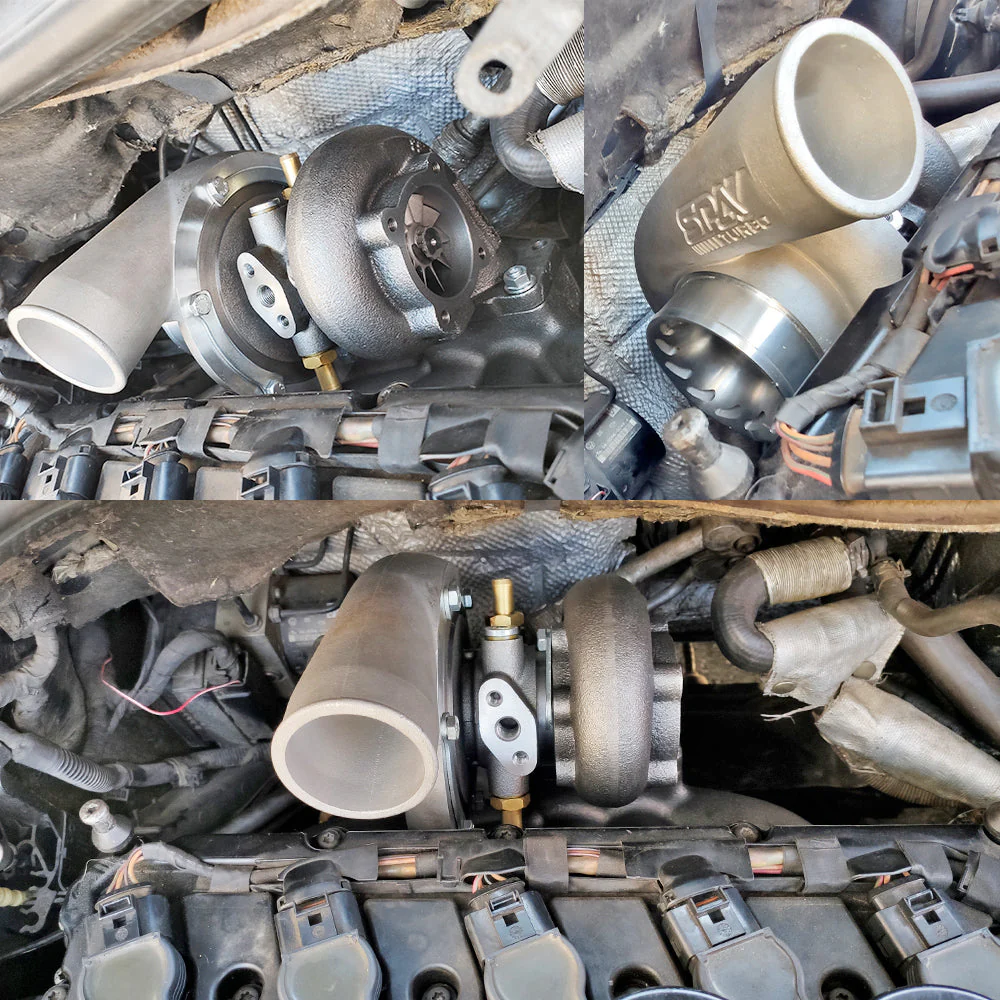

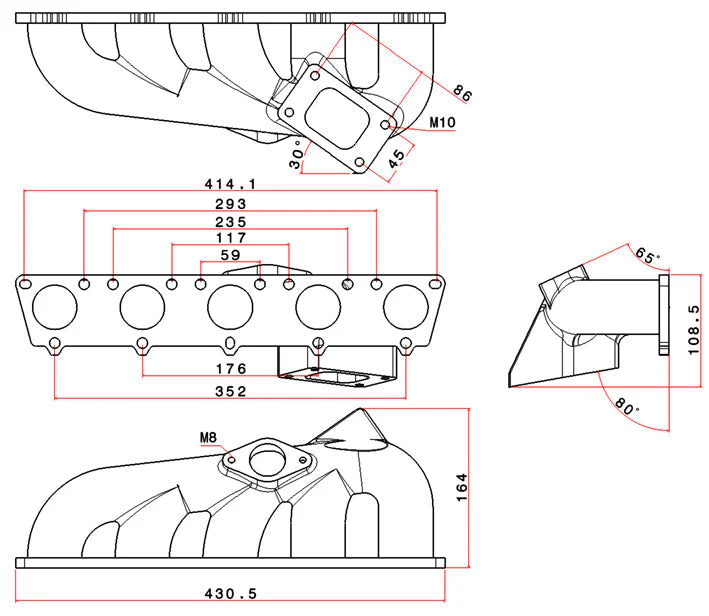

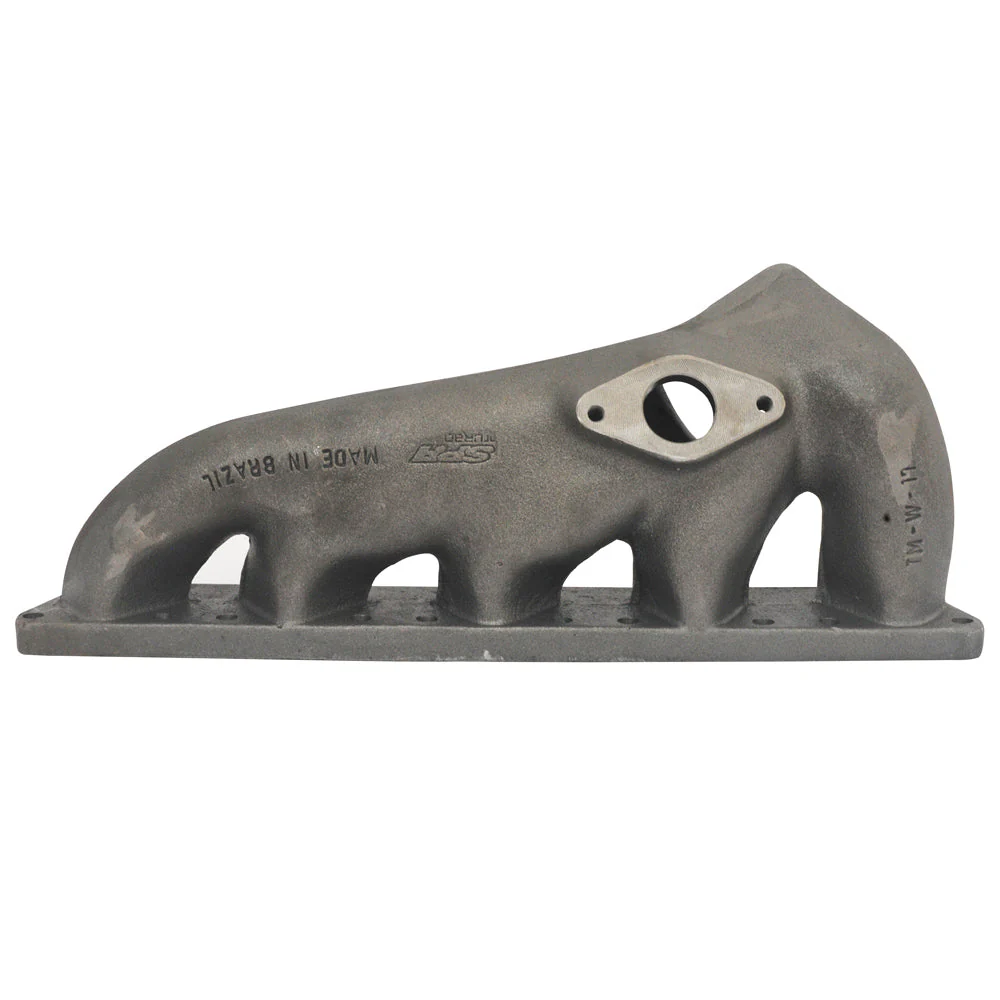

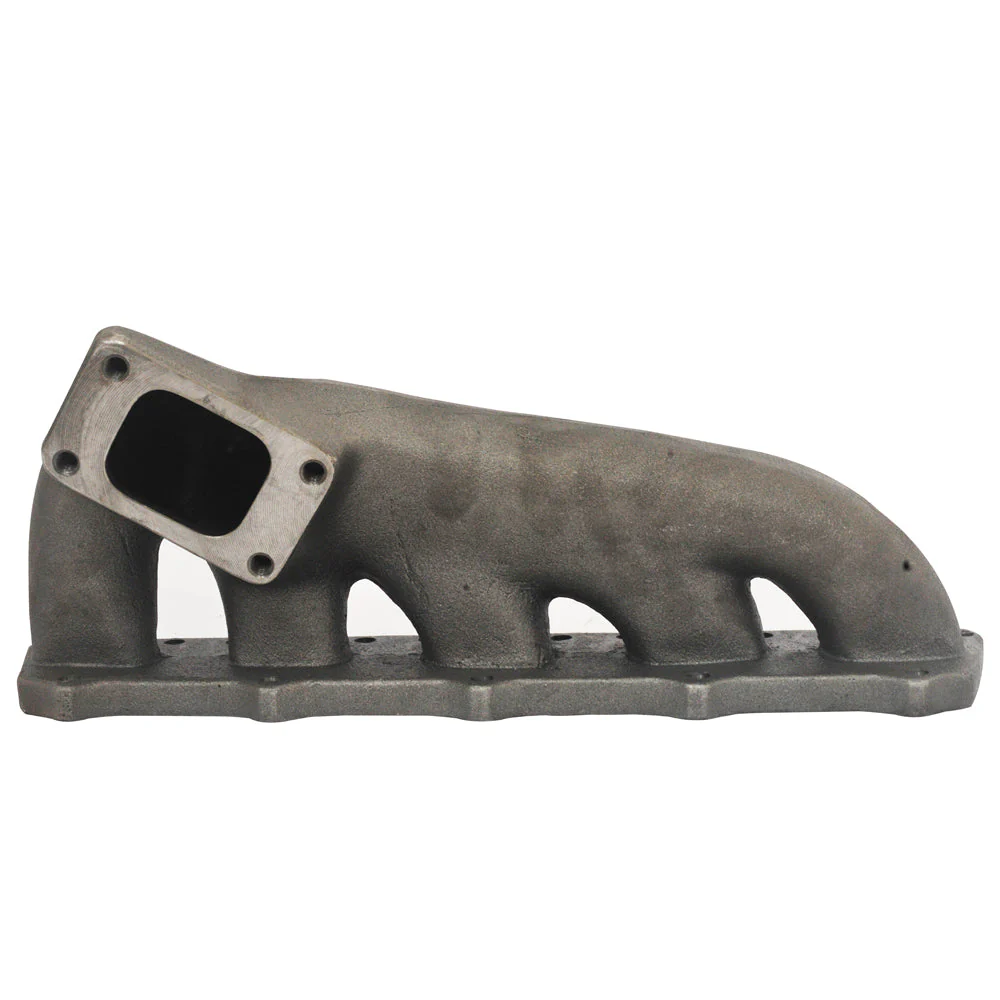

VW 5 cyl 07K 2.5L 20v FSI T3 High Performance Turbo Exhaust Manifold
Ā
- The TMW17 manifold is a GGG40 cast manifold, with a T3 turbocharger Flange; manifold accepts 2 bolt 38mm wastegates.
- The application is VW 2.5L 20V FSI engines.
SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.

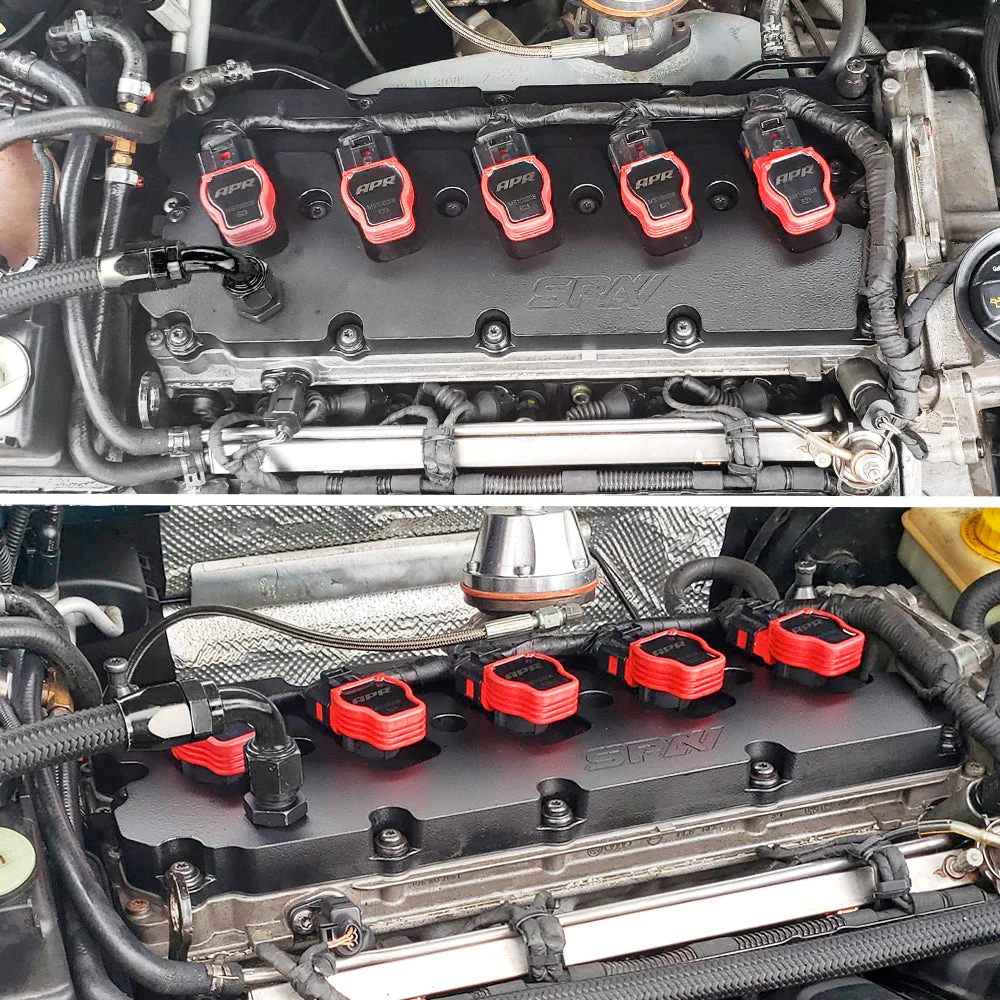

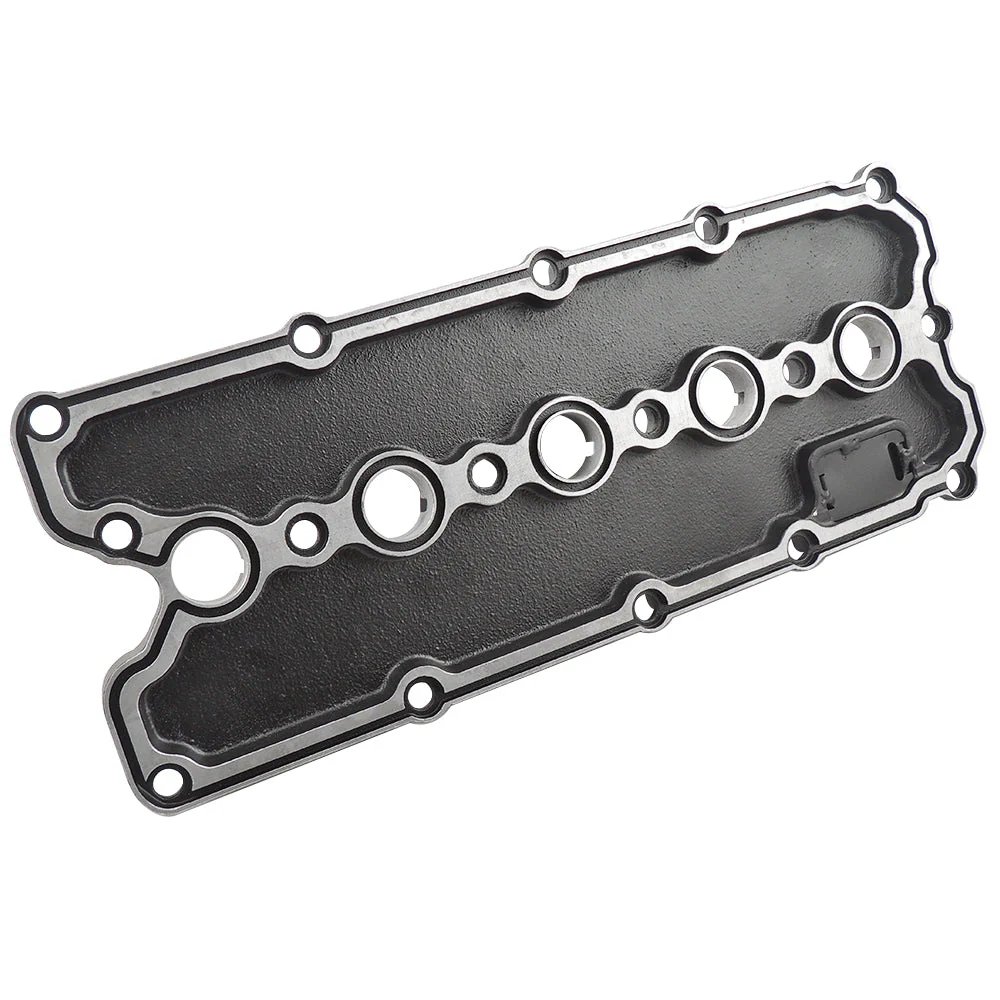

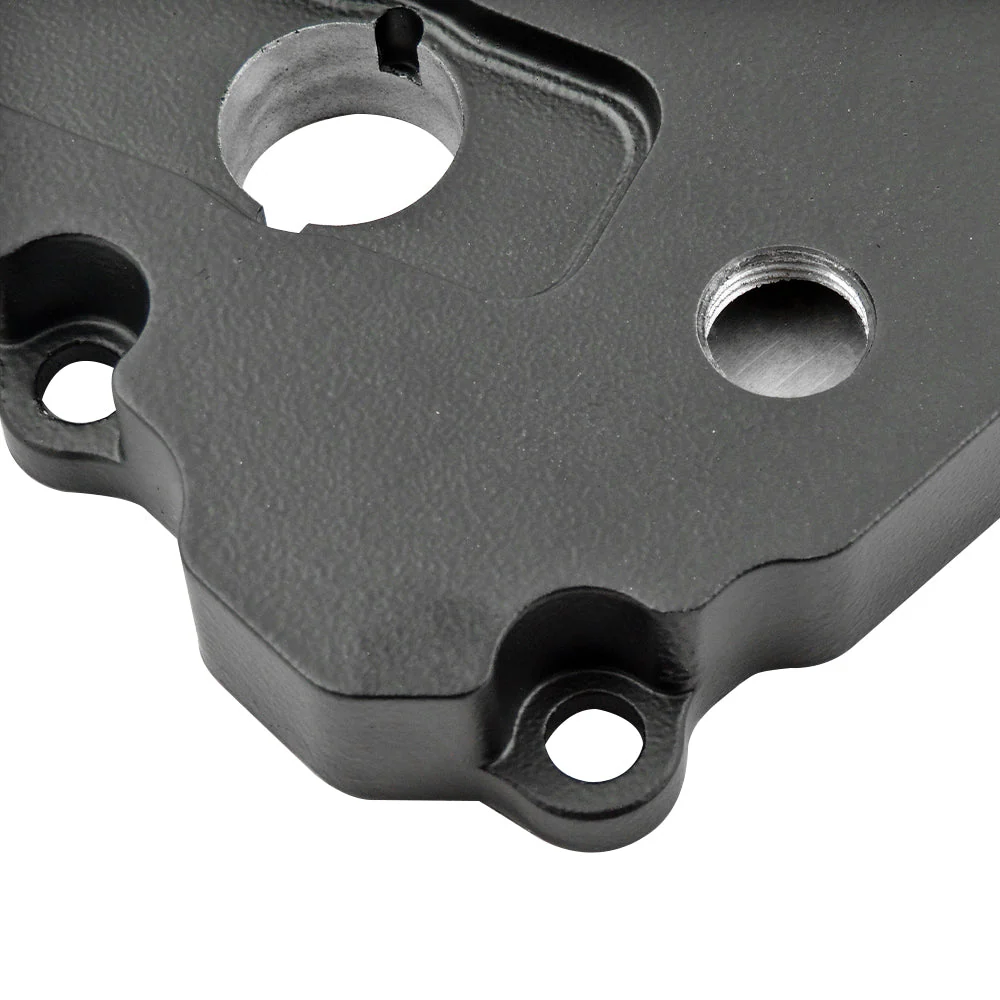

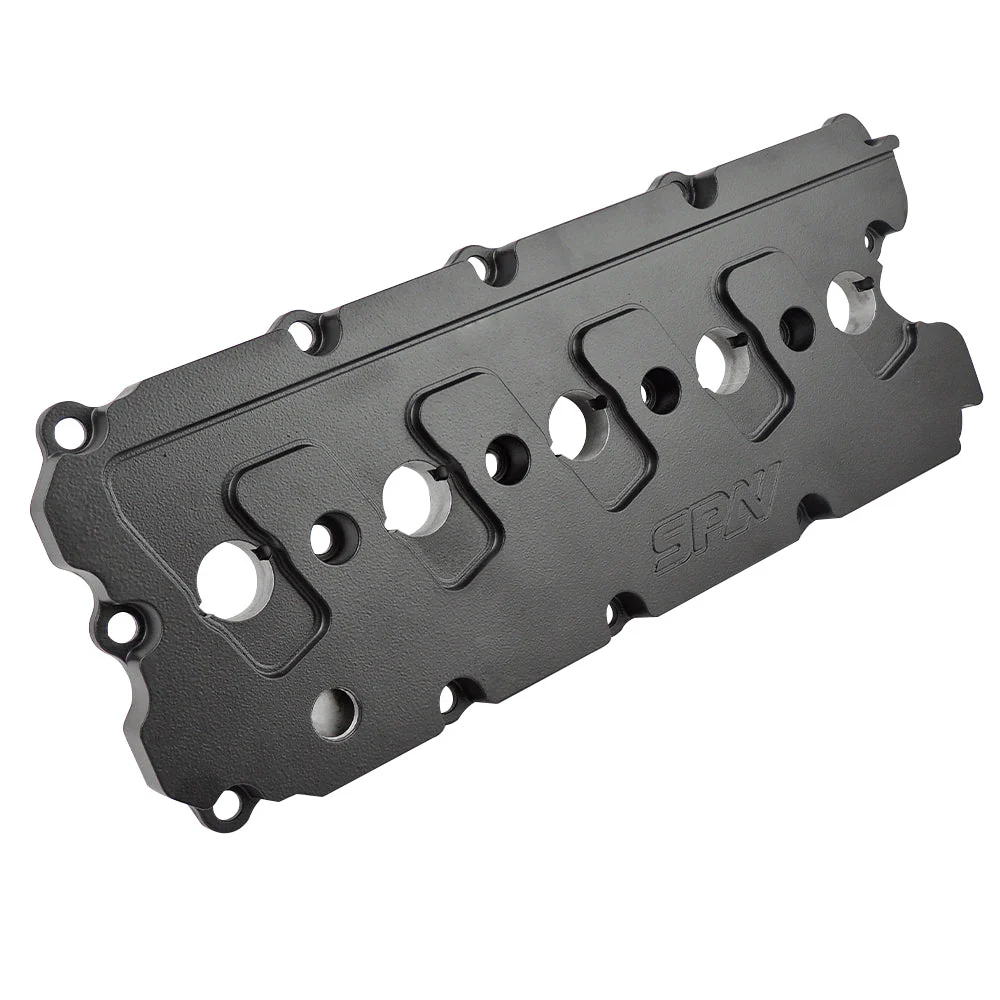

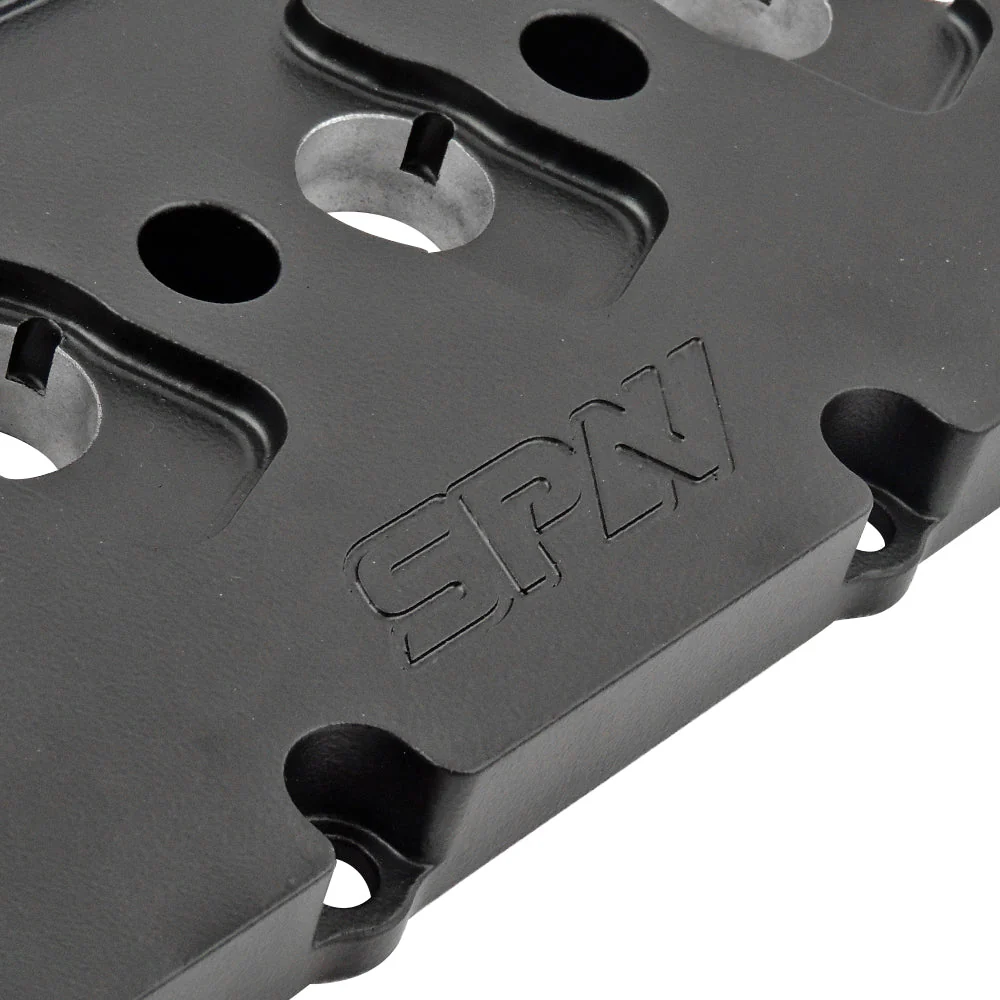

VW 5 cyl 2.5L 20V 07K CAST ALUMINUM VALVE COVER
Ā
The valve cover for VW 2.5 5-cylinder engines is the newest release from SPA Performance, designed to be a direct replacement, itās made of cast aluminum to provide more than enough resistance for any application and it also eliminates the problematic stock breather system (PCV), avoiding headaches and frequent maintenance. It counts with baffles on the outlet to make sure no oil goes to the custom breather system that must be done. All this with a clean and sporty design, with a highly durable black coat finish.
Application: VW 5 cyl 2.5L 20V FSI (07K)
Material: Cast aluminum
Finish: black coat
Uses stock gasket - 07K 103 483 B (not included)
Breather outlet: -10AN
Ā

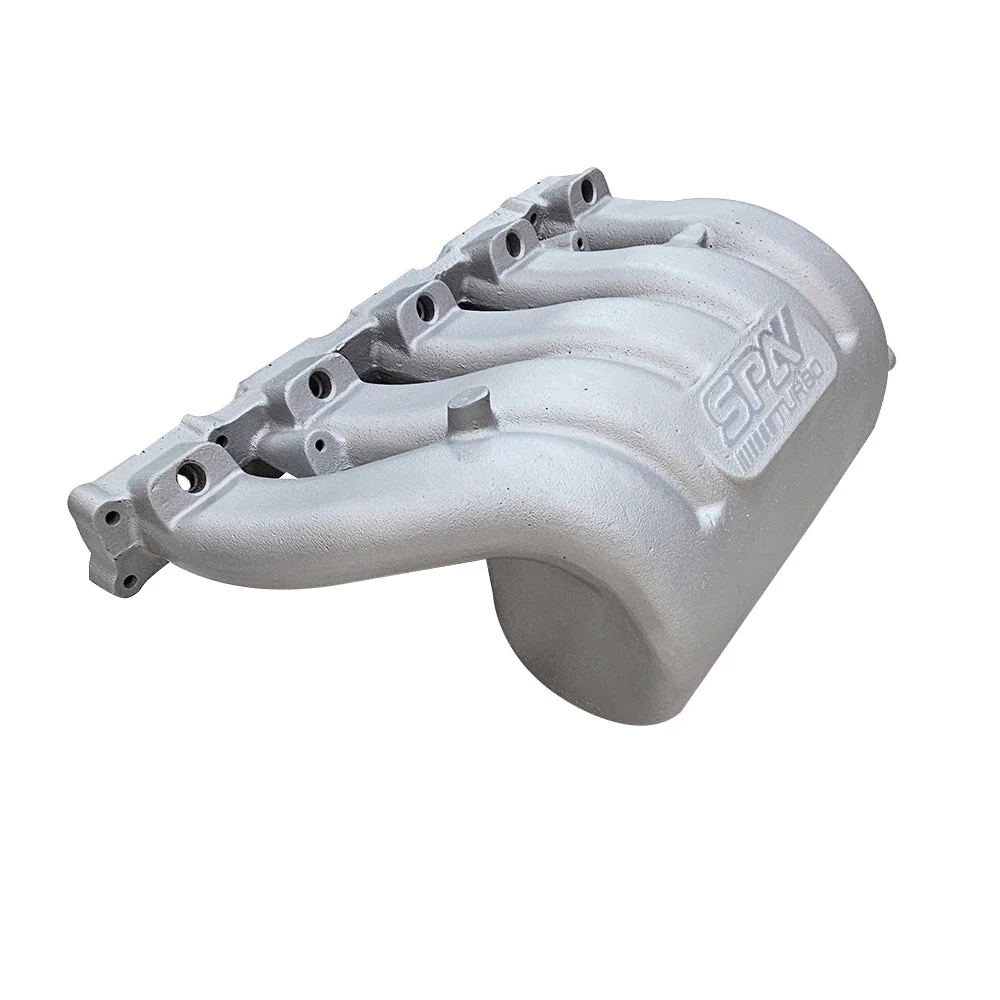

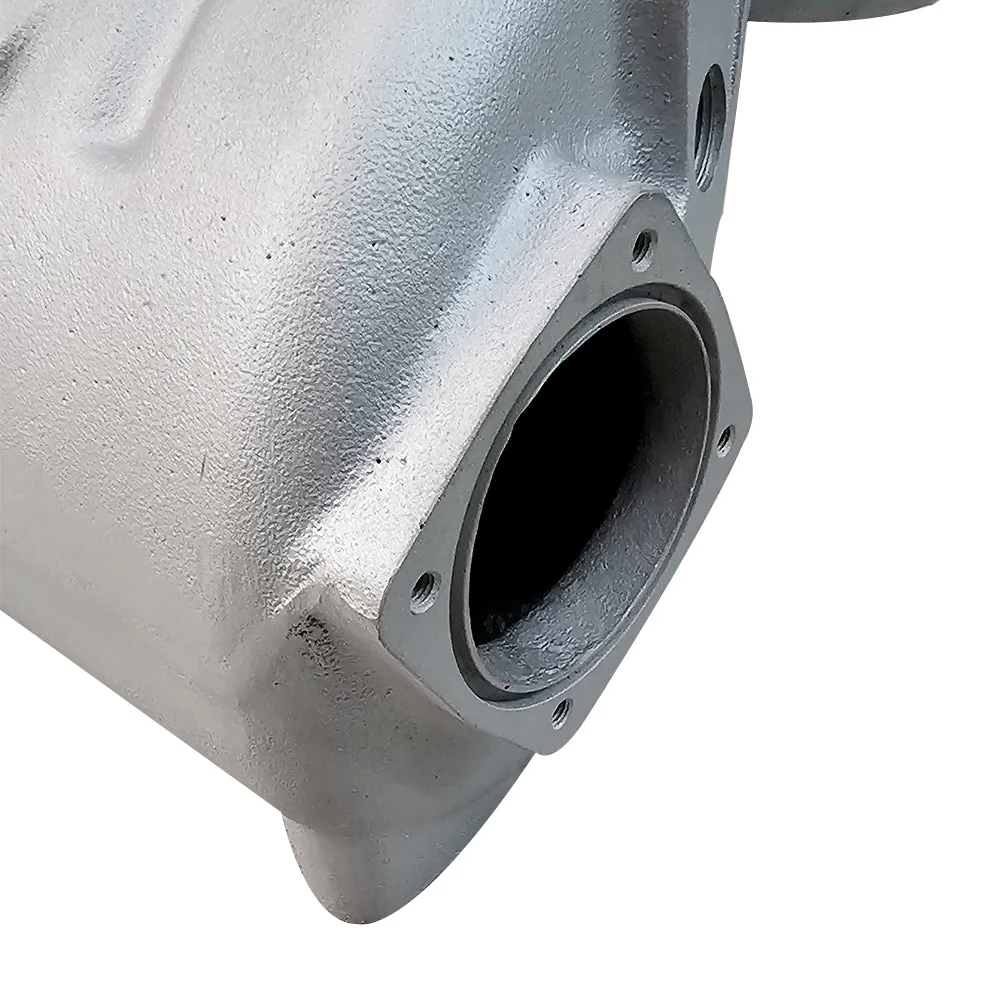

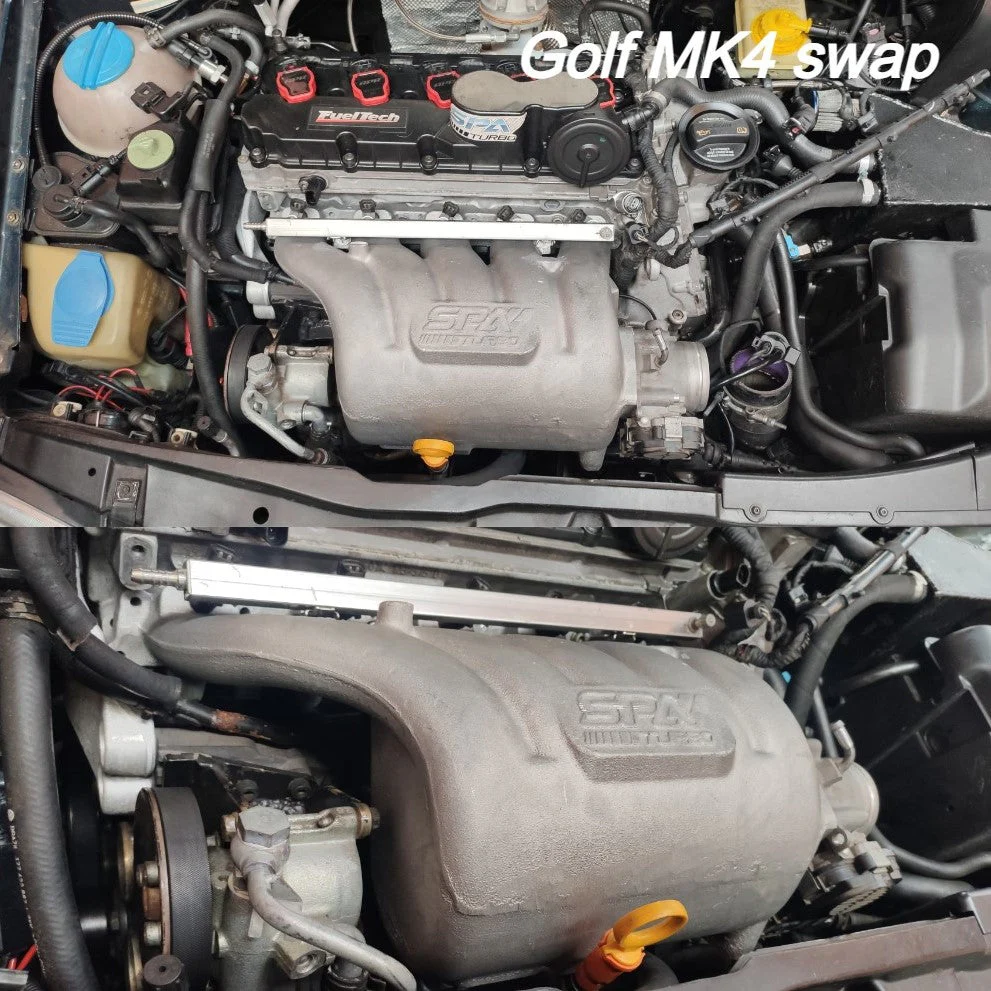

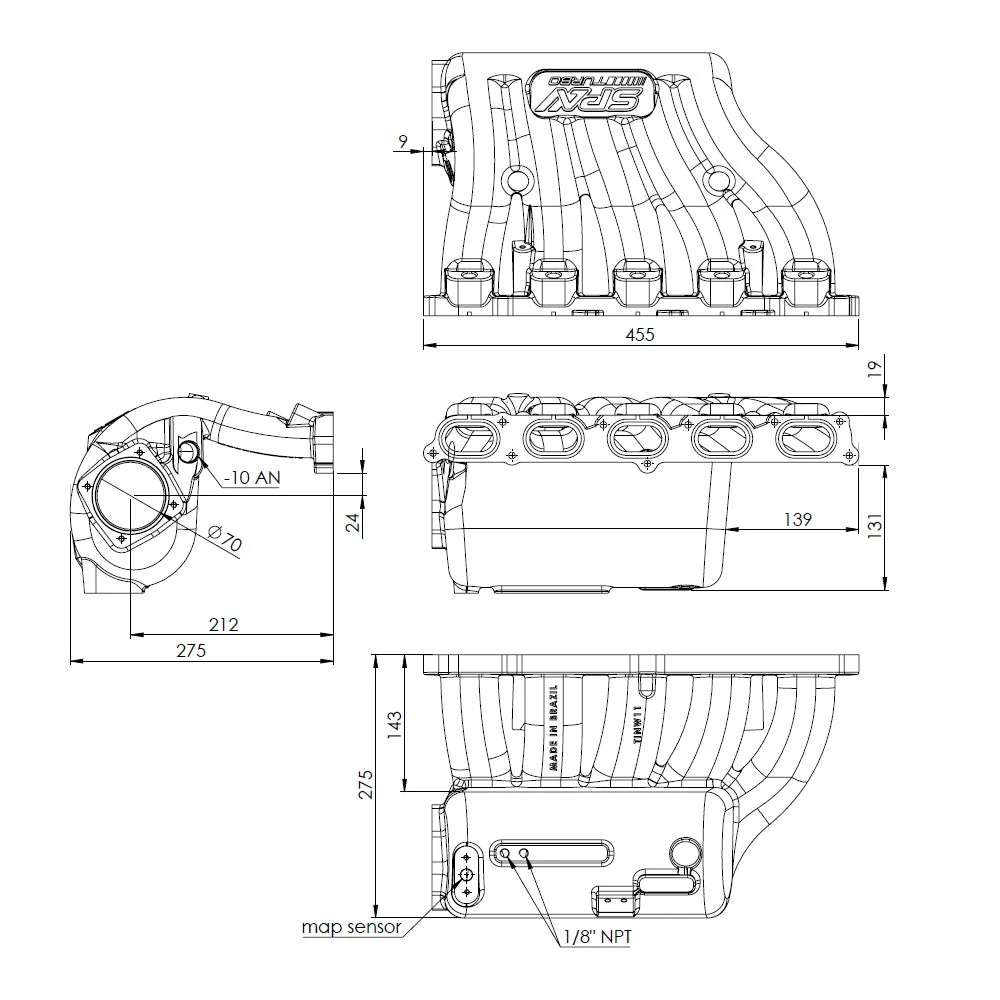

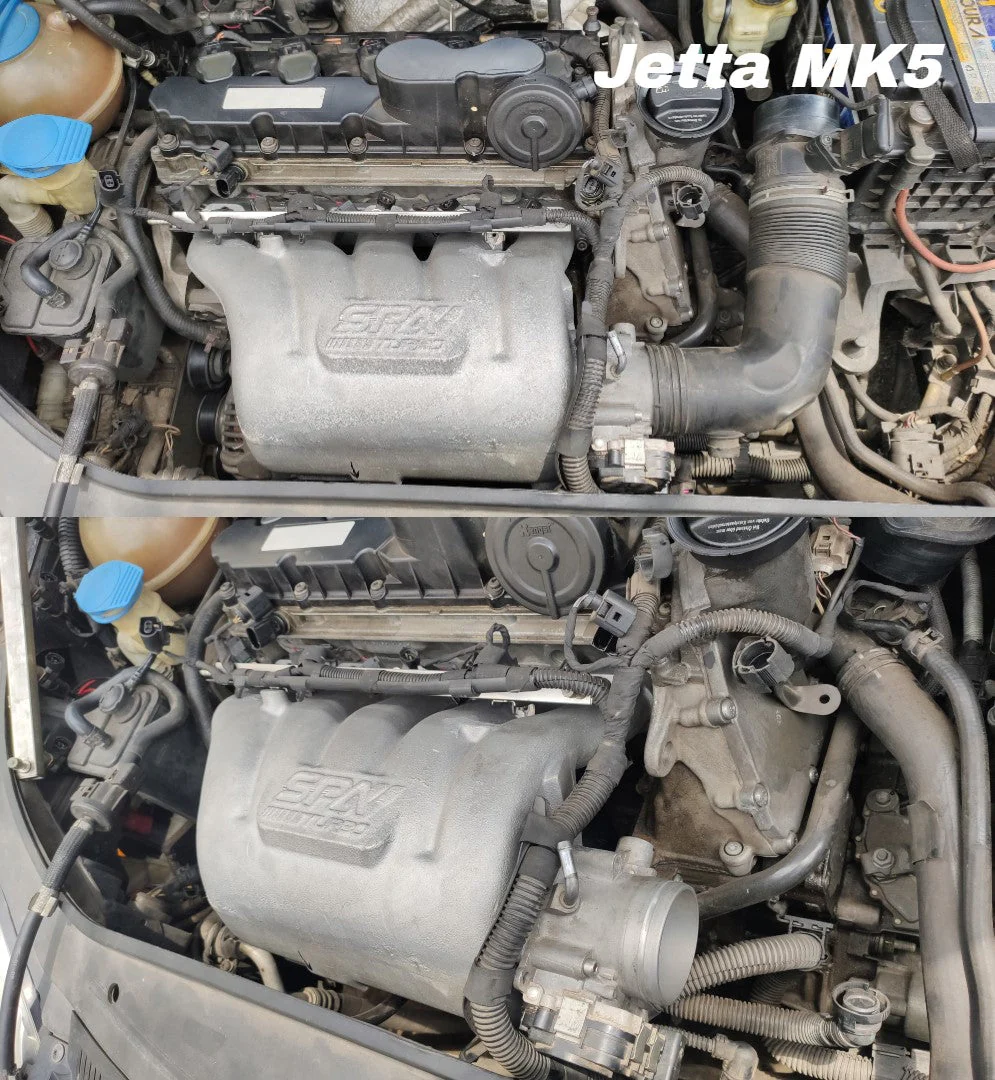

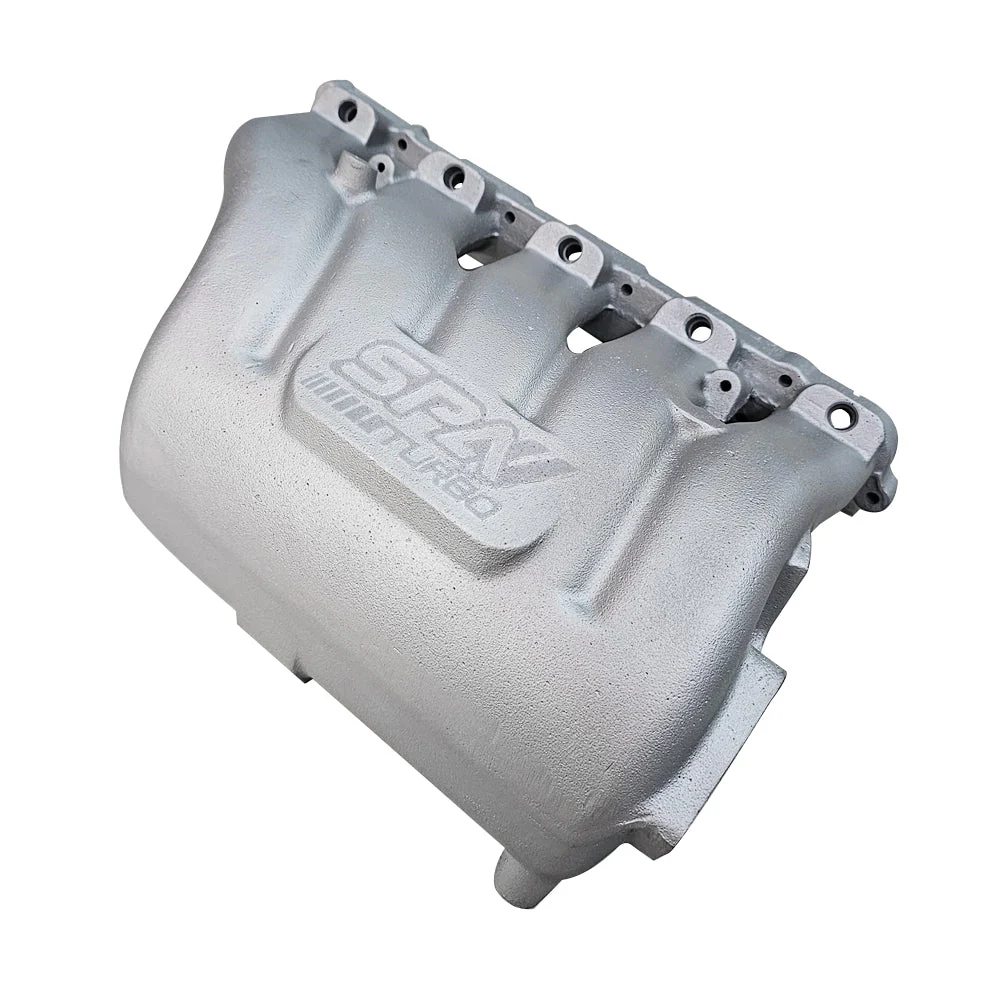

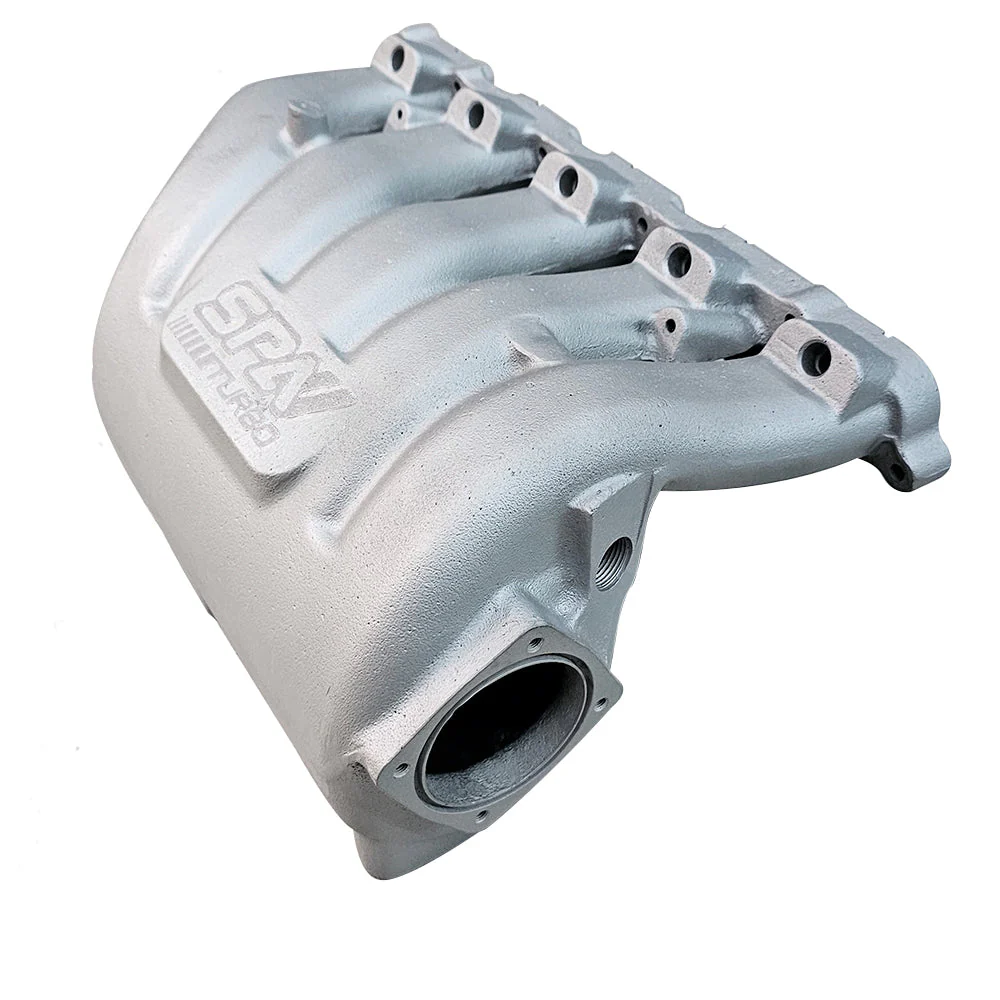

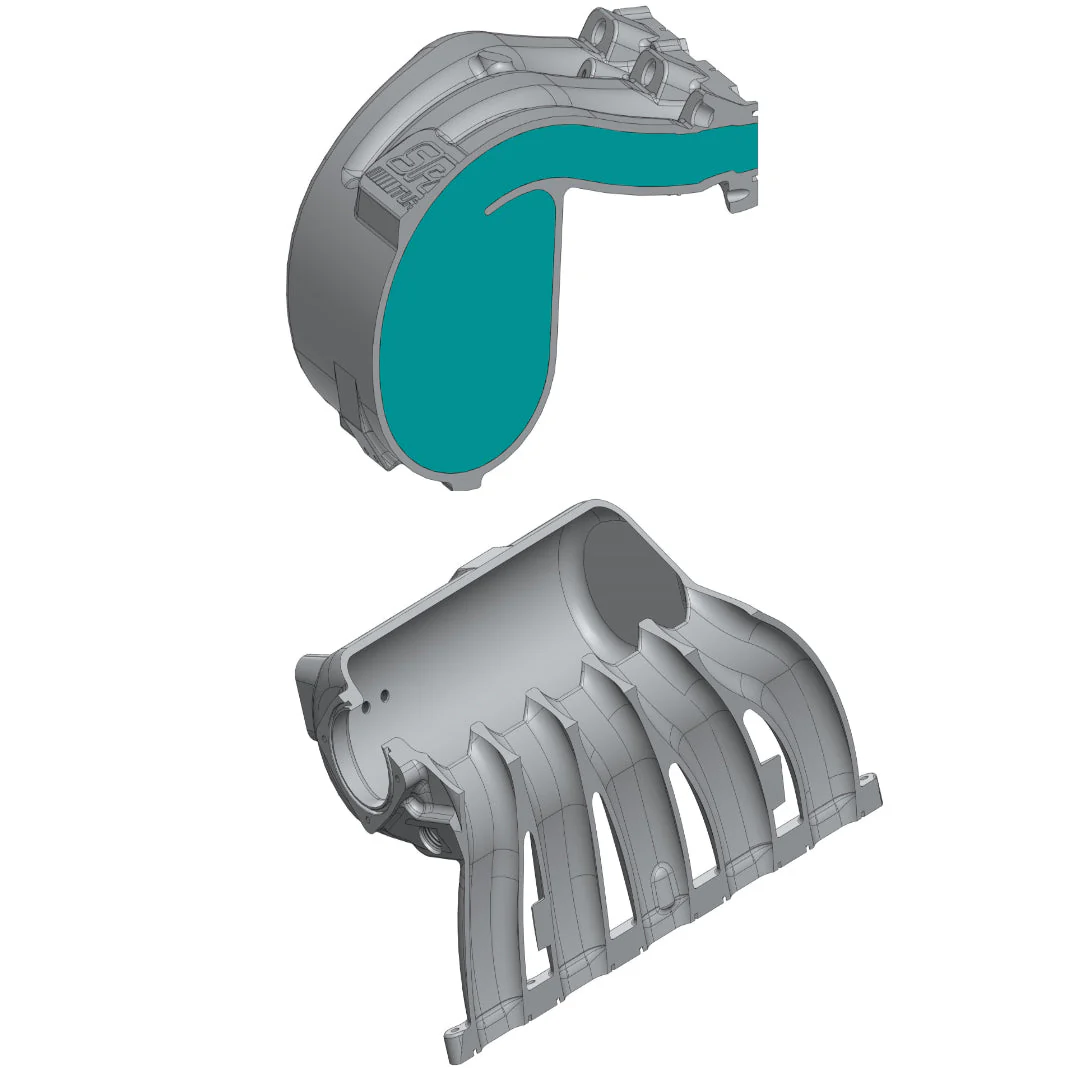

VW 2.5L 5 CYLINDER 20V 07K CAST ALUMINUM INTAKE MANIFOLD
Ā
- Application: VW 5 cyl 2.5L 20V FSI (compatible with hydraulic and electric steering)
- Number of injectors: 5
- Fuel rail: Stock
- Fuel railĀ inlet/outlet:Ā Stock
- Throttle body bolt hole pattern: Stock
- Max working capacity: 10bar (145psi)
- Internal volume: 6,2L
- Material: Cast aluminum
- Compatible with hydraulic and electric steering.
- Includes:
Fitting for stock breather hose (-10AN).
2X 1/8" NPT block off (if vacuum ports are not used).
Oil dipstick holder.
- Compatible with original MAP sensor - ref. 0261230095 (not included).
- Not compatible with the original plastic engine cover.
