The HEL Performance oil filter relocation take off is the ultimate solution to enhance the convenience and accessibility of your spin-on style oil filter. When working with tight fitting engine swaps and compact engine bays, especially in all-wheel-drive and rear-wheel-drive engine conversions, our take off plate allows you to relocate the oil filter from the original filter housing to a preferred location as well as speeding up the process during oil changes and servicing. This take off offers a remarkably low and slim profile, ensuring that your oil filter avoids any interference with any chassis components and ancillaries.

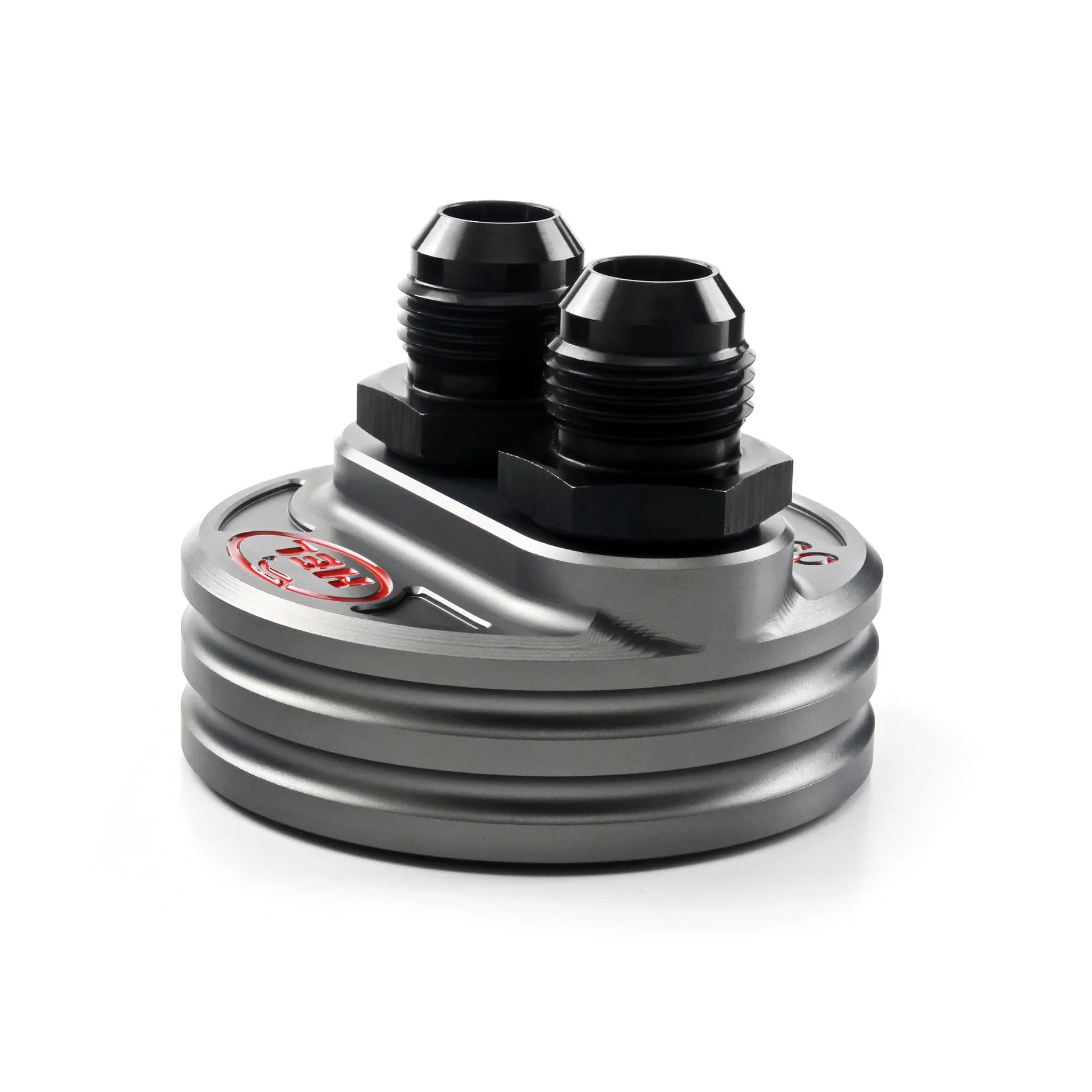

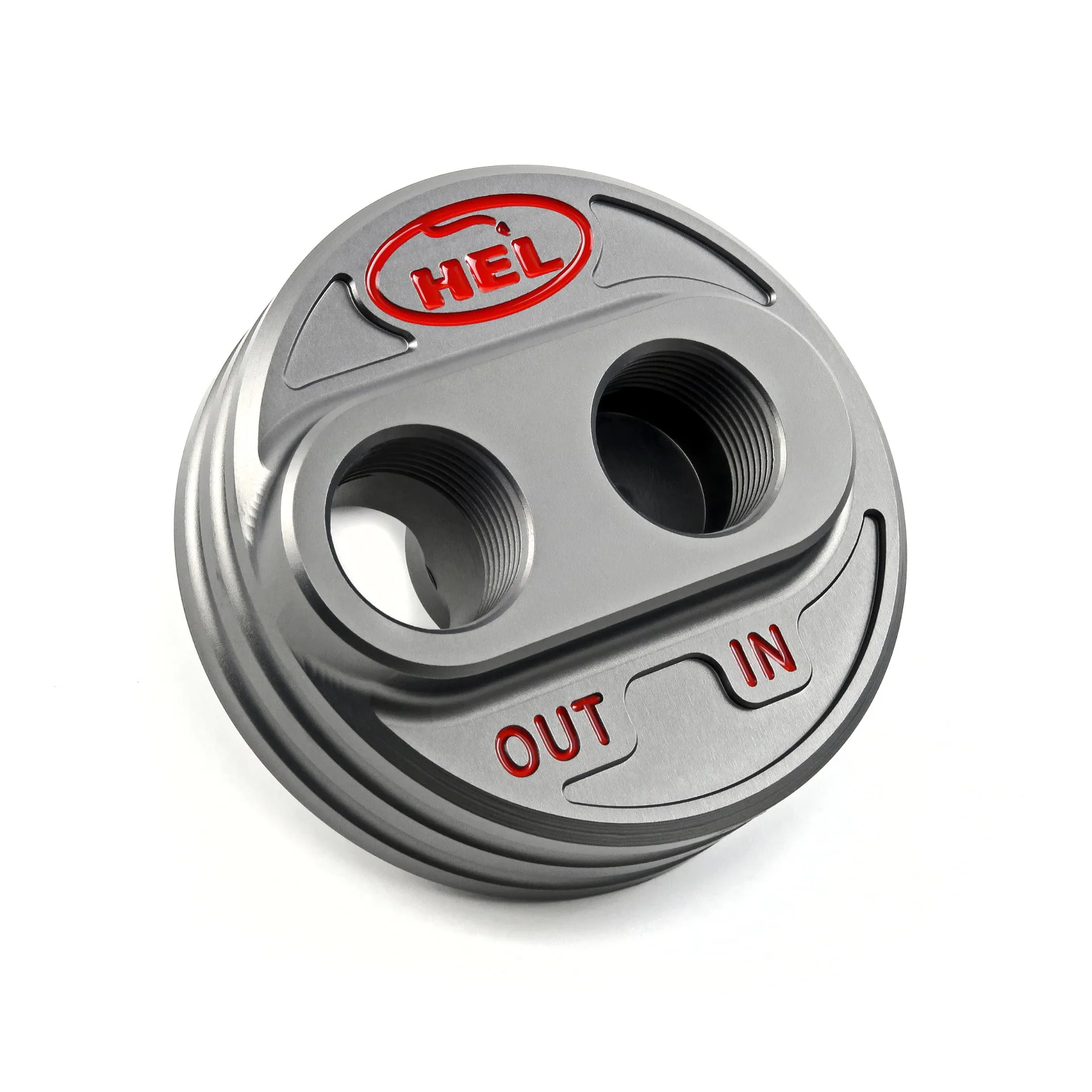

Our oil filter relocation take off features M22 x 1.5 threaded inlet and outlet ports and can be easily adapted with M22 x 1.5 to -8 (AN08) or -10 (AN10) male adapters, ensuring compatibility with a wide range of AN fittings, hose and adapters. We offer three versions to accommodate most commonly used spin-on style oil filters, M20 x 1.5, M22 x 1.5, 3/4" x 16 UNF or 13/16" x 16 UNF centre thread (female).

Designed as a universal product, our oil filter relocation take off can be mounted on various engine blocks. To determine if it's the right fit for your application, please refer to our technical drawings which can be found in the downloadable user manual.

Please note, the HEL Performance oil filter relocation remote head has been designed to be used in conjunction with this take off plate.

Specifications

Component Type	Oil Filter Relocation Take Off - Engine Block
External Diameter	78mm / 3.07"
Thickness (Excl. O-Ring)	32mm / 1.26"
Weight (Excl. Adapters)	240g / 0.53lbs
Min. Mounting Face Internal Diameter	56mm / 2.20"
Inlet/Outlet Port Thread	M22 x 1.5
Centre Bolt Thread (Female)	M20 x 1.5, M22 x 1.5, 3/4" x 16 UNF or 13/16" x 16 UNF
Includes O-Ring?	Yes - Nitrile
Colour	'HEL' Grey
Finish	Hard Anodised
Material	6082-T6 Aluminium
Brand	HEL Performance

What's Included

• 1x HEL Oil Filter Relocation Take Off - Engine Block
• 1x Nitrile O-Ring
