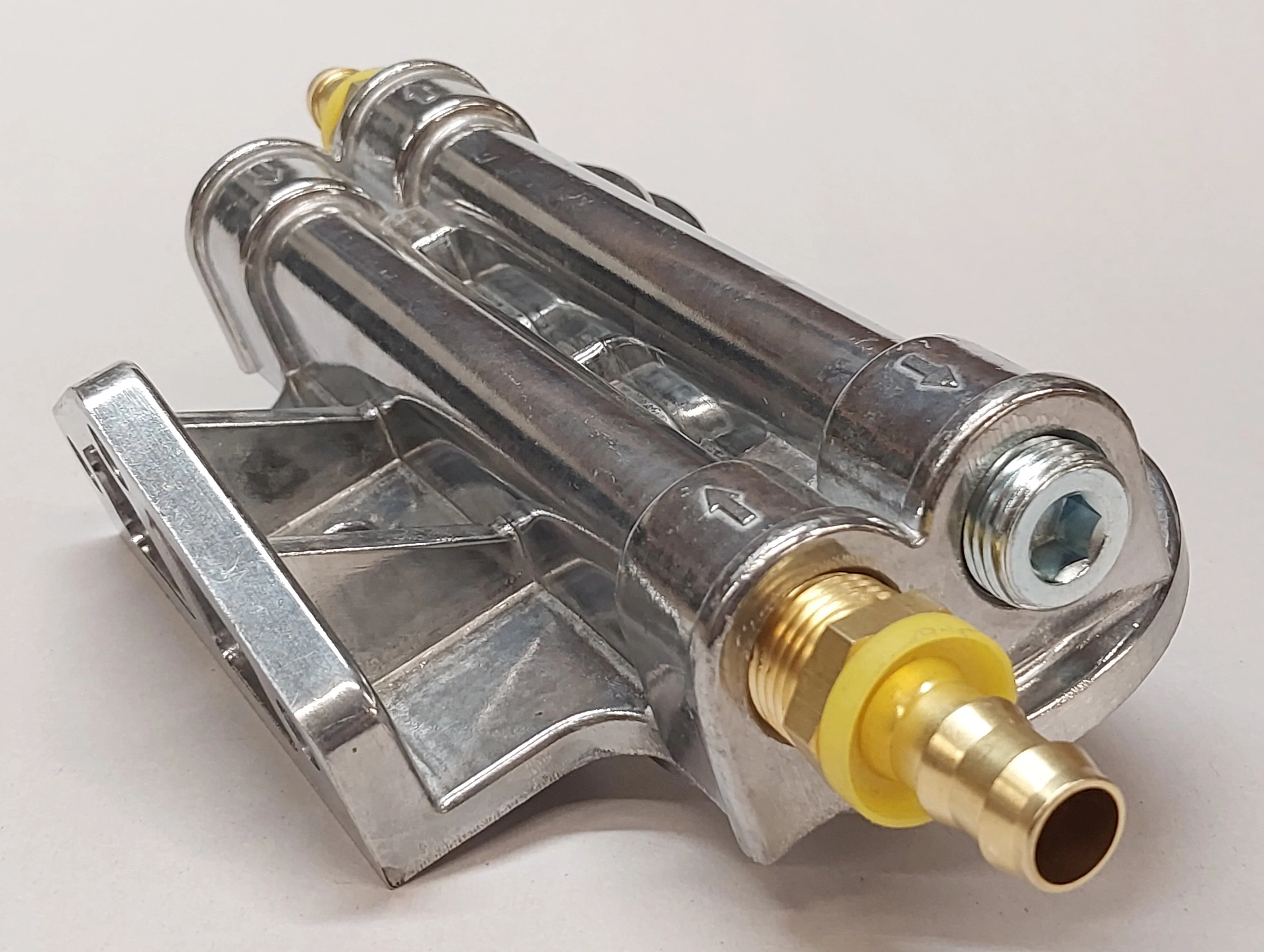

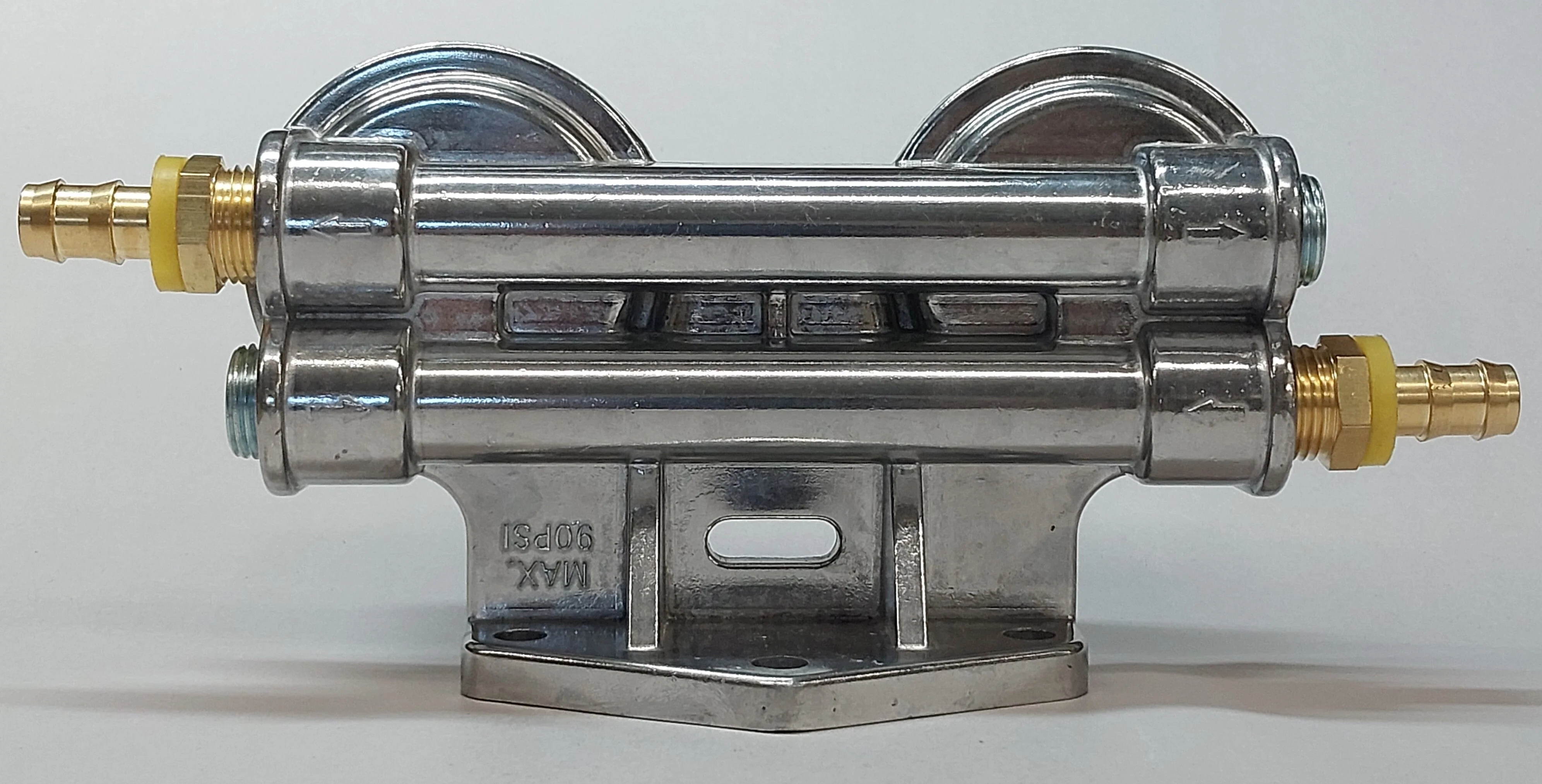

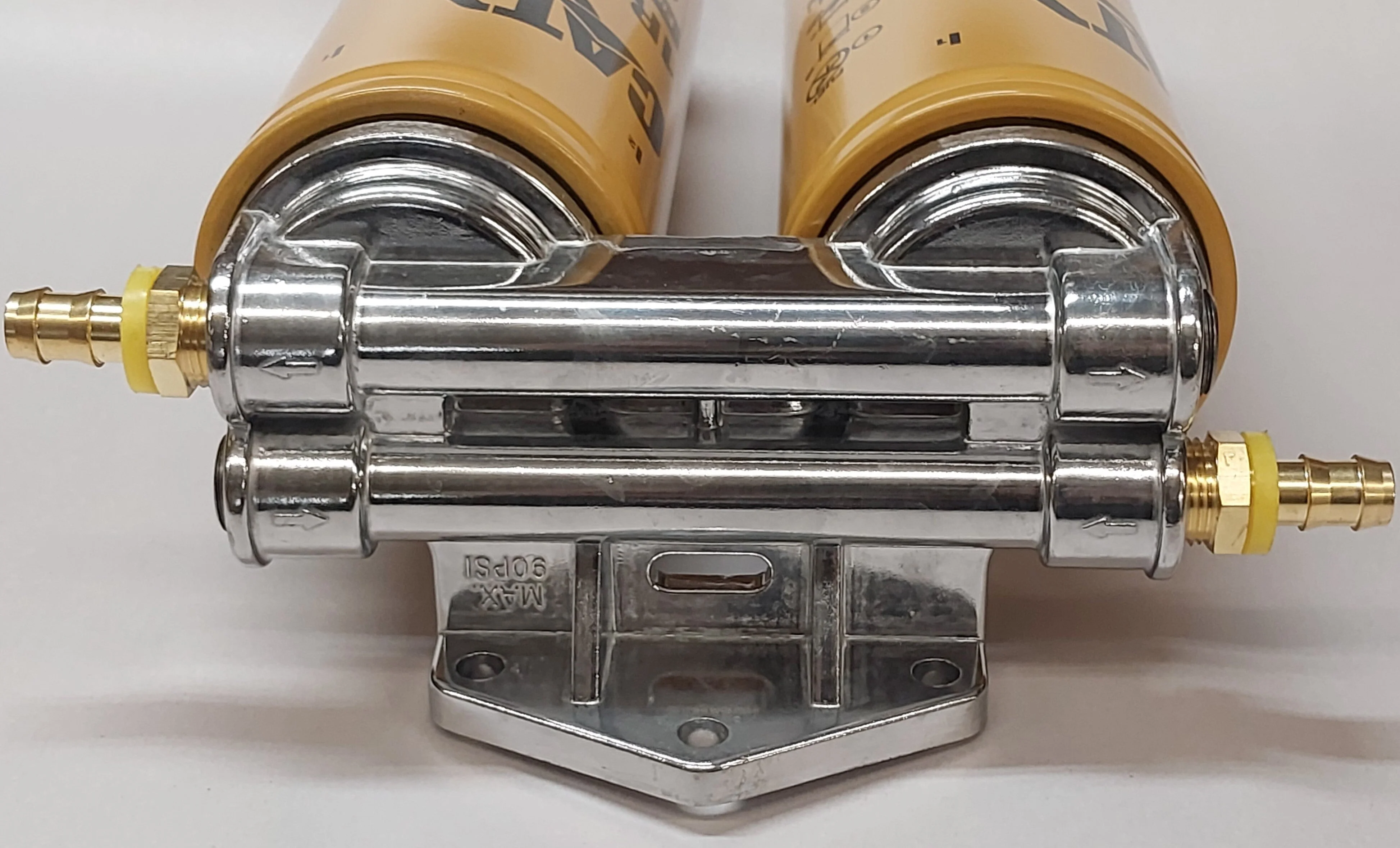

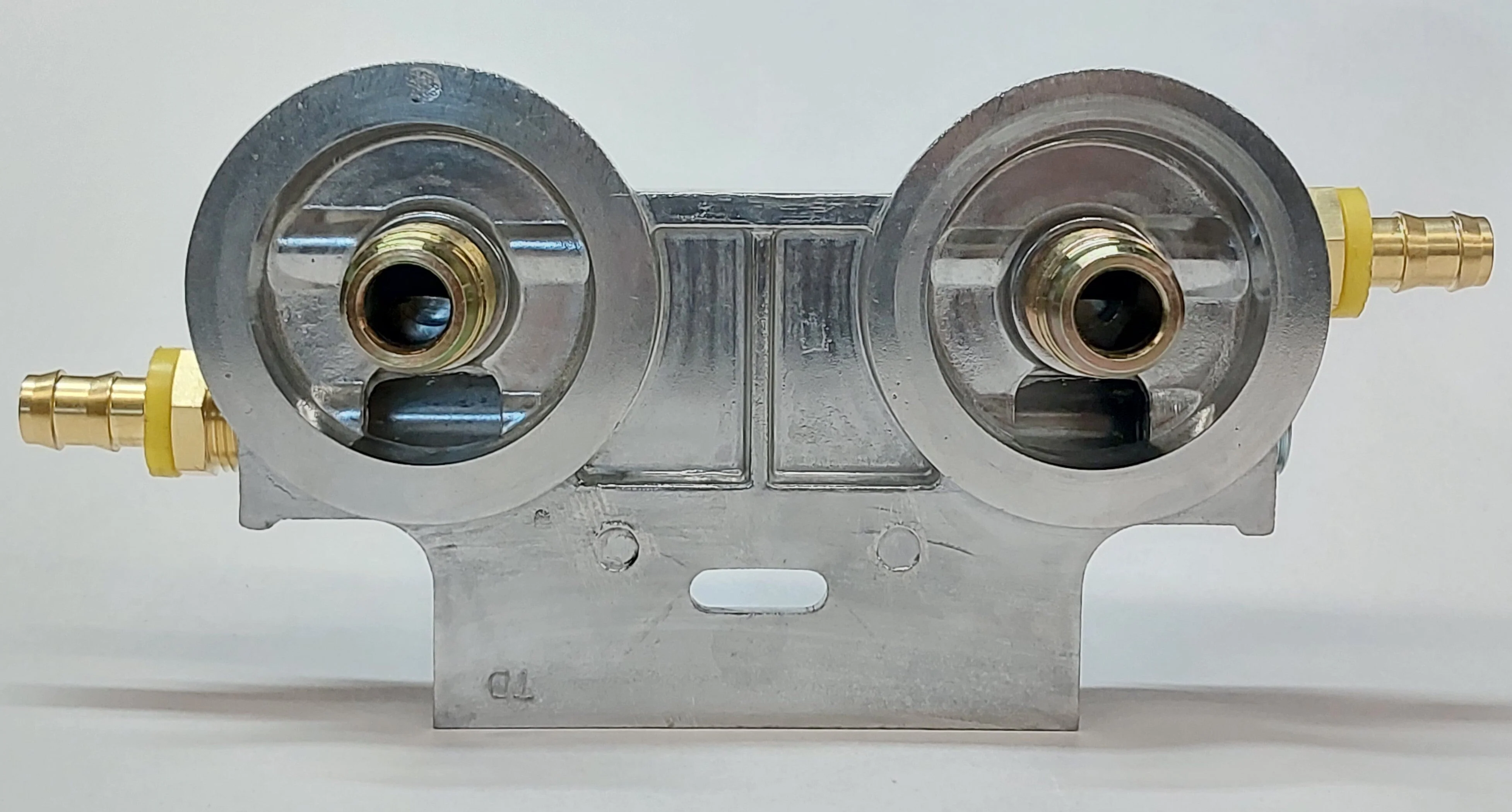

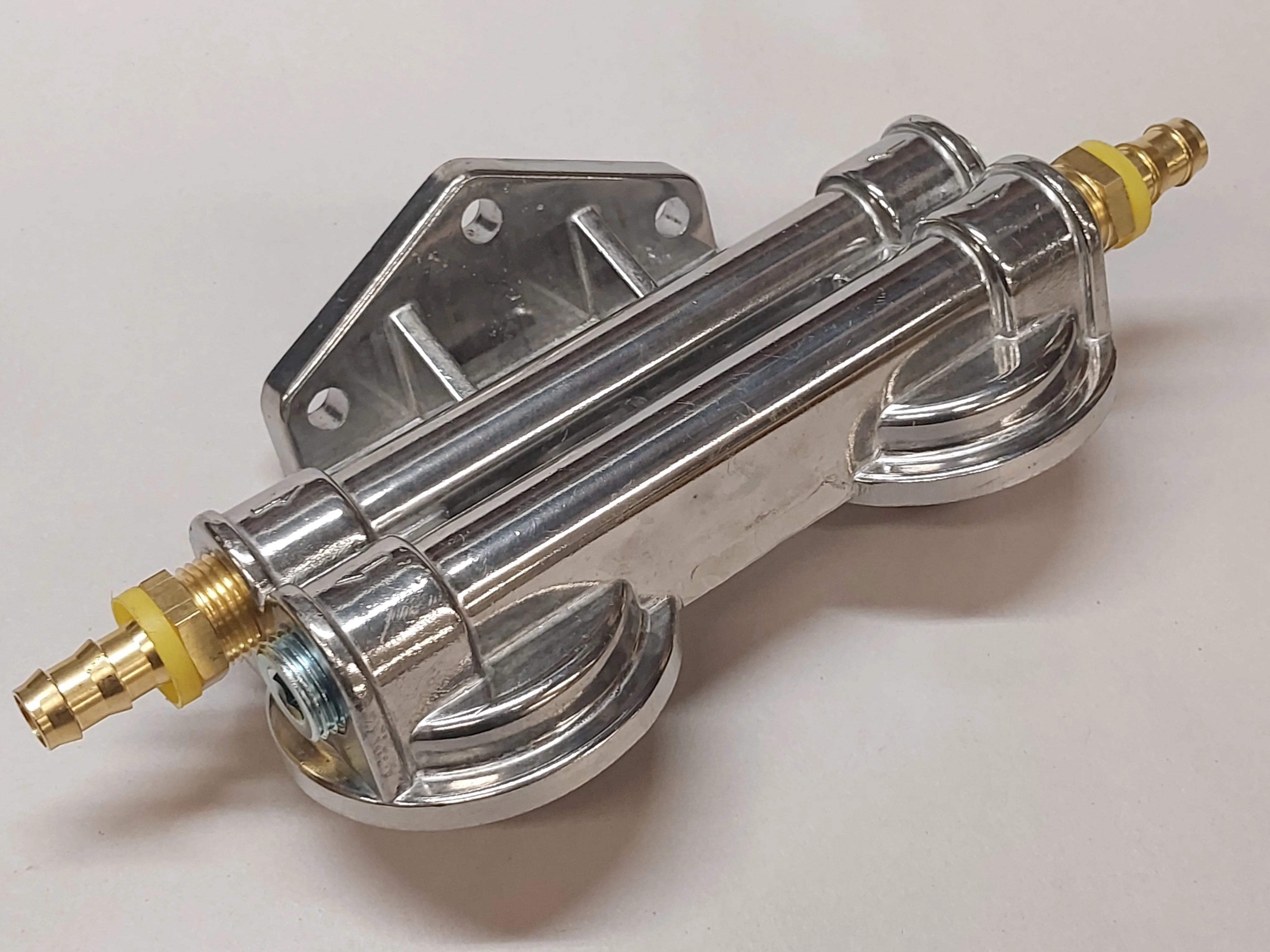

Dual Diesel Fuel Filter Mount

• 3 Bolt Aluminum Mount
• Accepts most 1"-14 filters
• 1/2" Pipe to 1/2" Hose Barb Adapters
• Both hose barbs can be placed on one end or set across from each other
• Fuel flows parallel between filters, meaning it is best to use the same filter on each side.
• Filter mount measures approximately: 8" x 5" x 2.25"
• Great for equipment and transfer tank systems.

*Some assembly required.

Short list of additional filters that can be used:

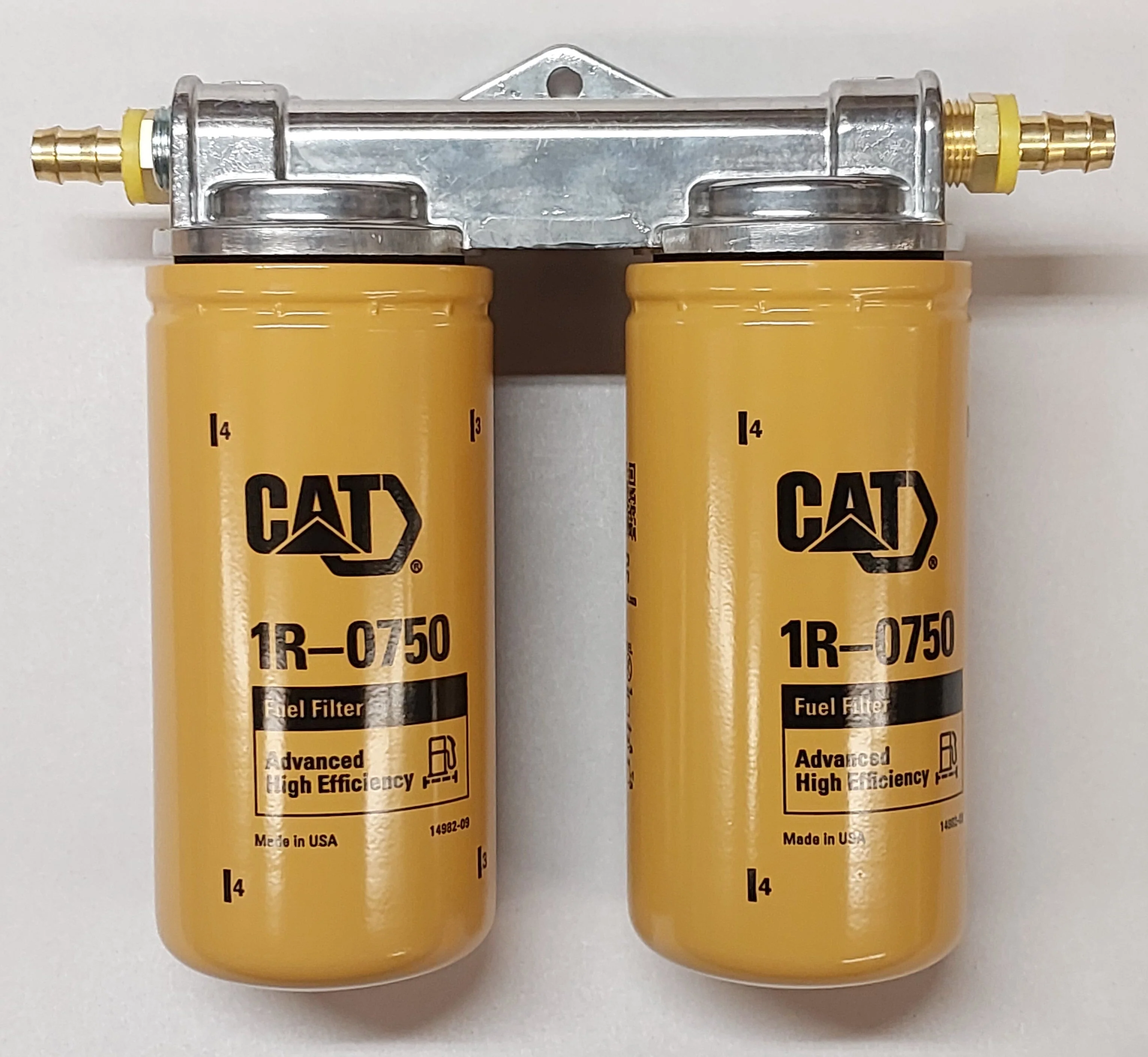

• 2 Micron CAT 1R-0750 (7.25" tall)

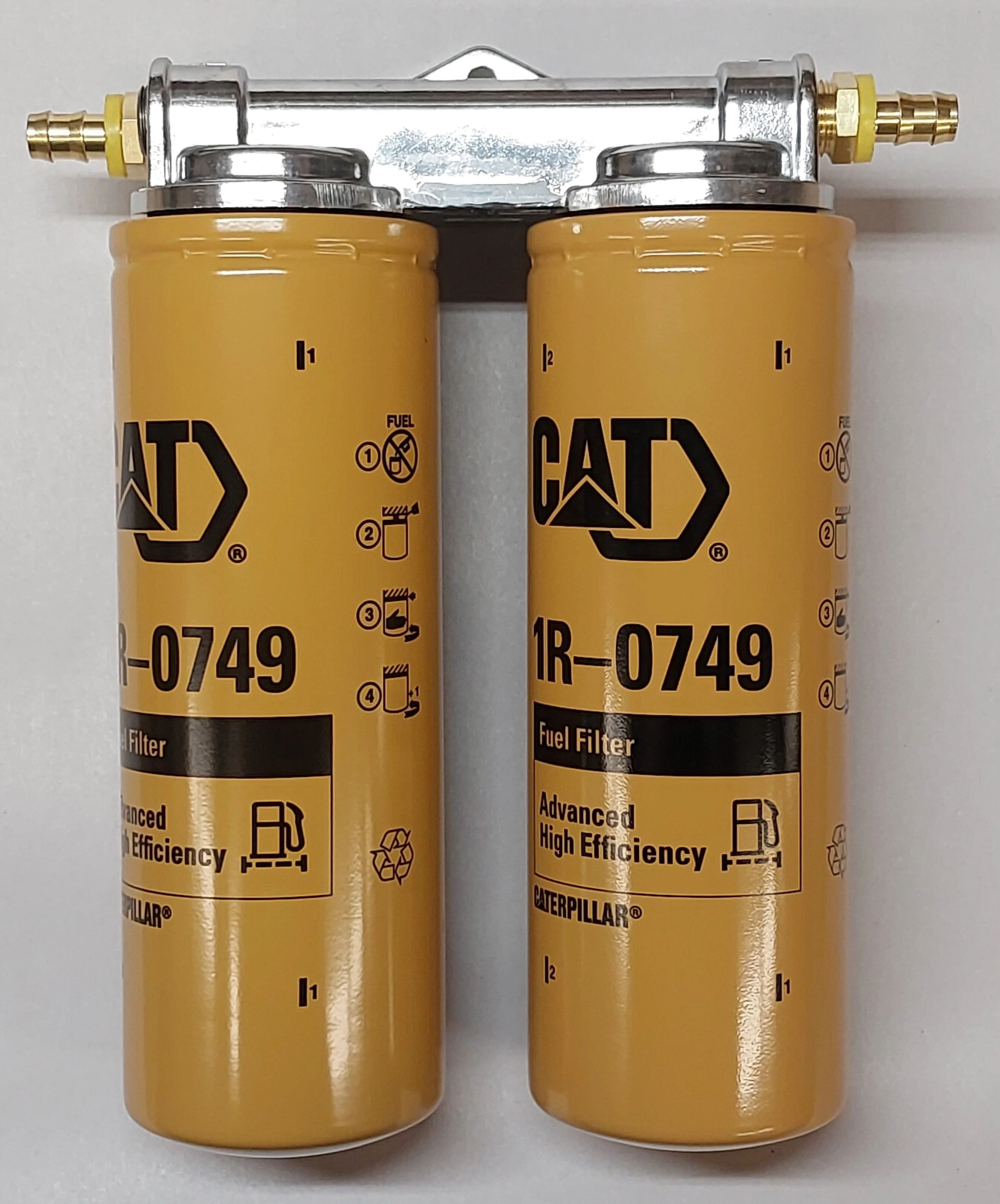

• 2 Micron CAT 1R-0749 (10.5" tall)

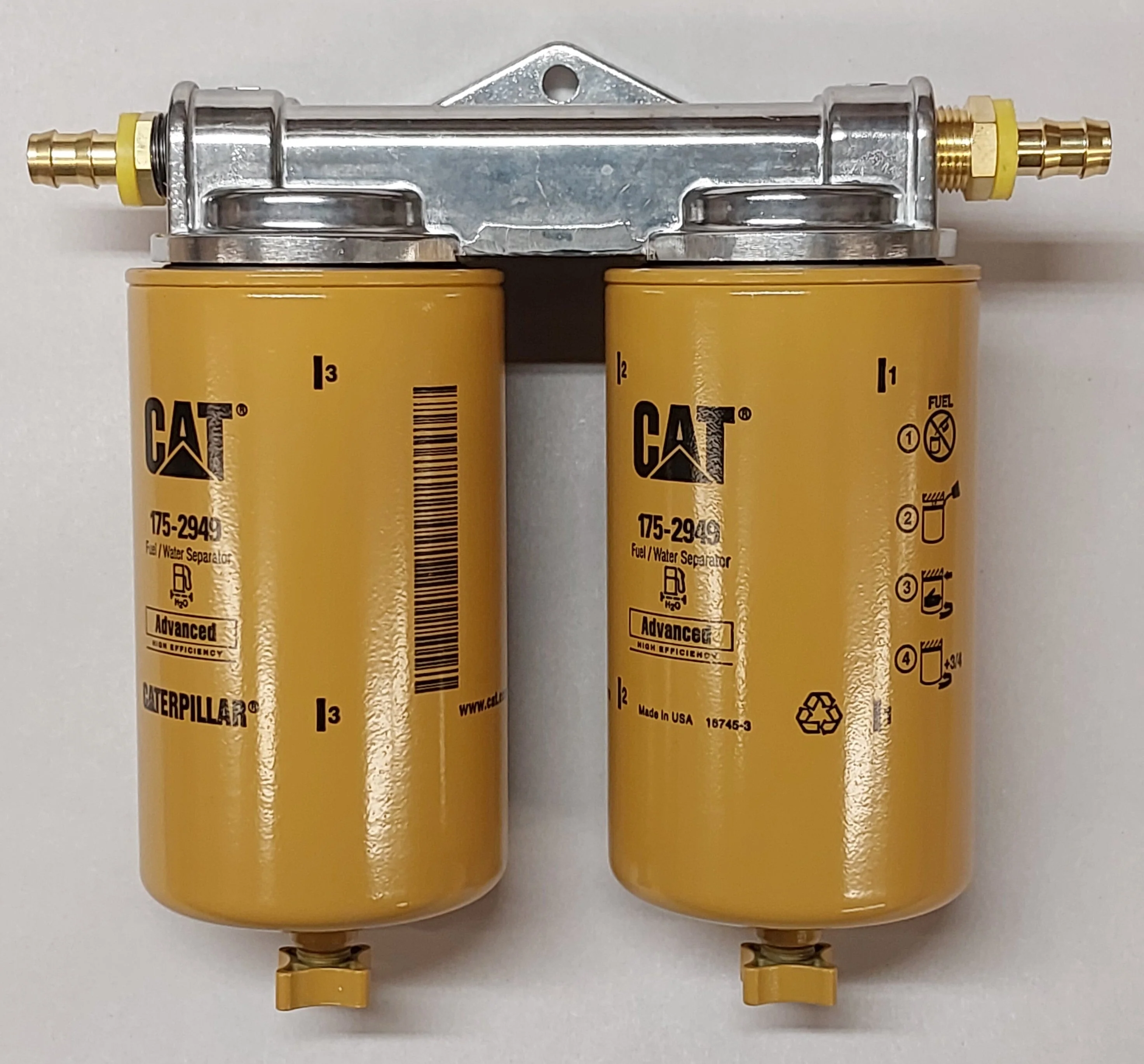

• 10 Micron CAT 175-2949 Water Separator (7.5" tall)
• 3 Micron water separator Wix 33005 / Napa 3005
• 14 Micron water separator WIX 33405 / Napa 3405
• 2 Micron Wix 33528 / Napa 3528
• 6 Micron Wix 33352 / Napa 3352
• 3 Micron Donaldson P551311
• 5 Micron Baldwin BF7587
