Cast Aluminum Intake Manifold for transverse VW/AUDI 1.8T with 8 injectors Fuel Rail Kit (right side without throttle bolt holes) - Black
SPA Turboās intake manifold was designed for upgrades builds, having a bigger plenum volume and allowing higher airflow, it is the perfect solution for those who wants high performance and durability, guaranteed by the cast aluminum construction. Available in 4 or 8 injectors with anodized aluminum fuel rails and in two throttle body position models, right side (Golf and A3 standard) and left (S3 standard or custom applications). In addition, you can choose between an OEM throttle body bolt holes pattern or without holes, for those who wants to use a different throttle body (up to 90mm).
Application: VW Golf GTI 1.8 20V Turbo / Audi A3 1.8 20V Turbo / Audi S3 1.8 20V Turbo (Large Port head)
Number of injectors: 8
Fuel rail: anodized aluminum, -8AN inlet/outlet
Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long

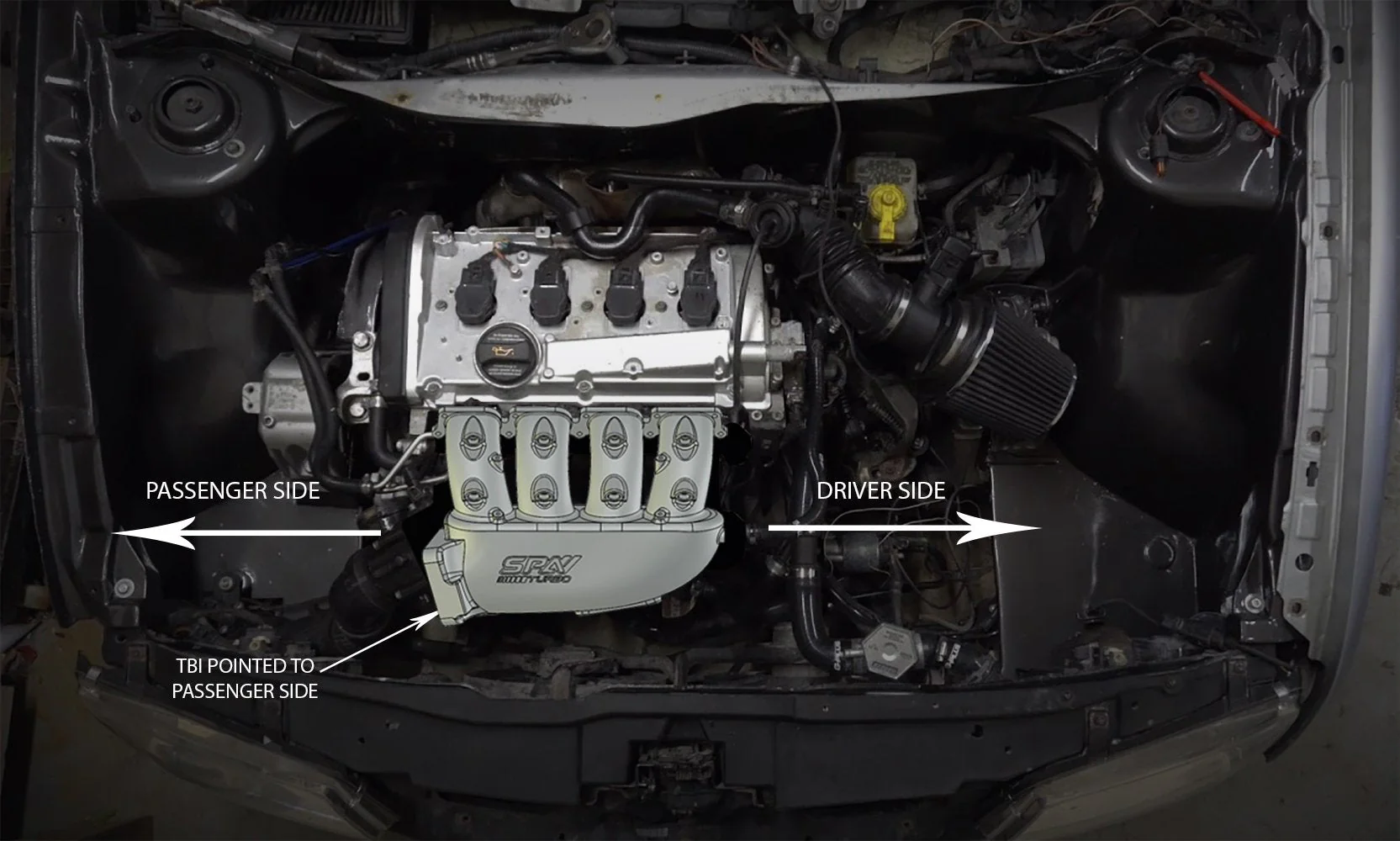

Throttle body position (TBI): right side (Golf and A3 standard)
Throttle body bolt holes pattern: without holes (for adaptation)
Material: cast aluminum
ATTENTION: this is not a bolt-on replacement manifold, it needs modifications to fit OEM charge pipes.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Cast Aluminum Intake Manifold for transverse VW/AUDI 1.8T with 8 injectors Fuel Rail Kit (right side without throttle bolt holes) - Black
Cast Aluminum Intake Manifold for transverse VW/AUDI 1.8T with 8 injectors Fuel Rail Kit (right side without throttle bolt holes) - Black
SPA Turboās intake manifold was designed for upgrades builds, having a bigger plenum volume and allowing higher airflow, it is the perfect solution for those who wants high performance and durability, guaranteed by the cast aluminum construction. Available in 4 or 8 injectors with anodized aluminum fuel rails and in two throttle body position models, right side (Golf and A3 standard) and left (S3 standard or custom applications). In addition, you can choose between an OEM throttle body bolt holes pattern or without holes, for those who wants to use a different throttle body (up to 90mm).
Application: VW Golf GTI 1.8 20V Turbo / Audi A3 1.8 20V Turbo / Audi S3 1.8 20V Turbo (Large Port head)
Number of injectors: 8
Fuel rail: anodized aluminum, -8AN inlet/outlet
Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long
Throttle body position (TBI): right side (Golf and A3 standard)
Throttle body bolt holes pattern: without holes (for adaptation)
Material: cast aluminum
ATTENTION: this is not a bolt-on replacement manifold, it needs modifications to fit OEM charge pipes.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SPA Turboās intake manifold was designed for upgrades builds, having a bigger plenum volume and allowing higher airflow, it is the perfect solution for those who wants high performance and durability, guaranteed by the cast aluminum construction. Available in 4 or 8 injectors with anodized aluminum fuel rails and in two throttle body position models, right side (Golf and A3 standard) and left (S3 standard or custom applications). In addition, you can choose between an OEM throttle body bolt holes pattern or without holes, for those who wants to use a different throttle body (up to 90mm).
Application: VW Golf GTI 1.8 20V Turbo / Audi A3 1.8 20V Turbo / Audi S3 1.8 20V Turbo (Large Port head)
Number of injectors: 8
Fuel rail: anodized aluminum, -8AN inlet/outlet
Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long
Throttle body position (TBI): right side (Golf and A3 standard)
Throttle body bolt holes pattern: without holes (for adaptation)
Material: cast aluminum
ATTENTION: this is not a bolt-on replacement manifold, it needs modifications to fit OEM charge pipes.
