4.500" x 4.000" Reducing V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp
If you're looking for a Reducing V-Band Assembly look no further!
For applications where transitioning from one tube size to another is required, thisĀ 304 Stainless Steel V-Band Assembly eliminates the need for additional fabrication components by offering both a 4.500" ID Female Flange and a 4.000" ID Male V-Band Flange in a single Quick Release style V-Band Clamp.Ā
FEATURES:
- Precision CNC Machined from 304 Stainless Steel
- Male/Female style Interlocking Flanges
- Counterbored to fit matching tube size material
- Removable & Replaceable T-Bolt Fastener
- Perfect for exhaust systems, turbo manifolds, and more!
ThisĀ V-Band Clamp Assembly includes the following items:Ā
- (1) V-Band Clamp,Ā Quick Release, 304 Stainless
- (1) "Male" Interlocking V-Band Flange, 304 Stainless
- (1) "Female" Interlocking V-Band Flange, 304 Stainless

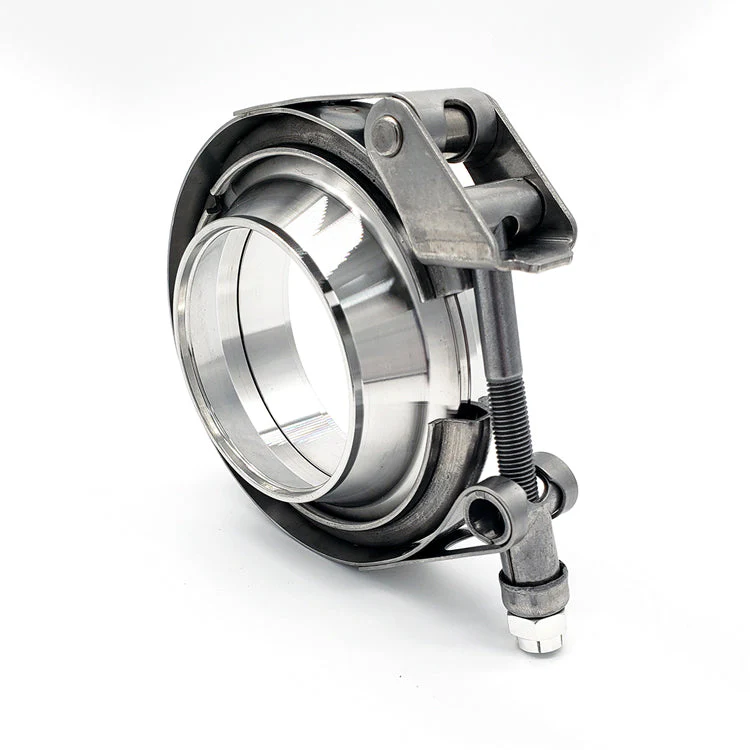

Ace Race Parts brand Quick-Release style V-Band Assemblies are precision CNC machined and featureĀ a 304 Stainless Steel Quick Release style V-Band Clamp and a set of 304 Stainless Steel interlocking "Male/Female" V-Band Flanges.

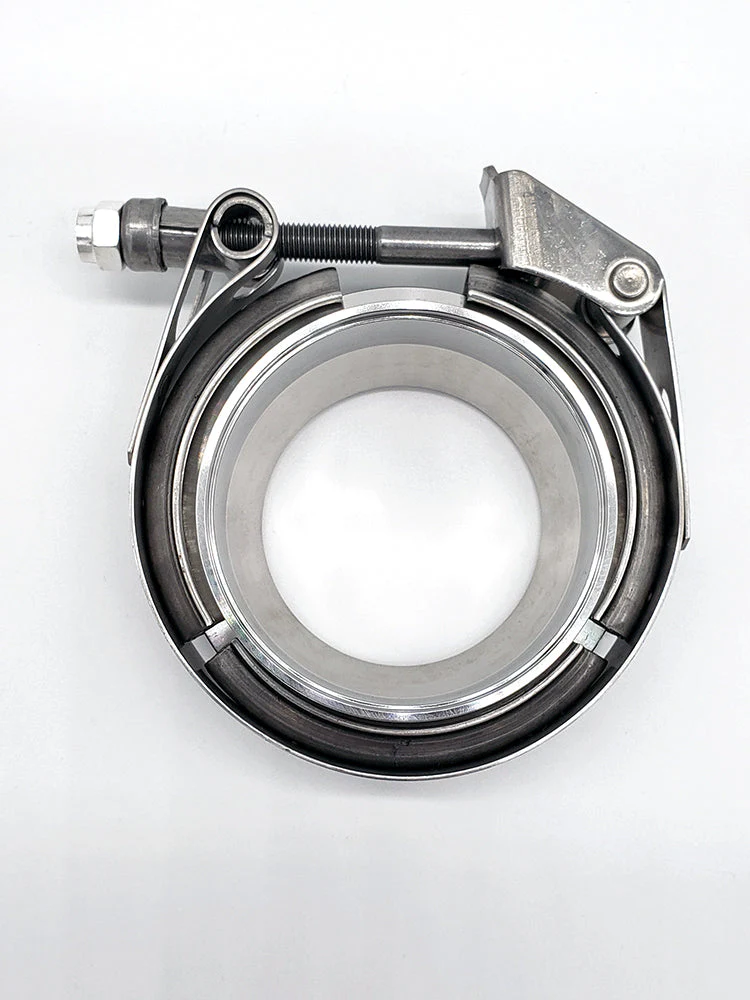

Quick Release style V-Band Clamps feature a quick-release latch and aĀ replaceable T-Bolt section that allows for quick assembly and disassembly. For applications where frequent removal of the clamp is required we recommend using our Quick Release style V-Band Clamps and compatible V-Band Flanges.Ā

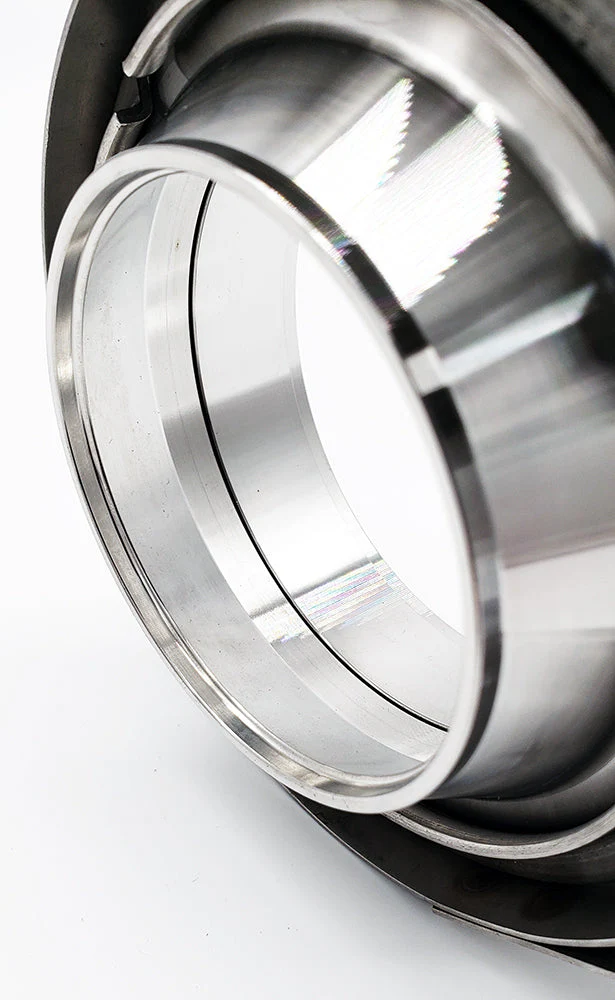

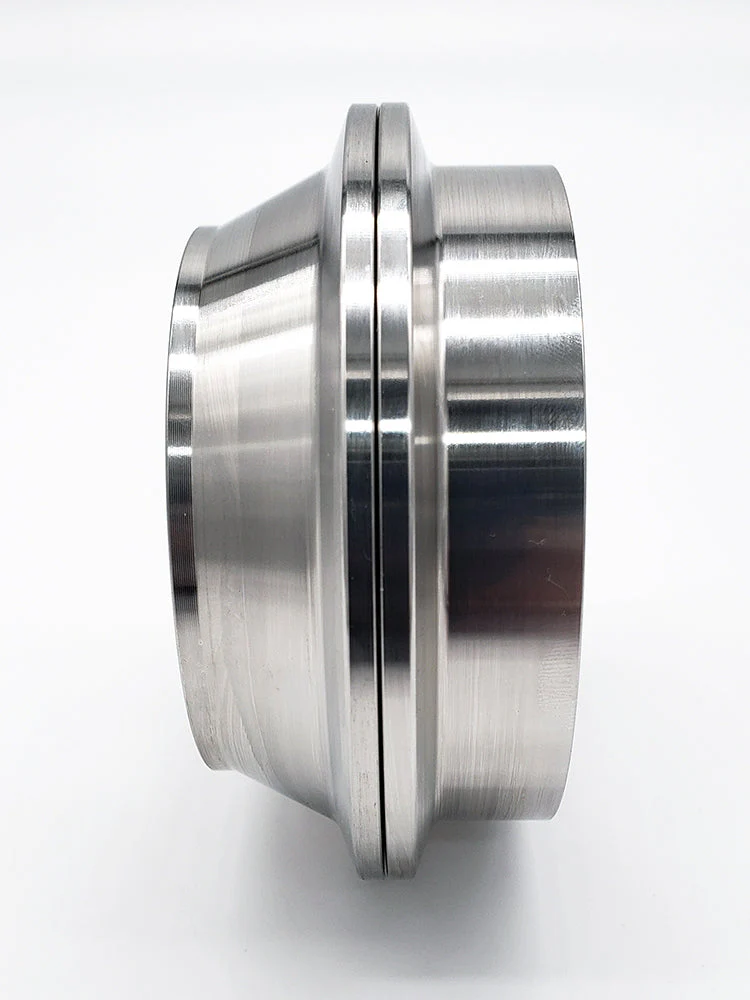

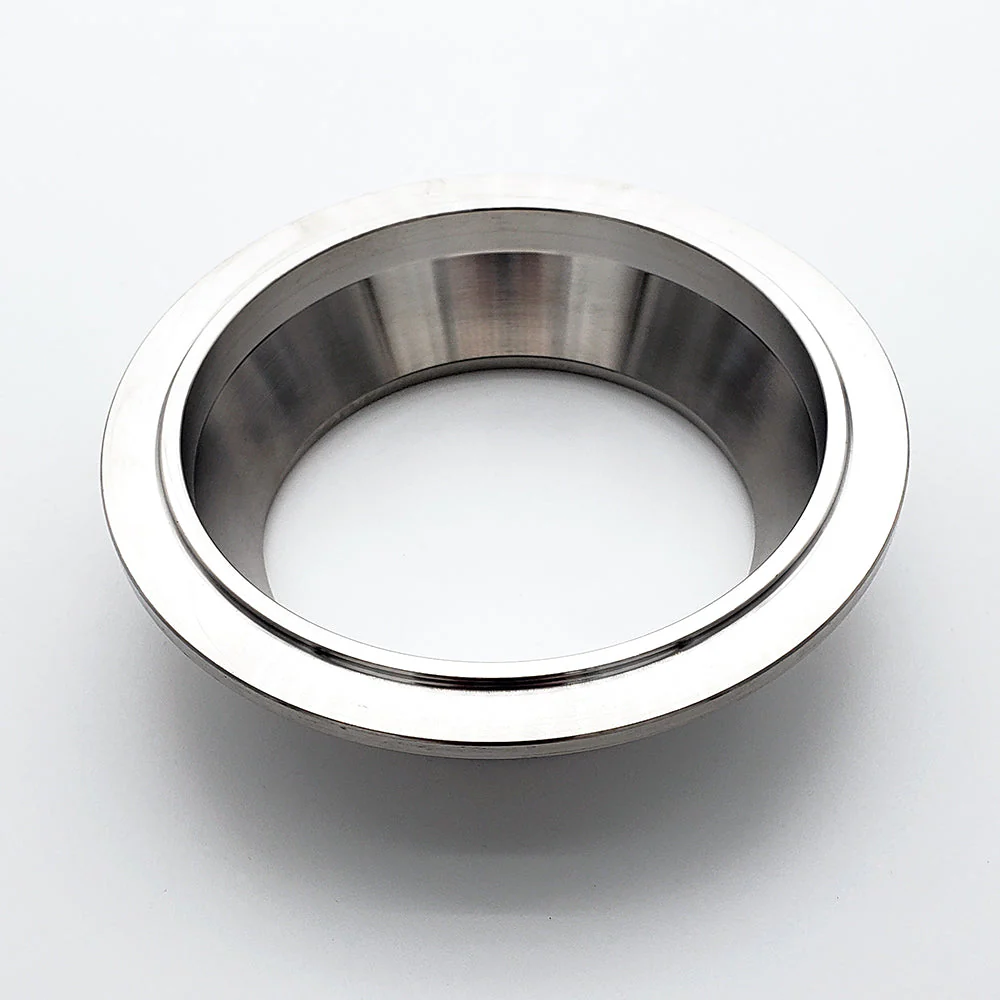

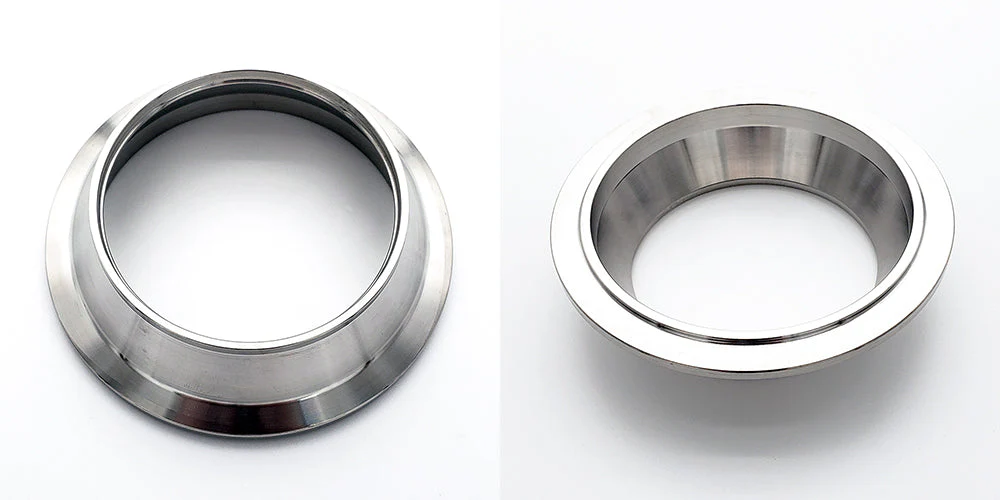

Our "Male/Female" interlocking style V-Band FlangesĀ feature an interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The interlocking seating surface, the area where the two flanges meet, makes fitment and installation a breeze even in tightest of areas.Ā The weld side of our 304 Stainless V-Band Flanges are CNC machined with a counterbore to allow the matching tube size material to slip into the V-Band Flange and be welded in place. The V-Band Flange counterbore is machined to be 0.065" wide and allows for the inside diameter (ID) of 16 gauge wall thickness tube to align perfectly with the ID of the V-Band Flange without any restrictions or reductions.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
4.500" x 4.000" Reducing V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp
4.500" x 4.000" Reducing V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp
If you're looking for a Reducing V-Band Assembly look no further!
For applications where transitioning from one tube size to another is required, thisĀ 304 Stainless Steel V-Band Assembly eliminates the need for additional fabrication components by offering both a 4.500" ID Female Flange and a 4.000" ID Male V-Band Flange in a single Quick Release style V-Band Clamp.Ā
FEATURES:
- Precision CNC Machined from 304 Stainless Steel
- Male/Female style Interlocking Flanges
- Counterbored to fit matching tube size material
- Removable & Replaceable T-Bolt Fastener
- Perfect for exhaust systems, turbo manifolds, and more!
ThisĀ V-Band Clamp Assembly includes the following items:Ā
- (1) V-Band Clamp,Ā Quick Release, 304 Stainless
- (1) "Male" Interlocking V-Band Flange, 304 Stainless
- (1) "Female" Interlocking V-Band Flange, 304 Stainless
Ace Race Parts brand Quick-Release style V-Band Assemblies are precision CNC machined and featureĀ a 304 Stainless Steel Quick Release style V-Band Clamp and a set of 304 Stainless Steel interlocking "Male/Female" V-Band Flanges.
Quick Release style V-Band Clamps feature a quick-release latch and aĀ replaceable T-Bolt section that allows for quick assembly and disassembly. For applications where frequent removal of the clamp is required we recommend using our Quick Release style V-Band Clamps and compatible V-Band Flanges.Ā
Our "Male/Female" interlocking style V-Band FlangesĀ feature an interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The interlocking seating surface, the area where the two flanges meet, makes fitment and installation a breeze even in tightest of areas.Ā The weld side of our 304 Stainless V-Band Flanges are CNC machined with a counterbore to allow the matching tube size material to slip into the V-Band Flange and be welded in place. The V-Band Flange counterbore is machined to be 0.065" wide and allows for the inside diameter (ID) of 16 gauge wall thickness tube to align perfectly with the ID of the V-Band Flange without any restrictions or reductions.
