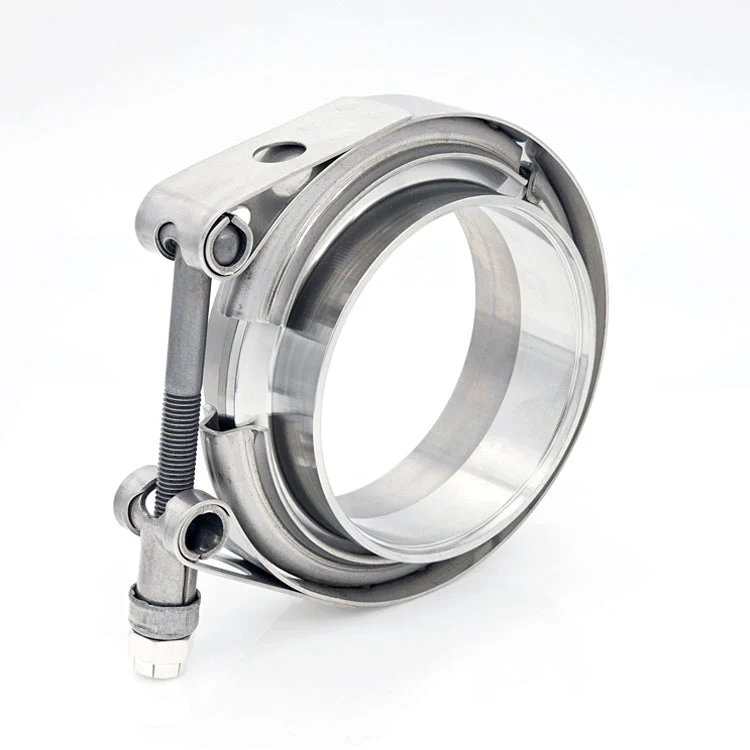

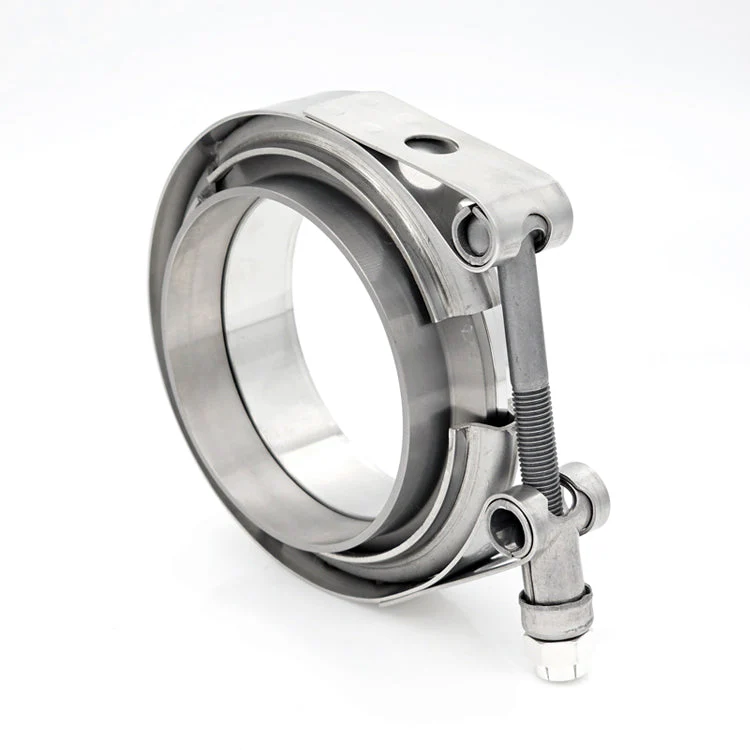

Our Titanium/Stainless Combination V-Band Assemblies are precision CNC machined and feature a 304 Stainless V-Band Clamp, a "Male" style 304 Stainless V-Band Flange and a "Female" style CP2 Titanium V-Band Flange.

FEATURES:

• Combines two different material types in a single clamp
• 304 Stainless V-Band Clamp
• 304 Stainless Male V-Band Flange
• CP2 Titanium Female Flange

• Counterbored to fit matching tube size

• Suitable for a wide range of uses, including automotive, diesel, and industrial applications

The seating surface (the area where the two flanges meet) of our "Male" 304 Stainless V-Band Flange and "Female" CP2 Titanium V-Band Flange utilizes an interlocking flange design to create an air-tight, leak free seal. The weld side of our Titanium V-Band Flange is machined to allow the matching tube size material to slip into the V-Band Flange; whereas, the weld side of our Stainless V-Band Flange is precision machined with a counterbore. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.

This Titanium/Stainless Combination V-Band Clamp Assembly includes the following items:

304 Stainless Steel V-Band Clamp [Quantity: 1]

304 Stainless "Male" V-Band Flange [Quantity: 1]

CP2 Titanium "Female" V-Band Flange [Quantity: 1]
