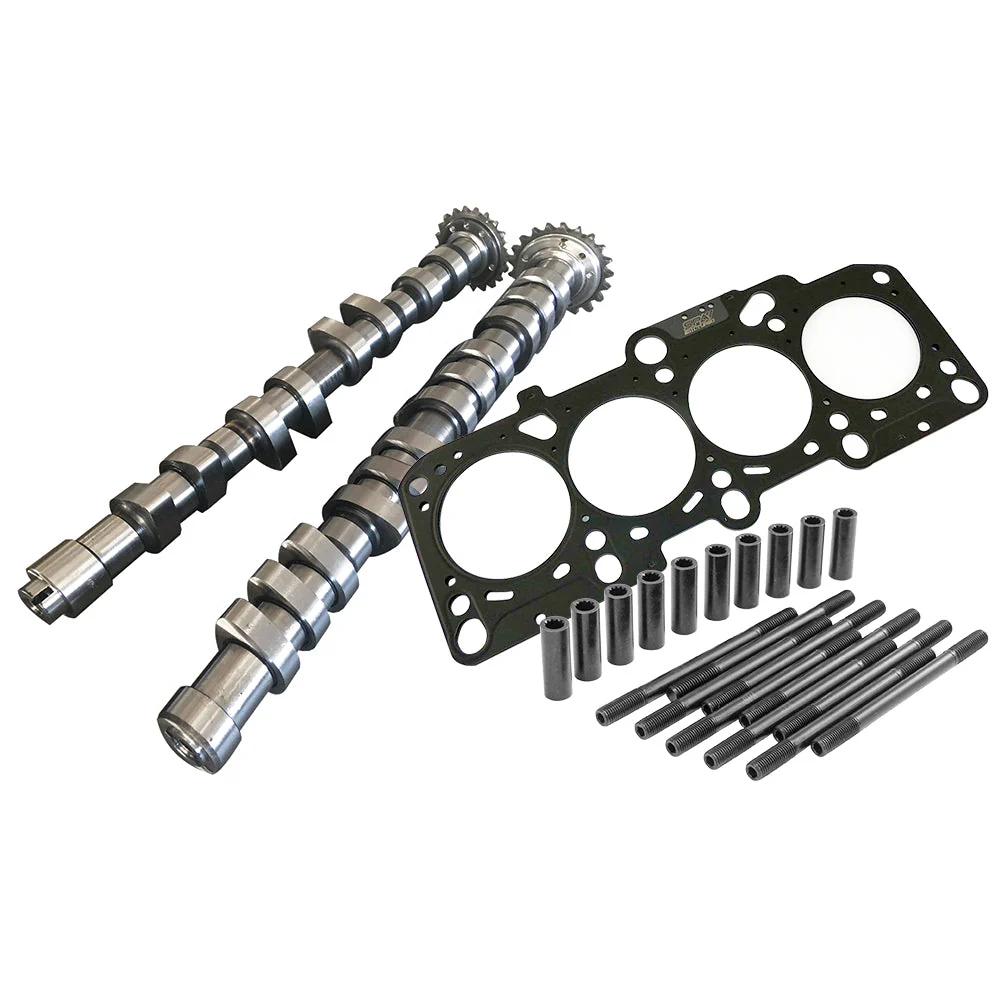

252 / 260 High Performance Camshaft set + Set FORGED HEAD STUDS + Decompression MLS head gasket For VW/AUDI 1.8L 20V

252 / 260 High Performance Camshaft set + Set FORGED HEAD STUDS + Decompression MLS head gasket For VW/AUDI 1.8L 20V

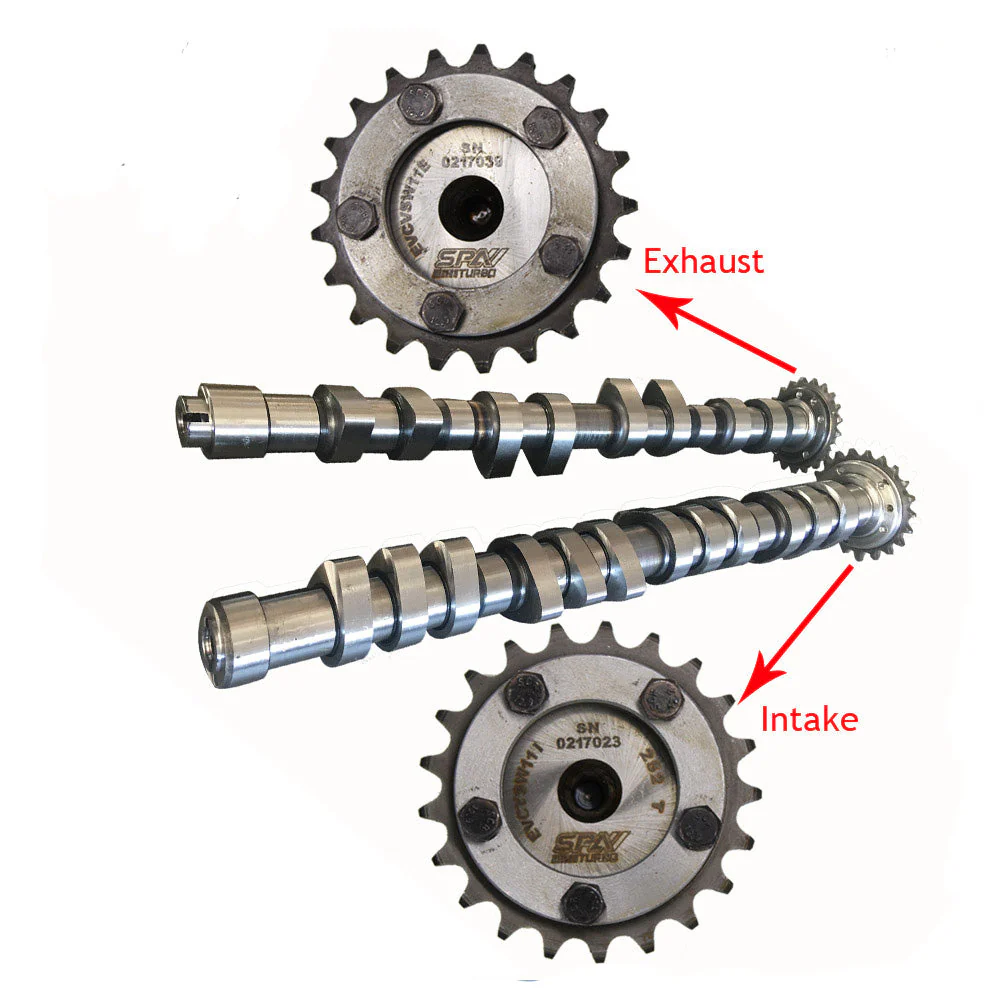

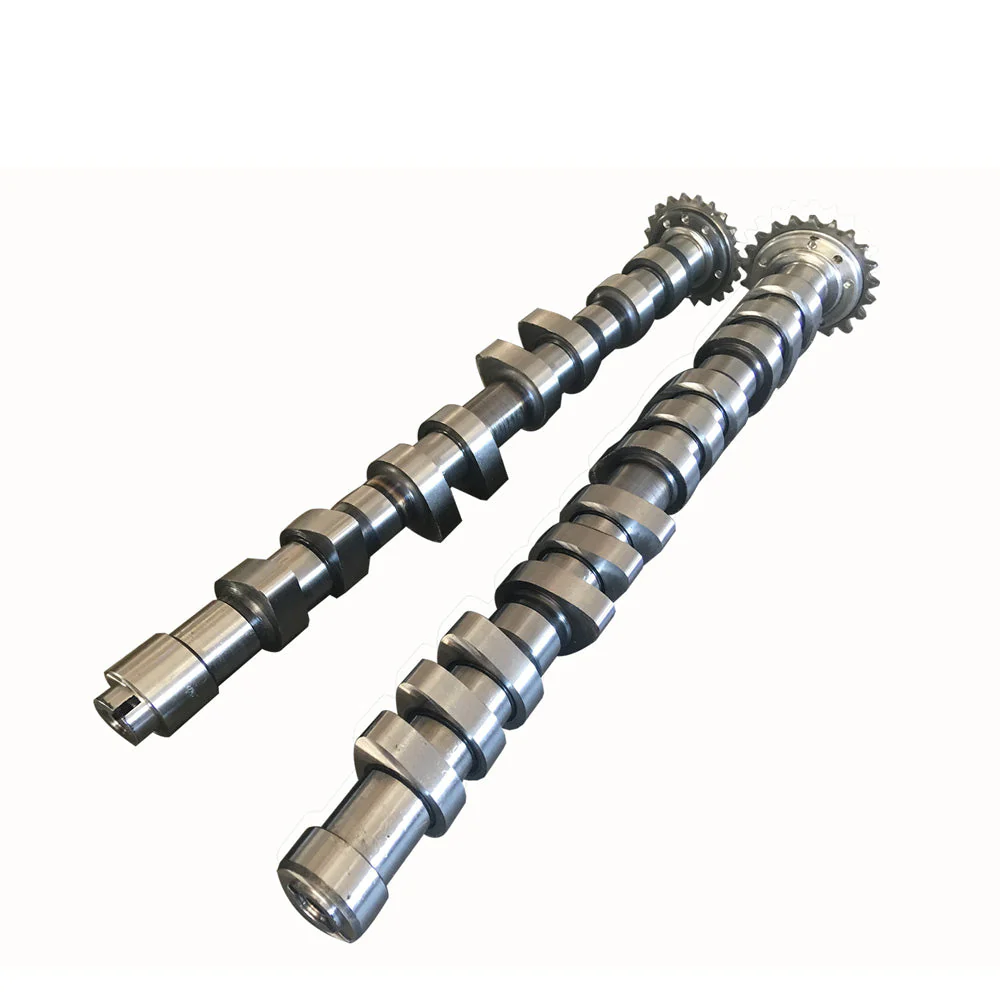

Ā 252 / 260 High Performance Camshaft set

  • These SPA Turbo Cams for your VW are one of the best overall performance upgrades you can do.
  • Not a peaky or hard to live with pair, this matched camshaft set increases performance throughout the available rev range and is a popular application for the street performance or dual street track uses cars.
  • Intake 252Ā°/Exhaust 260Ā°

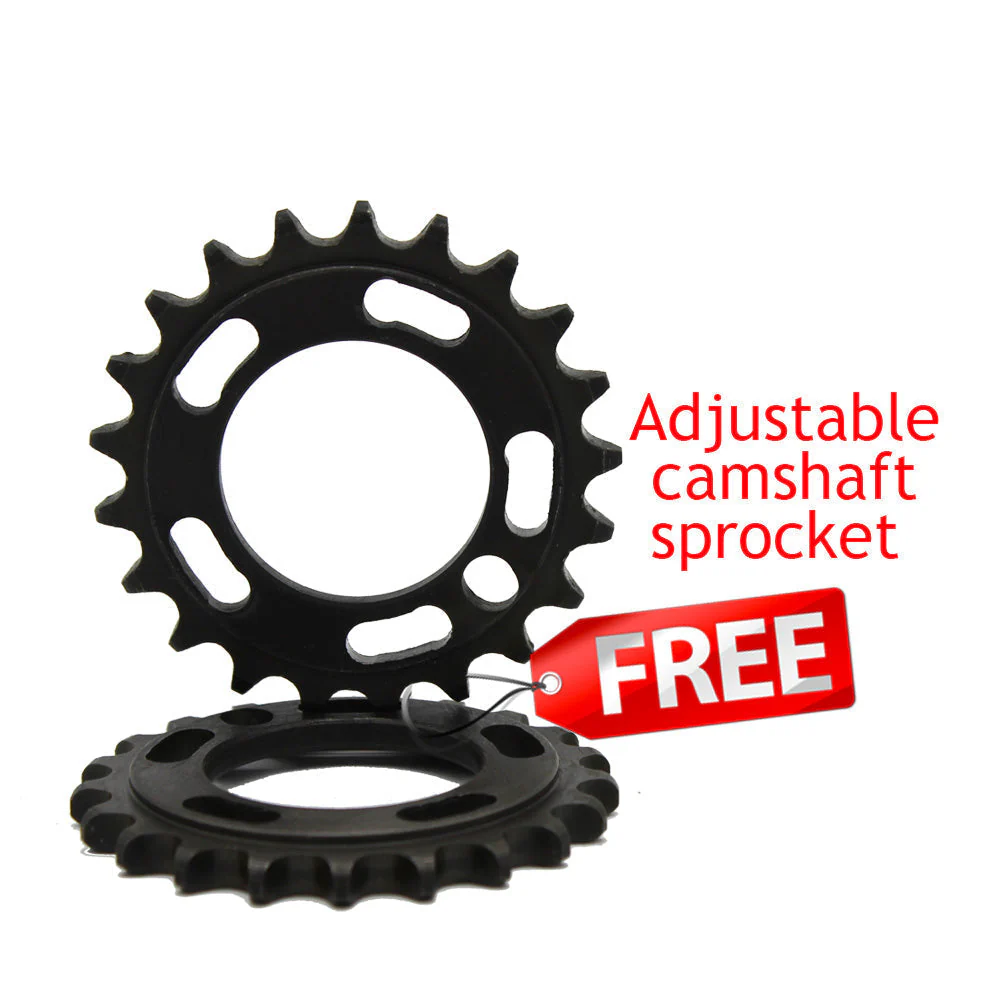

  • Includes Adjustable cam sprocket/s
  • This is a popular combination, designed to run with OEM lifters followers and springs

Ā

  • Fits VW 1.8T 20V applications
  • More torque and Horsepower!

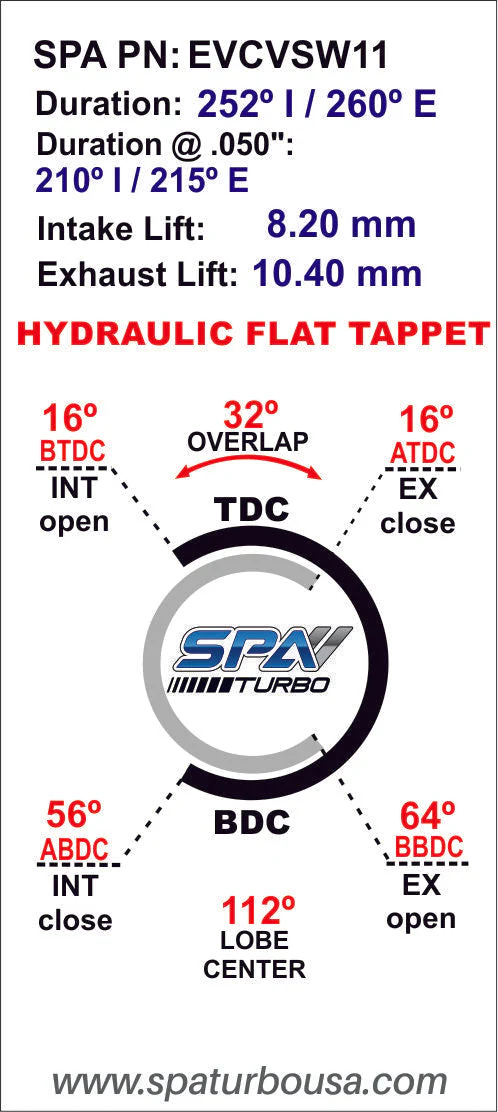

  • Intake 252Ā°, cam lift 8,2, valve lift at TDC 0,8 - for TURBO, for hydr. lifters
  • Exhaust 260Ā°, cam lift 10,4, valve lift at TDC 0,7, for hydr. lifters
  • Attention: we strongly recommendĀ the assembly with NEW hydraulic lifters, otherwise camshafts can be damaged.
  • ( Mfg / Vehicle (model) / Year / Engine )
Audi A4 CVT 2001.5-up 1.8T
Audi A4 FWD 2001-up 1.8T
Audi A4 Quattro 1997-1999.5 1.8T
Audi A4 Quattro 2000 1.8T
Audi A4 Quattro 2001-up 1.8T
Audi TT 2000-2004 1.8T 180HP
Audi TT Quattro 2000-2004 1.8T 180HP
Audi TT Quattro 2000-2004 1.8T 225HP
Golf/GTI IV 2001-up 1.8T
Golf/GTI IV 2000 1.8T
Jetta IV 2000 1.8T
Jetta IV 2001-up 1.8T
New Beetle 2000 1.8T
New Beetle 2001-up 1.8T
Passat B5 1998-2000 1.8T
Passat B5 2001-up 1.8T
Passat B5.5 2001.5-up 1.8TĀ
  • Tech Tips:
  • Professional installation is a must with this cam set

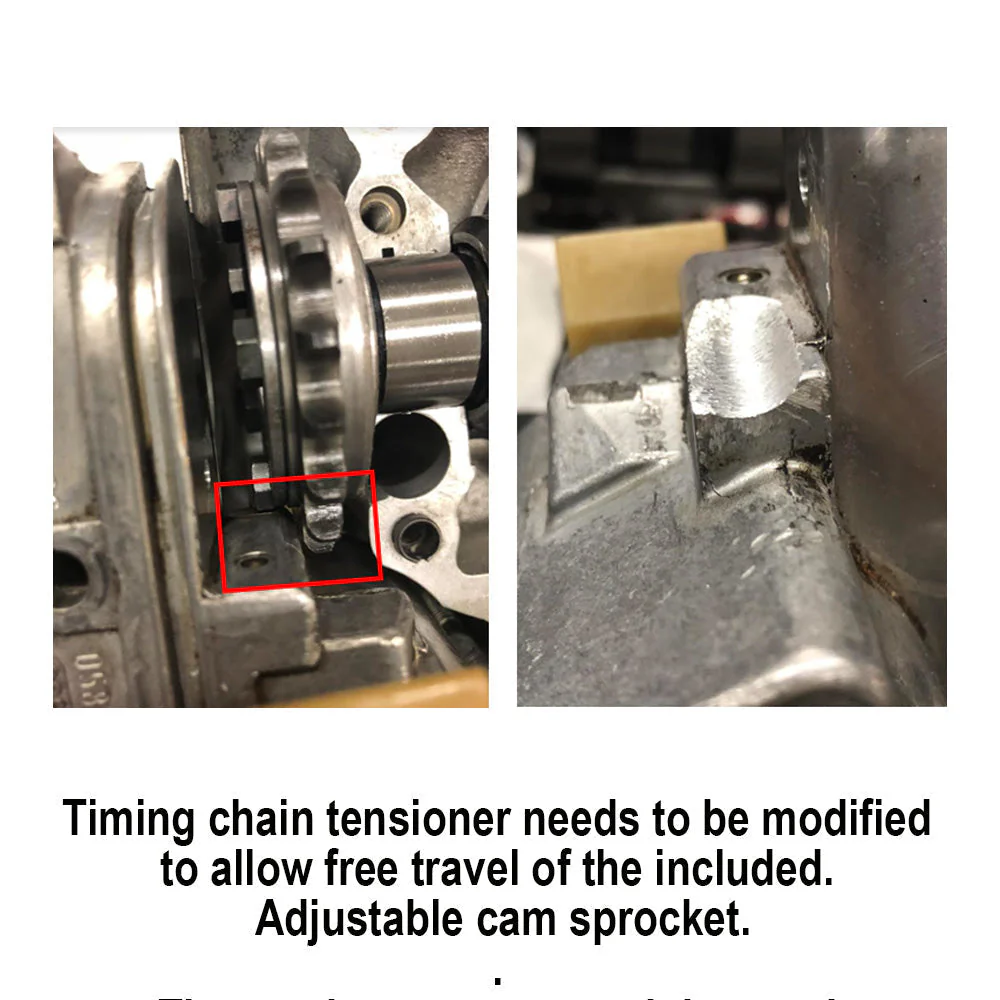

  • Timing chain tensioner needs to be modified to allow free travel of the included Adjustable cam sprocket.
  • Install it with a new set of lifters

  • Made of 1045 quenched steel
    Billet machined
    52-58 HRC

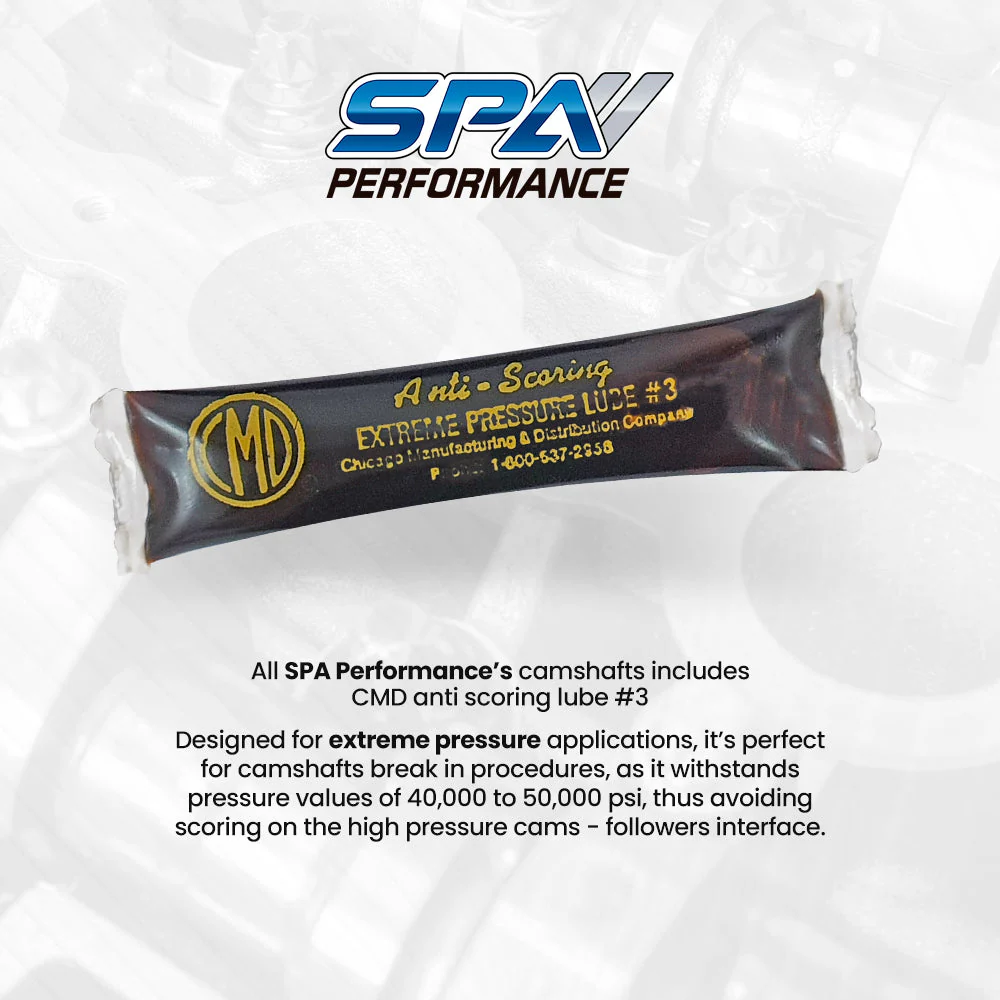

All SPA Performanceā€™s camshafts includes CMD anti scoring lube #3

Designed for extreme pressure applications, itā€™s perfect for camshafts break in procedures, as it withstands pressure values of 40,000 to 50,000 psi, thus avoiding scoring on the high pressure cams - followers interface.

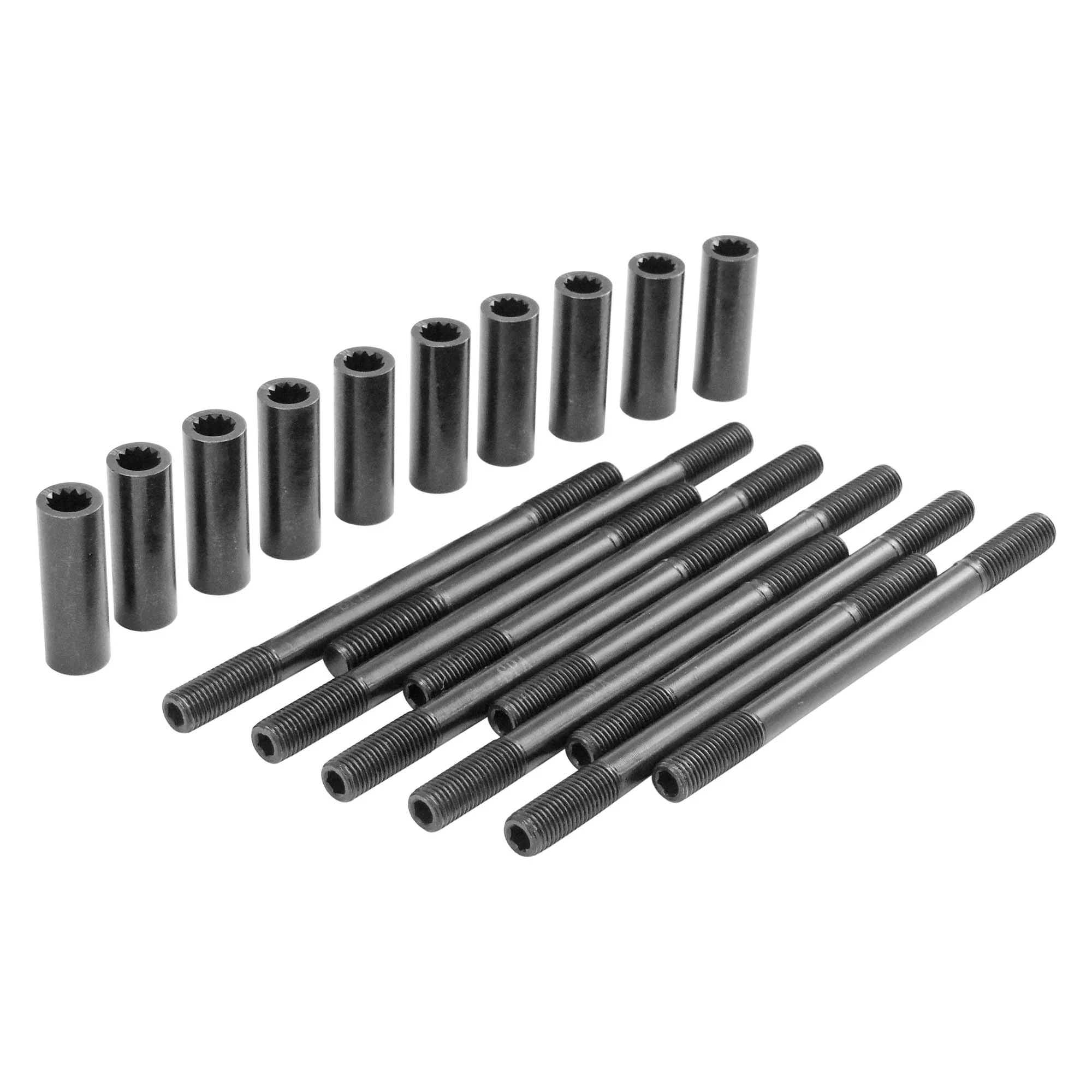

FORGED HEAD STUDS VW/AUDI 1.8 20V 137MM - SET OF 10 UNITS

Ā

  • VW/Audi cylinder head stud set for 1.8 20V Transverse Engines Head Stud Set.
    The set contains 10 Studs 137mm /Ā 10 special nuts
    The studs are for M10 x 1.5 threads, please confirm with your OEM bolts before purchase.
  • Maximum Torque - 72 ft/lb

    Ā

    Ā

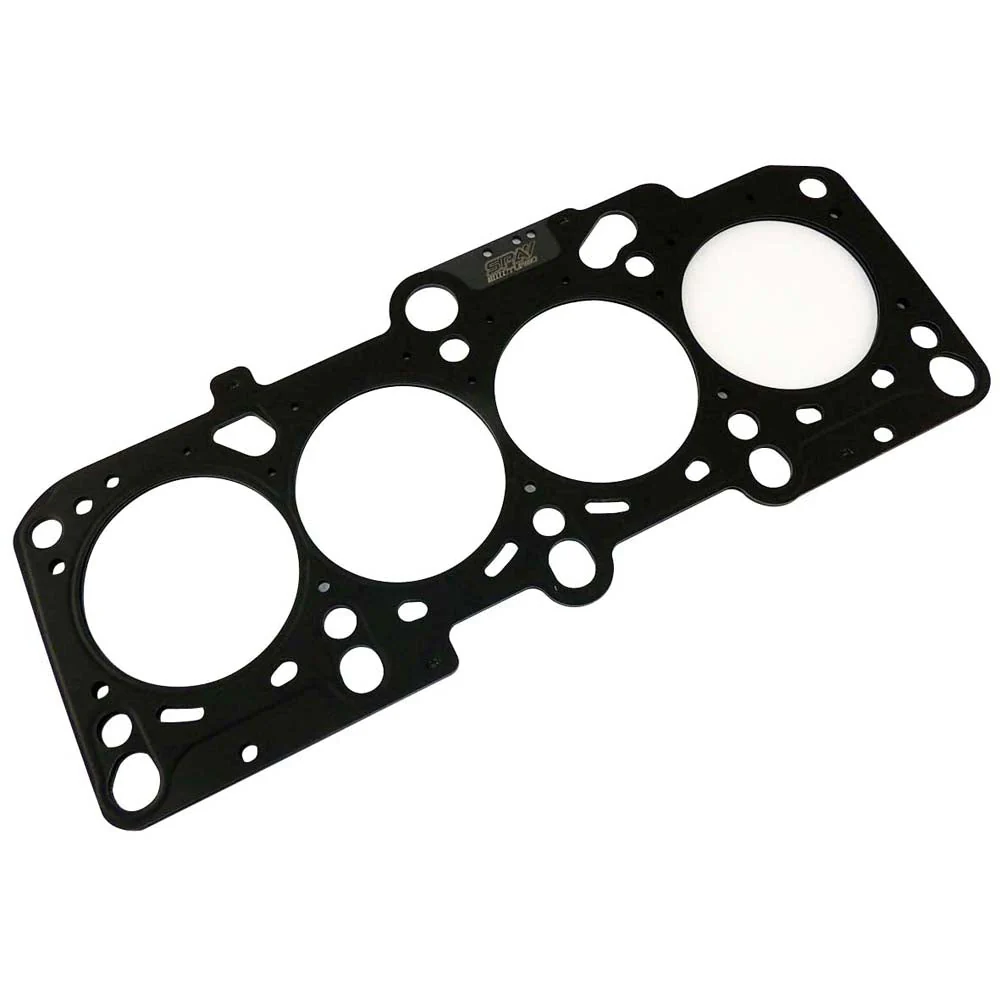

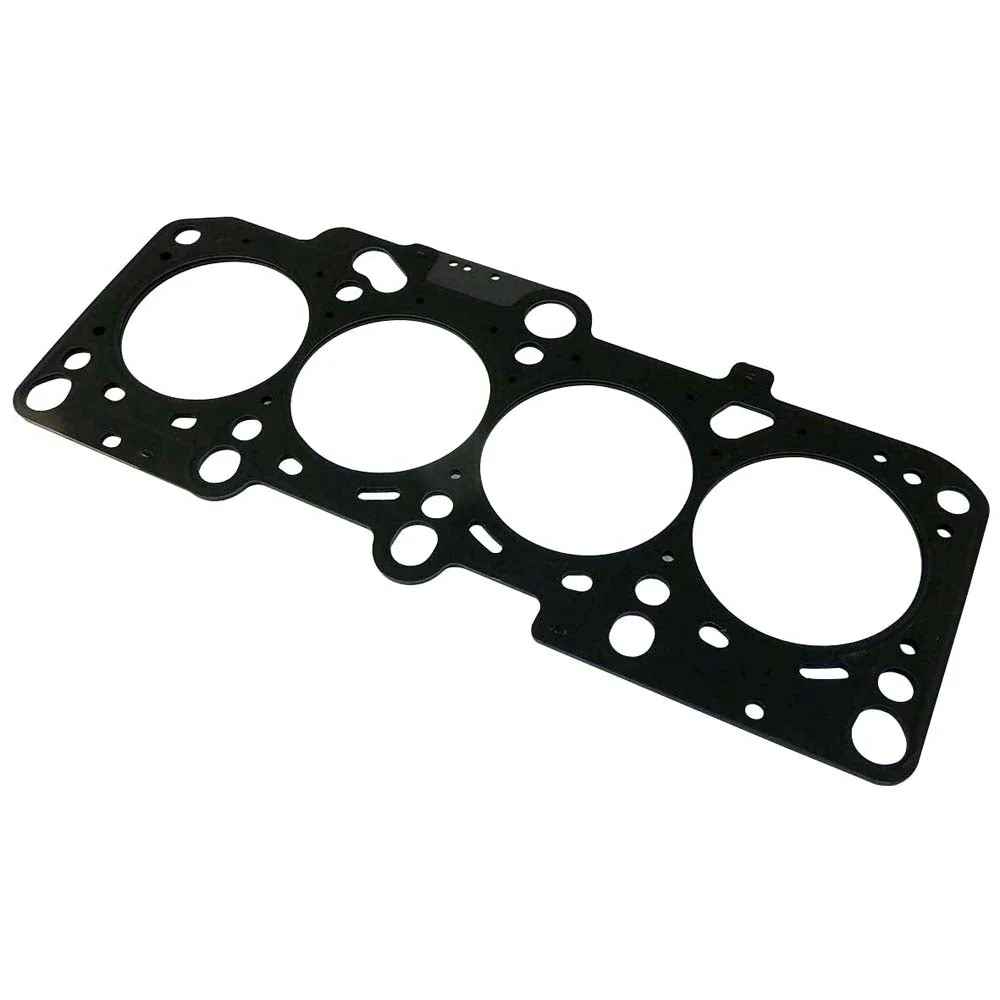

    VW 1.8L 20V 2.50mm decompression MLS head gasket


    • NEW Compression reduction VW 1.8L 20v.
    • Special cylinder head gasket for turbo conversion on the 1.8L 20V.
    • With this specialĀ Turbo multilayer metal cylinder head gasket.
    • The compression reduction is already integrated in the seal.
    • (Ground and coated).
    • Will accept pistons up to 83.00mm overbored sized, can be used with smaller bores with no problem too.
    • Total thickness: 2.50mm (0.098")
    • The new compression ratio: (depending on the engine variant, see the overview below).
    • Attention only for 1,8T with performance increase or planned cylinder head to the compensation!
    • This overview shows how the engine changes the compression ratios.You save yourself the purchase of 2 cylinder head gaskets and an intermediate plate!
    • Metal seals are characterized by a very long service life!
    • Comparable with OE numbers Comparable to manufacturer numbersĀ
    • 1.8T with basic compression rate 9.5: 1.
    • (z.B. AGU, AJH, APH, APP, AQJ,AQX, ARX, ARY, ARZ, AUG, AUQ, AUM, AVC, ADR, AWC, AWD, AWW, AYP, BBU, BEK, BFV, BE, BJX, BVP, VER, AEB, AJL, APH, APU, AVJ, AWT, BEX, BFB usw...
    • With our gasket compression rate will be 8.55:1Ā
    • 1.8T with basic compression rate 9: 1
    • (z.B. AMK, AMU, APX, APY, BAM)
    • With our gasket compression rate will be 8.15:1Ā
    • Comparable with OE numbers Comparable to manufacturer numbers
    • VW: 058103383K
    • VW:Ā 058103383M
    • VW:Ā 06A103338F
    • VW:Ā 06B103383B
    • Elring:Ā 366.670
