2.500" V-Band Assembly "Male/Female" - 304 Stainless - Quick-Release Clamp - 20mm Combined Flange Thickness
QUICK RELEASE STYLE V-BAND CLAMP — LEAK-FREE INTERLOCKING FLANGE DESIGN

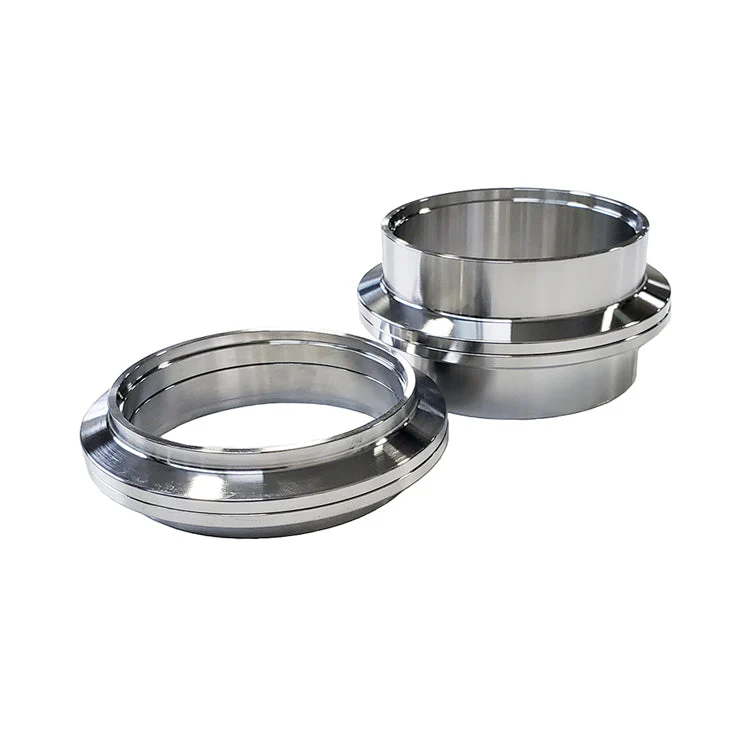

This Quick Release style V-Band Assembly features a set of ultra-low profile 304 Stainless Steel CNC machined Male/Female interlocking V-Band Flanges. With an overall combined flange thickness (both flanges stacked together) of only 20mm (0.788") these V-Band Assemblies work well in applications with limited space.
FEATURES:
- Ultra-low profile V-Band Flanges for applications with limited space
- Precision CNC Machined from 304 Stainless Steel
- Male/Female style Interlocking Flanges
- Counterbored to fit matching tube size material
- Removable & Replaceable T-Bolt Fastener
- Perfect for exhaust systems, turbo manifolds, and more!

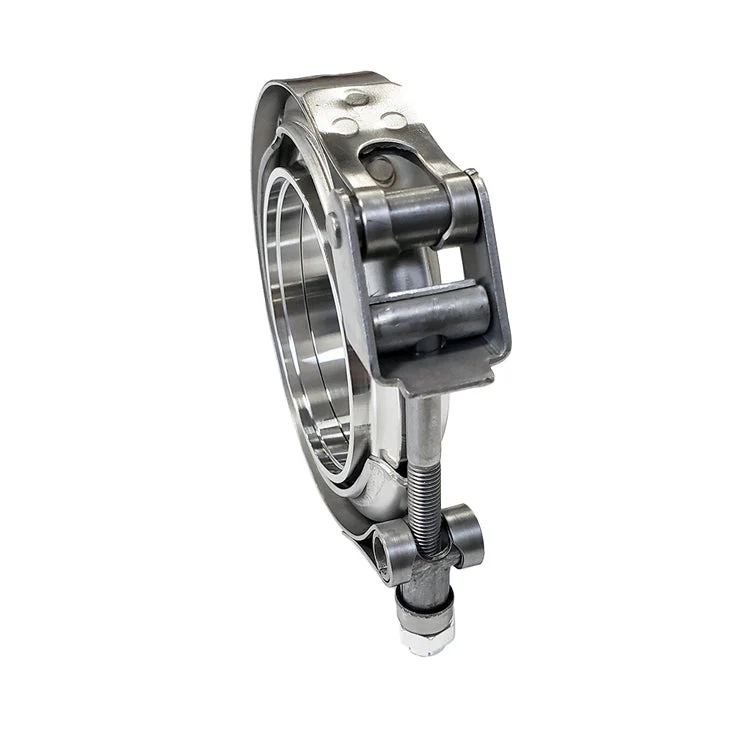

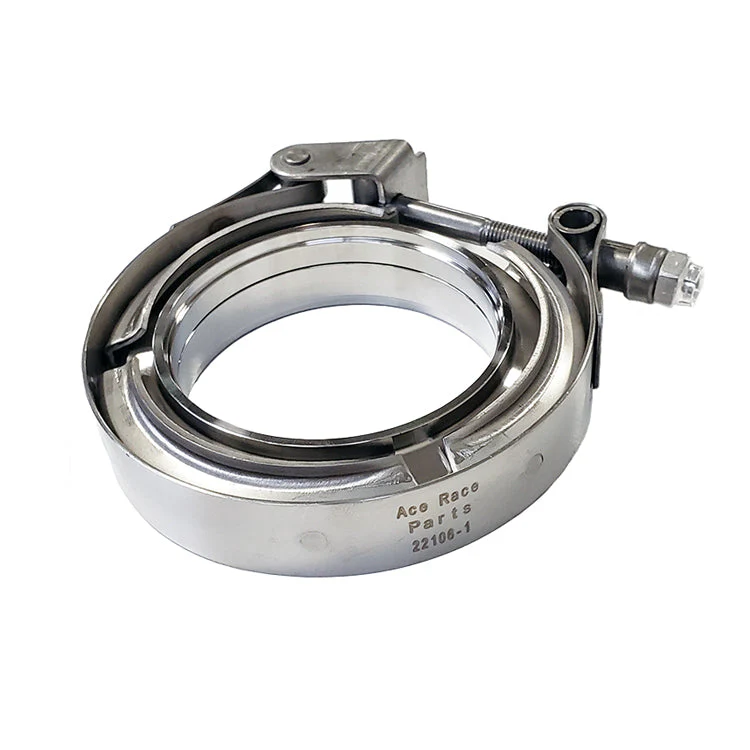

Ace Race Parts brand Quick-Release style V-Band Assemblies are precision CNC machined and feature a 304 Stainless Steel Quick Release style V-Band Clamp and a set of 304 Stainless Steel interlocking "Male/Female" V-Band Flanges. Our Quick Release style V-Band Clamps feature a quick-release latch and a replaceable T-Bolt section that allows for quick assembly and disassembly. For applications where frequent removal of the clamp is required we recommend using our Quick Release style V-Band Clamps and compatible V-Band Flanges.
Our V-Band Flanges utilize an interlocking flange design that ensures a leak-free seal without the need for a gasket and features a counterbore on the weld side of the flange that allows the matching tube size material to slip into the flange. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.
If you need assistance in finding a matching V-Band Clamp or Flange for an existing application please review our "How To Measure A V-Band Flange" information here: How to Measure a V-Band Flange.
